Pvc Coated Hexagonal Woven Wire Mesh For Rockfall Protection
Pvc Coated Hexagonal Woven Wire Mesh For Rockfall Protection
Gabion Mesh Description
Gabion net, also known as gabion cage or honeycomb mesh, is a kind of engineering material widely used in river management. This grid-like structure is made of high-strength, corrosion-resistant low carbon steel wire that is braided, welded or bundled for high strength and durability. It can be used for the reinforcement and protection of river banks to prevent the erosion and erosion of river water.
Gabion are made of hot dipped galvanized steel wire /heavy galvanized coating steel wire/ PVC coated wires, the mesh shape is hexagonal style. The gabion retaining wall are used idely in slope protection,mountain rock holding,gabion for river bank protection.
Gabion Mesh Specification
|
Specification Of Gabion Basket
|
|||||
|
Gabion size
(m)
|
Wire diameter
|
Mesh opening
|
Surface treatment
|
||
|
Mesh wire
(mm)
|
Selvage wire
(mm)
|
Tie wire
(mm)
|
|||
|
2×1×0.5
|
2.0
2.2
2.4
2.7
3.0
|
2.4
2.7
3.0
3.4
3.9
|
1.8
2.0
2.2
|
60 x 80mm
80 x 100mm
80 x 120mm
100 x 120mm
120 x 150mm
|
Galvanized
Galfan
PVC coated
PE coated
|
|
2×1×1.0
|
|||||
|
3×1×0.5
|
|||||
|
3×1×1.0
|
|||||
|
4×1×1.0
|
|||||
|
6×1×1.0
|
|||||
|
2×1×0.3(Mattress)
|
|||||
|
3×1×0.3(Mattress)
|
|||||
|
All sizes can customized according to your request
|
|||||

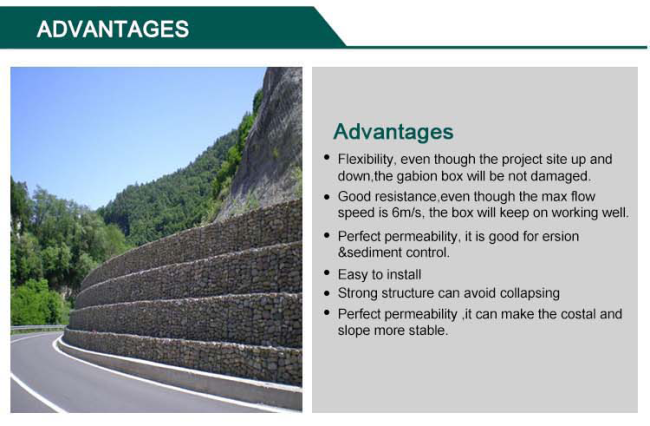

Gabion Mesh Advabtages
Gabion Mesh Application
Gabion basket can be used for slope support, foundation pit support, shotcrete on the surface of mountains and stones, slope vegetation (greening), railway and highway isolation fences, and can also be made into cage net pads to prevent scouring and protect rivers, dams and seawalls. Gabion net is used to intercept reservoirs and rivers.
1.Retaining walls and soil reinforcement;
4.Landscape and architecture; so on

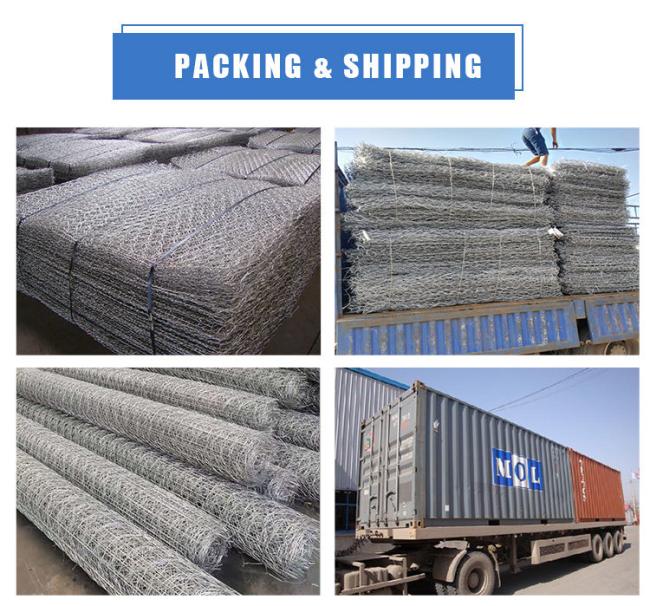

Gabion Mesh Package
1.With plastic weaving bags outside
