0.7MPa Automatic Edge Banding Machine Woodworking Edge Bander High Speed 380V 50Hz

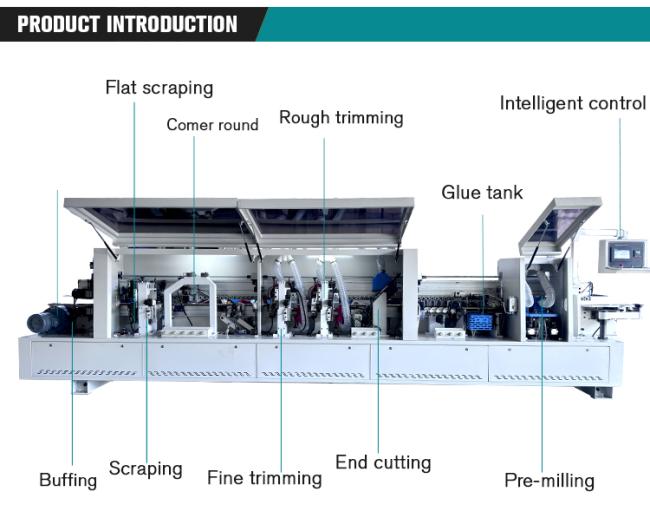

The BHM 468YJ Edge Banding Machine is a high-performance model designed for precision woodworking and furniture production. It integrates multiple essential processing functions, including buffing, scraping, tracking trimming, fine trimming, rough trimming, end cutting, sealing belt cutting, trimming, and belt conveying, delivering consistent and flawless edge finishes for a wide range of panel materials.
One of the standout features of the BHM 468YJ is its Italian-patented tracking trimming technology, which enables four different profiling effects. This innovative system ensures that every edge is shaped and finished with perfect tactile smoothness and visual precision, achieving the highest standards of modern furniture design.
The fine and rough trimming units use high-speed motors equipped with durable alloy cutters to remove excess material with stability and accuracy. The scraping function eliminates glue residue and micro imperfections, leaving a smooth, clean surface. Meanwhile, the buffing unit polishes the edges to a natural gloss, enhancing both the beauty and durability of the final product.
In terms of usability, the BHM 468YJ is built for efficiency, precision, and operator comfort. Its control system allows easy adjustments for edge thickness, speed, and trimming depth, ensuring flexible use for different materials such as PVC, ABS, melamine, veneer, and acrylic.

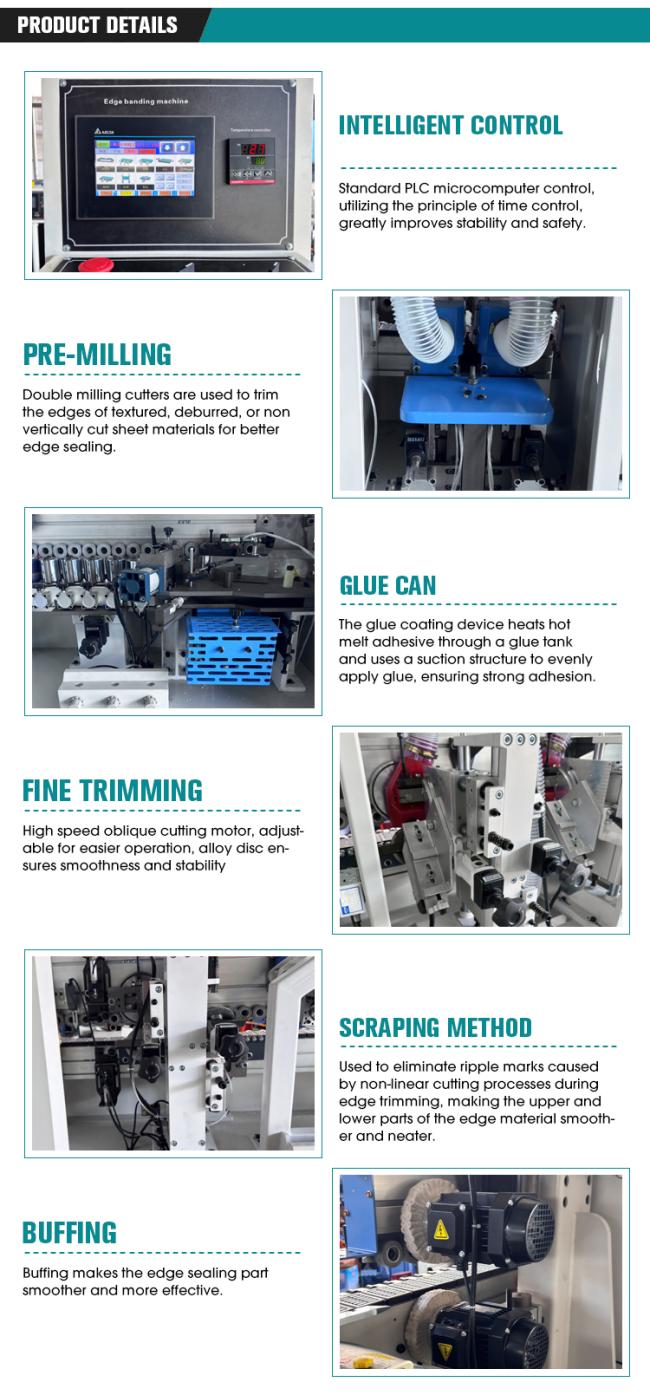

Standard PLC microcomputer control, utilizing the principle of time control, greatly improves stability and safety.
2.Pre-milling
Double milling cutters are used to trim the edges of textured, deburred, or non vertically cut sheet materials for better edge sealing.
3.Glue can
The glue coating device heats hot melt adhesive through a glue tank and uses a suction structure to evenly apply glue, ensuring strong adhesion.
4.Fine trimming
High speed oblique cutting motor, adjustable for easier operation, alloy disc ensures smoothness and stability
5.Scraping method
Used to eliminate ripple marks caused by non-linear cutting processes during edge trimming, making the upper and lower parts of the edge material smoother and neater.
6.Buffing
Buffing makes the edge sealing part smoother and more effective.
Advantages
-
Integrated processing system with multiple automatic functions
-
Italian patented tracking trimming for four advanced profiling effects
-
High-speed precision motors ensuring smooth and stable operation
-
Superior edge finish with perfect smoothness and strong adhesion
-
User-friendly control panel with accurate temperature and speed settings
-
Durable structure, suitable for continuous industrial production
Applications
The BHM 468YJ is widely used in furniture manufacturing, cabinet production, interior decoration, and custom woodworking. It is ideal for finishing the edges of MDF, chipboard, plywood, and laminated panels, ensuring that each piece meets the high demands of modern furniture aesthetics and durability.
This machine is the perfect solution for manufacturers seeking premium edge quality, production efficiency, and international-level craftsmanship in one integrated system.
