1.5mm Diamond Wire Mesh 304 316 316L Stainless Steel Diamond Mesh
Price:
USD8-26/M2
MOQ:
10 square meters
Delivery Time:
within 7 work days
Brand:
HUIHAO CUSTOM
Product Description
1.5mm Diamond Stainless Steel Wire Rope Mesh Installed Onto Balustrade
Stainless Steel Wire Rope Mesh Description
Stainless steel wire rope mesh, also known as stainless steel cable mesh, is constructed from high-quality stainless steel cables and ferrules. The manufacturing process involves threading ferrules onto cables and pressing them with specialized molds, resulting in a product with excellent strength, flexibility, and aesthetic appeal. Available in various cable diameters and mesh openings to meet specific requirements.
Product Specifications
- Product Name: Stainless Steel Wire Rope Mesh
- Material: SS 304, 304L, 316, 316L wire ropes and stainless steel ferrules
- Features: Lightweight, flexible, high strength, excellent transparency, and durability with over 30 years service life
- Applications: Zoo enclosures, animal habitats, bird aviaries, handrail infills, safety nets, and garden fencing
Technical Specifications
| Cable Diameter | Mesh Opening Size | Nominal Break |
|---|---|---|
| 1/8 inch (3.2mm) | 4x4 inch (102x102mm) | 1600 lbs |
| 1/8 inch (3.2mm) | 3x3 inch (76x76mm) | 1600 lbs |
| 1/8 inch (3.2mm) | 2x2 inch (51x51mm) | 1600 lbs |
| 3/32 inch (2.4mm) | 4x4 inch (102x102mm) | 920 lbs |
| 3/32 inch (2.4mm) | 3x3 inch (76x76mm) | 920 lbs |
| 3/32 inch (2.4mm) | 2x2 inch (51x51mm) | 920 lbs |
| 5/64 inch (2.0mm) | 3x3 inch (76x76mm) | 676 lbs |
| 5/64 inch (2.0mm) | 2x2 inch (51x51mm) | 676 lbs |
| 5/64 inch (2.0mm) | 1-1/2x1-1/2 inch (38x38mm) | 676 lbs |
| 1/16 inch (1.6mm) | 3x3 inch (76x76mm) | 480 lbs |
| 1/16 inch (1.6mm) | 2x2 inch (51x51mm) | 480 lbs |
| 1/16 inch (1.6mm) | 1-1/2x1-1/2 inch (38x38mm) | 480 lbs |
| 1/16 inch (1.6mm) | 1x1 inch (25.4x25.4mm) | 480 lbs |
| 3/64 inch (1.2mm) | 1-1/2x1-1/2 inch (38x38mm) | 270 lbs |
| 3/64 inch (1.2mm) | 1x1 inch (25.4x25.4mm) | 270 lbs |
| 3/64 inch (1.2mm) | 4/5x4/5 inch (20x20mm) | 270 lbs |
Key Advantages
- Exceptional corrosion resistance with 30+ year lifespan
- Flexible and elastic construction
- Lightweight yet stable
- Excellent visibility and transparency
- Environmentally friendly material
- Attractive modern appearance
Common Applications
- Balustrade infill panels
- Safety and fall protection nets
- Perimeter security fencing
- Architectural facades
- Vertical garden structures
- Decorative design elements
Installation Process
- Measure and prepare the steel frame dimensions
- Secure mesh corners to frame with temporary cable ties
- Attach mesh sides to frame with additional cable ties
- Thread perimeter rope through ferrules in consistent direction
- Remove all temporary cable ties after securing rope
- Trim excess cable ends with cable cutters

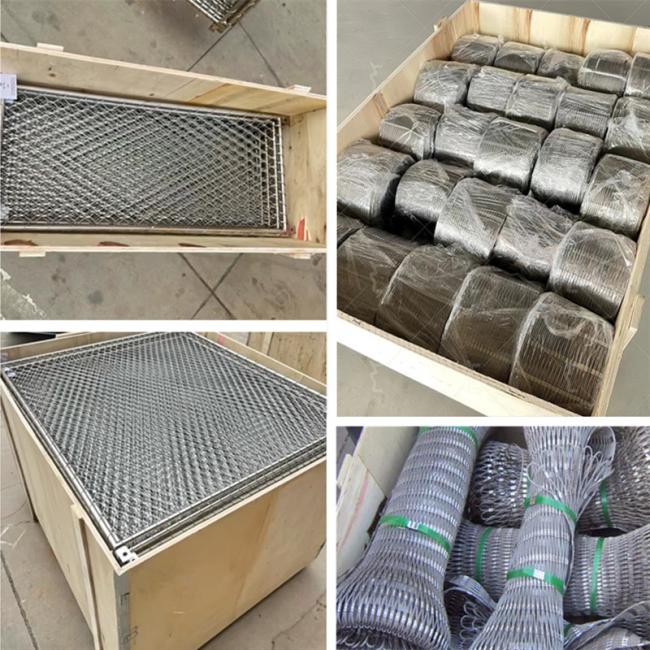

Packaging Options
- Rolled mesh wrapped in plastic film within wooden cases
- Pre-assembled mesh with frames in protective wooden crates
- Custom packaging solutions available upon request
