Reusable Knotted Stainless Steel Wire Rope Mesh Netting For Zoo Safety Net
Price:
USD8-26/M2
MOQ:
10 square meters
Delivery Time:
within 15 work days
Product Description
Reusable Knotted Stainless Steel Wire Rope Mesh Netting For Zoo Safety Net
Reusable Stainless Steel Knotted Wire Rope Mesh Netting for Zoo Safety Net
Knotted Stainless Steel Wire Mesh Netting is also called stainless steel inter-woven netting or Handwoven Rope Mesh. Each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter, using a specialized weaving technique. With lightweight, high strength and durable design, the rope netting allows for a workable lifetime of more than 30 years. Widely used as zoo mesh and zoo netting.
Quick Details
- Type: woven type
- Material: stainless steel
- Rope wire diameter: 1.0mm to 4.0mm etc.
- Rope construction: 7 x7 and 7 x 19
Specification of Knotted Wire Rope Mesh Netting
| Cable Diameter | Mesh Opening Size (W×H) | ||
|---|---|---|---|
| inch | mm | inch | mm |
| 1/8 | 3.2 | 2 x3.46 | 51 x88.3 |
| 3/32 | 2.4 | 2x3.46 | 51 x 88.3 |
| 5/64 | 2.0 | 2.4x 4.16 | 60 x 104 |
| 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 |
| 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 |
| 1/16 | 1.6 | 2x 3.46 | 51 x 88.3 |
| 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 |
| 1/16 | 1.6 | 1.2x2.08 | 30 x 52 |
| 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 |
| 3/64 | 1.2 | 1-1/2x2.6 | 38 x 65.8 |
| 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 |
| 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 |
| 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 |
304 Wire Rope Mesh Netting
Accessories of Knotted Wire Rope Mesh Netting
We also provide various parts, including stainless steel wire rope, buckle, sleeve, cable eye ends, suspension rope clamps, thread ends, rod articulation and wall mount.
Applications
Transparent and flexible stainless steel rope mesh system is a professional solution for protection and safety applications, consisting of stainless steel wire ropes and steel structural supports. This system can be configured in a variety of ways by using different wire rope diameters and mesh aperture sizes to meet the needs of different projects. It is often used in a wide range of applications such as buildings, bridges and helicopter landing platforms to provide safety and protection measures.

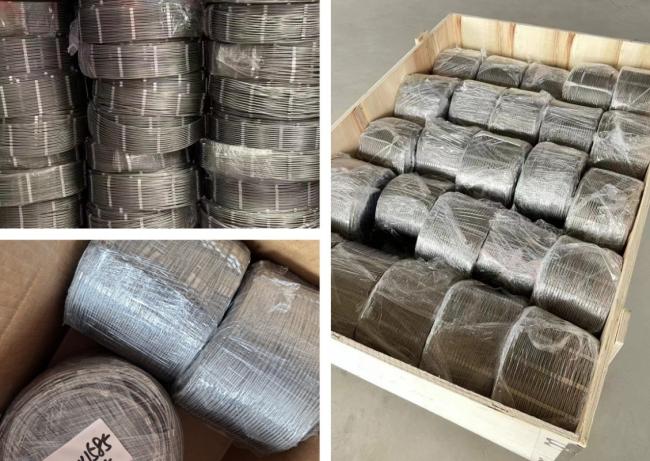

Packaging
- The rope mesh without frame would packed in rolls with plastic film, then put into wooden case
- The rope mesh with frame would be fastened on pallets
