Stainless Steel Knitted Mesh SS309 SS304 Wire Mesh Manufacturers For Insulating Blankets
Price:
contact with me to get lowest price
MOQ:
1 roll
Delivery Time:
within 7 work days
Product Description
SS304 Stainless Steel Knitted Wire Mesh For Insulating Blankets
Quick Details of SS Knitted Mesh
The common wire diameters of knitted mesh used for insulating blankets are .008″, .0095″, and .011″. For applications requiring greater strength due to frequent removal (such as turbines or stress relieving blankets), .011" diameter is recommended. For less frequent removal, .008″ is sufficient. In high-temperature environments like furnaces, the .011″ diameter helps minimize weakening from oxidation or furnace atmosphere conditions.
The standard density is 60 openings per inch, providing an optimal balance between economy and performance. A 76 density option is also available. Knitted mesh is tubular (double-ply) in construction and typically cut open by the user for installation as single ply.
Available widths range from 1″ to 43″ (two-ply stocking), with 12″, 18″, 24″, 30″, and 42″ being the most commonly used sizes.
Description of SS Knitted Mesh
SS knitted mesh can be fabricated from various ductile metals, most commonly 304SS. For corrosive environments, Monel and 309SS are also available. Metal-synthetic composite versions can be produced when required.
Specification of SS Knitted Mesh
| Alloy | Temperature Range | Wire Diameter | Per Sq Ft 1-Ply Flat | Per Lb 2-Ply Flat |
|---|---|---|---|---|
| SS304 | 900°F Continuous 1200°F Intermittent | 0.011" | 13 | 6.5 |
| SS304 | 900°F Continuous 1200°F Intermittent | 17 | 8.5 | |
| SS304 | 900°F Continuous 1200°F Intermittent | 24 | 12 | |
| SS304 | 900°F Continuous 1200°F Intermittent | 39 | 19.5 | |
| SS309 | 1650°F | |||
| SS310 | 1850°F | |||
| SS321 | 1200°F Continuous 1500°F Intermittent | 13 | 6.5 | |
| SS321 | 1200°F Continuous 1500°F Intermittent | 17 | 8.5 | |
| INCONEL600/601 | 2000°F | 11.8 | 5.9 | |
| INCONEL600/601 | 2000°F | 21.8 | 10.9 | |
| Monel 400 | 1000°F | 11.2 | 5.6 |

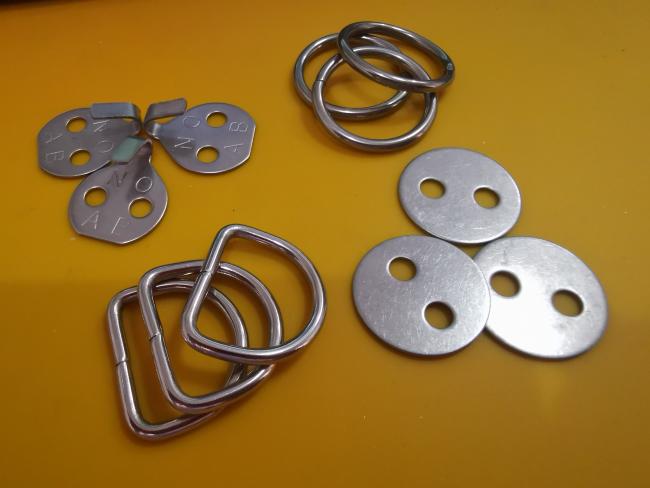

Installation Parts for SS Knitted Mesh
- Lacing anchor
- Quilting pin
- Self locking washer
- Dome cap washer
- Lacing hook
- Lacing washers
