Marine Pad Insulation Wire Mesh In SS316 WIRE 0.203mm Knitted Metal Mesh
Price:
Contact me to get lowest price
MOQ:
1 ROLLS
Delivery Time:
within 7 work days
Product Description
Marine Pad Insulation Mesh In SS316 WIRE 0.203mm Knitted Metal Mesh
Product Description
Custom-designed reusable and removable insulation blankets and pads provide optimal thermal and sound performance. Our solutions feature close contour fitting for neat appearance and maximum efficiency, capable of handling temperatures up to 2300°F.
Key Benefits
Our insulation solutions help control utility costs while enhancing safety, reliability, and productivity. By reducing heat loss, these removable blankets deliver significant energy savings compared to conventional insulation methods.
Specifications
| Alloy | Temperature Range °F | Wire Diameter | Yield Ft | Density (lb.) | Width |
|---|---|---|---|---|---|
| 430 S.S. | Up to 1000 | .008" | 60 | 26 | 1" - 43" |
| 430 S.S. | Up to 1000 | .011" | 60 | 13 | 1" - 43" |
| 304 S.S. | Up to 1200 | .008" | 60 | 24 | 1" - 43" |
| 304 S.S. | Up to 1200 | .0095" | 60 | 18 | 1" - 43" |
| 304 S.S. | Up to 1200 | .011" | 60 | 13 | 1" - 43" |
| Inconel | Up to 2300 | .008" | 60 | 22 | 1" - 43" |
| Inconel | Up to 2300 | .011" | 60 | 12 | 1" - 43" |
Key Features
- Flexibility: Knitted loop structure provides two-way strength while maintaining flexibility for irregular curves and complex surfaces.
- Strength: Metallic construction offers superior durability against vibration, handling, and penetration, lasting longer than the insulation itself.
- Cost-Effective: Competitively priced against other insulation coverings in 600°-1200°F range, with Inconel alloy being the only viable option above 1200°F.
- Easy Fabrication: Can be cut with scissors and typically requires no sewing, reducing labor costs and specialized skills.

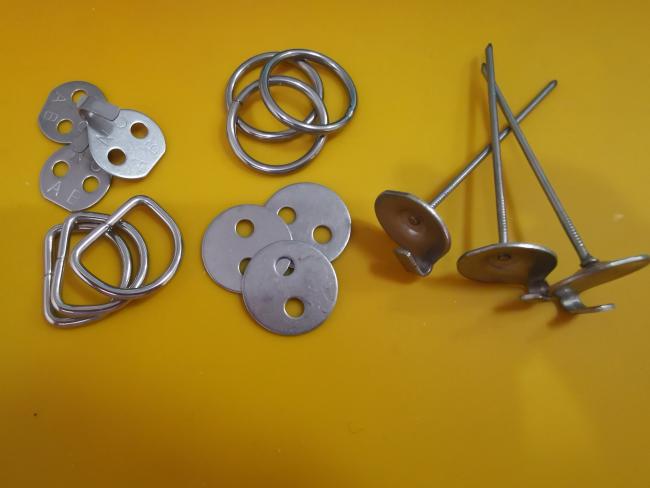

Fixing Components
- Lacing Anchors: Stainless steel material, 14 ga pin, available in lengths from 62mm to 250mm
- Lacing Hook and Washer: Stainless steel, 1mm thickness, 22mm hook with 25mm washer
- Self-Locking Washer/Dome: Stainless steel, 25mm washer with 22mm dome cap washer
