AISI316L Stainless Steel Ultra Fine Wire Yarn 0.04mm Corrosion Resistant
- Grade: AISI316L
- Wire diameter: 0.04mm (0.00157 inch)
- Micron size: 40 microns
- Diameter tolerance: ±0.001mm
- Tensile Strength (N/mm²): 686-980
- Elongation (%): 20-30%
- Weight: 250-600g or customized (0.55-1.32LB)
- Temper: Annealed and Soft
Our Stainless Steel Ultra Fine Wire Yarn represents the pinnacle of durability, precision, and versatility. Manufactured from high-grade stainless steel (AISI 302, 321, 304, 316, 316L - typically made-to-order), this wire delivers exceptional strength and resilience for diverse industrial applications.
Characterized by its ultra-small diameter (typically less than 0.08mm), our wire yarn is renowned for its strength, durability, and corrosion resistance. Canaan Metal specializes in producing ultra-thin diameters ranging from 0.025-0.05mm - approximately half the thickness of a human hair.
Available in various forms including soft wire, hard wire, and welding wire, this product finds extensive applications in:
- Textile manufacturing
- Industrial filters
- Medical equipment
- Decorative fabrics
- Jewelry production
- Wire ropes and mesh
- Specialty springs
Key characteristics include superior corrosion resistance, high temperature tolerance, and exceptional tensile strength.
Our Stainless Steel Ultra Fine Wire Yarn is produced using advanced techniques including:
- Traditional drawing and cutting methods
- Melting and drawing processes
- Cluster drawing technology
- Specialized scraping and cutting methods
Current production capabilities allow for fiber diameters as small as 0.025mm with continuous lengths reaching hundreds of meters.

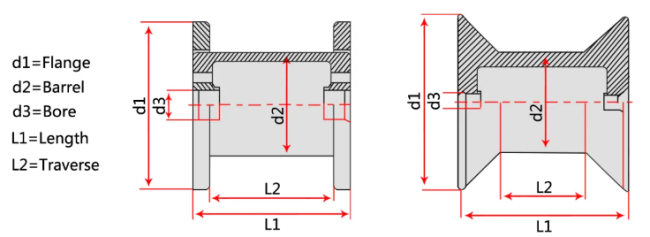

| Type | d1 | d2 | d3 | L1 | L2 | Capacity approx. (Kgs) |
|---|---|---|---|---|---|---|
| HK63/45/16 | 63.0 | 44.0 | 16.0 | 85.0 | 60.0 | 0.30 |
| HK76/45/16 | 76.0 | 50.0 | 16.0 | 95.0 | 65.0 | 0.60 |
| HK80/45/16 | 80.0 | 55.0 | 16.0 | 100.0 | 70.0 | 08.0 |
| HK80/45/20 | 80.0 | 55.0 | 20.0 | 100.0 | 70.0 | 08.0 |
| HK100/59-160 | 100.0 | 75.0 | 59.0 | 160.0 | 91.0 | 2.00 |
| HKV100/45/16 | 100.0 | 56.0 | 16.0 | 100.0 | 49.0 | 1.20 |
| HK115 | 115.0 | 90.0 | 25.0 | 138.0 | 75.0 | 2.00 |
| HKV125/45/16 | 125.0 | 71.0 | 16.0 | 125.0 | 65.0 | 3.00 |
| HK130/82-176 | 130.0 | 99.0 | 82.0 | 176.0 | 91.0 | 3.00 |
| HKV160/45/22 | 160.0 | 90.0 | 22.0 | 160.0 | 85.0 | 7.50 |
