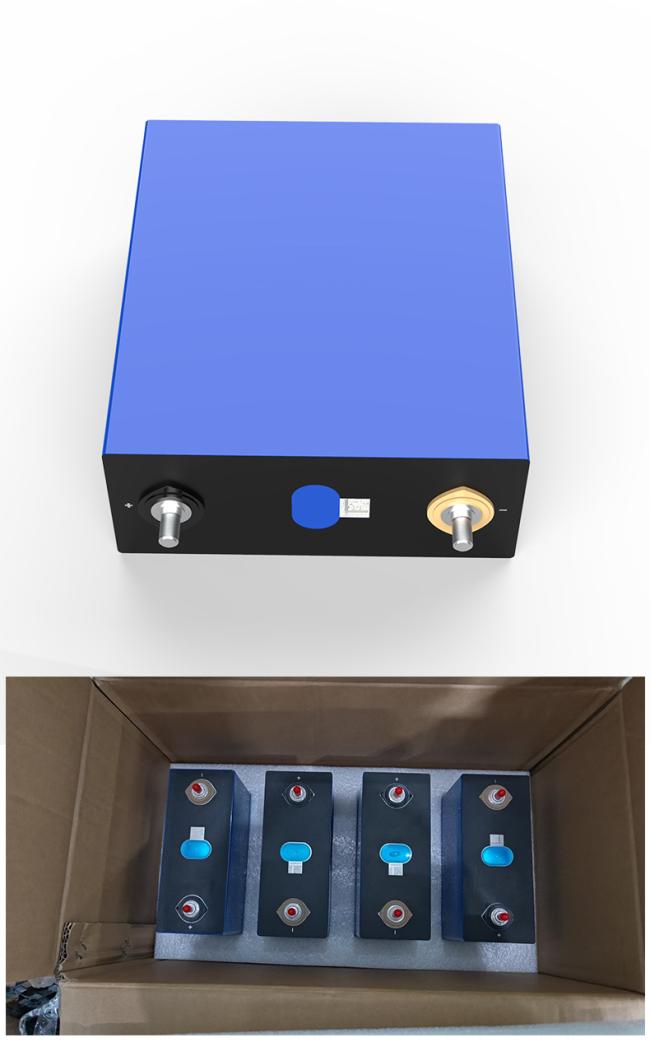

Rechargeable 280Ah Prismatic LFP Cell Lithium Ion With Aluminum Shell For Solar Energy Storage
MOQ:
100
Delivery Time:
15-18work days
Product Description
Rechargeable 280Ah Prismatic LFP Cell Lithium Ion Batteries with Aluminum Shell
Fundamental Parameters
| Items | Standards | Remarks |
|---|---|---|
| Min. Capacity | 280 Ah | 0.5C 25±2℃ 2.5-3.65V |
| Min. Energy | 896Wh | 0.5C 25±2℃ 2.5-3.65V |
| Initial IR | ≤0.25 mΩ | AC 1kHz 40%SOC |
| Nominal Voltage | 3.2 V | 0.5C 2.5~3.65V |
| Weight | 5420 g±300 g | |
| Charging Cut-off Voltage Umax | 3.65 V | |
| Discharging Cut-off Voltage Umin | 2.5V T >0℃ 2.0V T ≤0℃ |
|
| Standard Charging Current | 140A | 0.5C |
| Standard Discharging Current | 140A | 0.5C |
| 25℃ Standard Cycle | 6000 Cycles | Applying 300kgf±20kgf pre-pressure 0.5C 2.5~3.65V Capacity retention rate≥80% |
| 45℃ Standard Cycle | 2500 Cycles | |
| Operation Temperature | Charging: 0~60℃ Discharging: -30~60℃ |
|
| Storage Temperature | 1 year: 0~35℃ 3 months: 0~35℃ 1 month: -20~45℃ |
|
| Delivery SOC State SOC | ||
| Welding Parameter of Al Busbar | Laser Welding Depth: ≤2.5 mm Max Pressure Force on Terminals: 700 N Max Torque Force on Terminals: 6 N m Max Temperature on Terminals: 130℃ |
Max force in longitudinal direction, no deformation Max torsion, non-loosen The maximum temperature the terminals can withstand, at which the plastic pads will not deform |
Dimension and Weight
| No. | Items | Standards | Testing Methods |
|---|---|---|---|
| 1 | Dimension Terminal Height H: 207.2±0.5 mm Can-top Height h: 204.6±0.5 mm Length L: 173.7±0.5 mm Thickness T: 72.0±1.0 mm |
3.8.1 | |
| 2 | Weight (Including blue film, can-top film) | 5420 g±300 g | 3.8.2 |
Safety Performance Parameters
| No. | Items | Standards | Testing Methods |
|---|---|---|---|
| 1 | Over Charge | No fire, No explosion | 3.8.4.1 |
| 2 | Over Discharge | No fire, No explosion | 3.8.4.2 |
| 3 | External Short-circuit | No fire, No explosion | 3.8.4.3 |
| 4 | Extrusion Test | No fire, No explosion | 3.8.4.4 |
| 5 | Drop Test | No fire, No explosion | 3.8.4.5 |
| 6 | Low Pressure | No fire, No explosion, No leakage | 3.8.4.6 |
| 7 | Heating | No fire, No explosion | 3.8.4.7 |
| 8 | Thermal Runaway | No fire, No explosion | 3.8.4.8 |
