High Efficiency 24V DC Electric Coolant Pump for Hybrid Bus and Engineering Vehicles with a 250W Rated Power
Price:
Negotiation
MOQ:
1
Delivery Time:
5-8 work days
Brand:
Bextreme Shell
Product Description
High Efficiency Electric Coolant Pump 24V DC Input for Hybrid Bus & Engineering Vehicles
Pump Major Parameters
| Parameter | Specification |
|---|---|
| Model No. | OWP-BL43-200 |
| Power Input | 24VDC (18-32VDC) |
| Rated Power | 250W |
| Rated Flow Rate | 2800L/H @ H=16M |
| Max Flow | 4800L/H |
| Max Lift Head | 20M |
| Medium | Glycol (50-60%)+water, dielectric oil, Electronic fluorinated solution |
| Medium Temperature | -40℃ to +85℃ (-40°F to +185°F) |
| Outlet Diameter | 38mm (1.5inch) |
| Speed Regulation | No (optional) |
| Fault Feedback Signal | No (optional) |
| IP Grade | IP67 |
| Noise Control | ≤60dB |
| Service Life | ＞20,000 hours |
| Weight | 2200g |
System Pressure
-0.5-4 Bar (100℃/212°F). The service life is more than 20,000 hours based on the rated voltage and 36℃ (86°F) ambient temperature.
Temperature Parameters
- Medium liquid temperature: -40℃ to +85℃ (-40°F to +185°F)
- Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%
- Storage temperature: -40℃ to +70℃ (-40°F to +158°F) (up to 100℃, but it will shorten the service life)

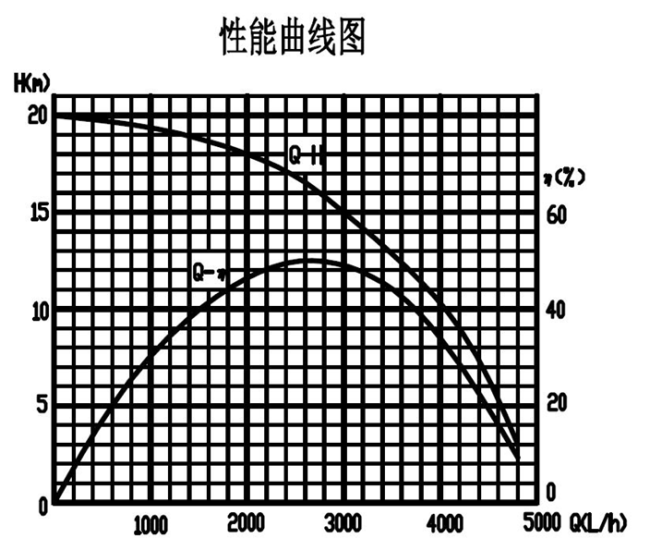

Performance Curve
Pump Advantages

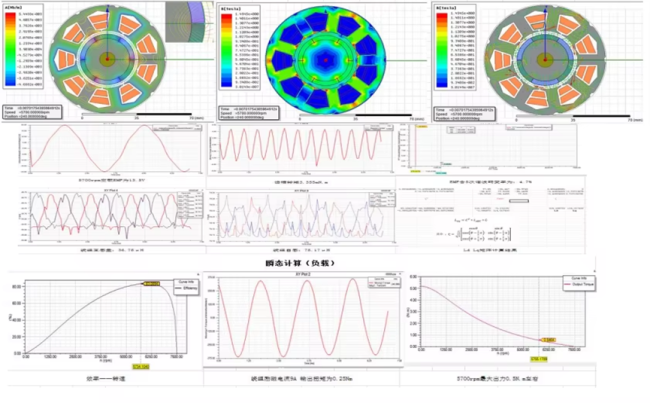

- Professional electromagnetic theory design verification makes our pump motor 3-5% higher efficiency than competitors

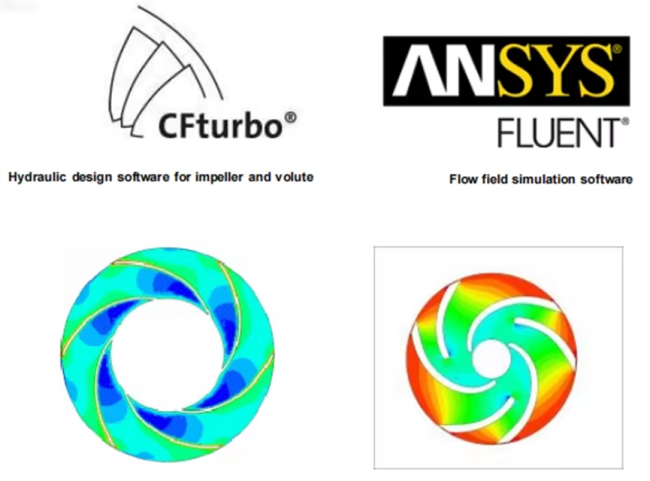

- Simulation calculation of hydraulic design by professional software makes our impeller and volute reach the best match for higher hydraulic efficiency
- Automotive grade electronic components make our pump withstand extreme harsh operating environments
Our clients come from 36 countries with high reputation in their fields

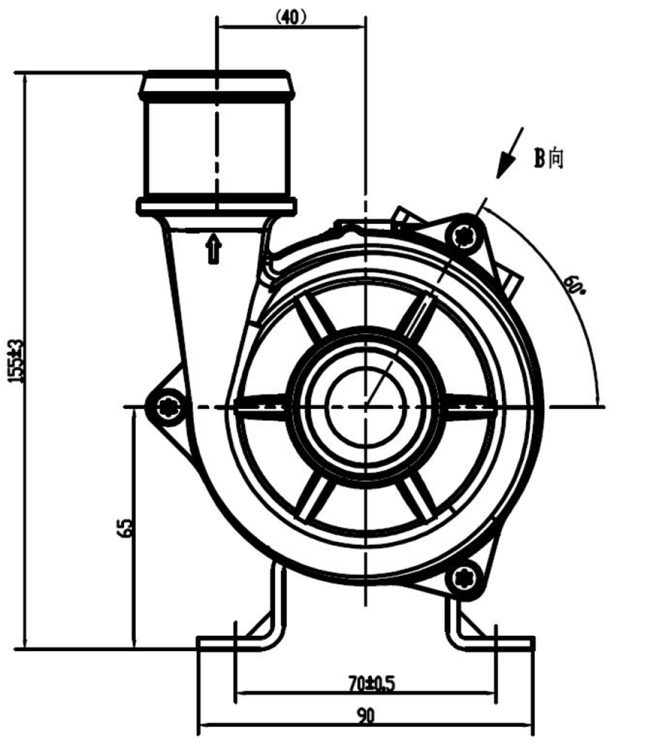

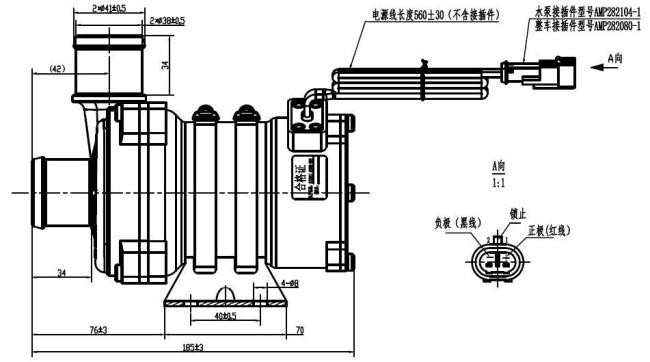

Pump Overall Size
