24VDC High Efficiency BLDC Water Pump for Electric Engineering Vehicles' Thermal Management System
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 work days
Brand:
Bextreme Shell
Product Description
24VDC High Efficiency BLDC Water Pump for Electric Engineering Vehicles' Thermal Management System
The OWP-BL43-440C is a high-performance brushless DC (BLDC) pump engineered for efficient liquid circulation in demanding thermal management scenarios. Designed with a single-stage centrifugal structure and magnetic force transmission (shield pump design), its working principle revolves around converting electrical energy into hydraulic energy: the high-efficiency BLDC motor drives the impeller via magnetic coupling, generating centrifugal force to accelerate the medium (e.g., glycol-water mixtures, dielectric oil) and maintain stable flow--eliminating leakage risks while ensuring reliable operation.
Key Specifications
| Parameter | Details |
|---|---|
| Model Number | OWP-BL43-440C |
| Power Input | 24VDC (18-32VDC) |
| Rated Power | 240W |
| Flow Rate | 2400L/H (rated, @ 17M head); 5000L/H (max) |
| Max Lift Head | 20M |
| Medium Compatibility | Glycol (50-60%)+water, dielectric oil, electronic fluorinated solution |
| Temperature Range | -40℃ to +85℃ (-40°F to +185°F) (medium/ambient, long-term); -40℃ to +70℃ (-40°F to +158°F) (storage) |
| Outlet Diameter | 50.5mm (Flange) |
| Protection Ratings | IP67 (waterproof per EN60529); reverse polarity, dry running, over-voltage/current/temperature/load protection |
| Noise Level | ≤60dB |
| Service Life | ＞20,000 hours (rated voltage, 36℃/86°F ambient) |
| Weight | 2200g |
| Connector Model | AMP282106-1 (matched plug: AMP282088-1) |
Core Applications
- Data Centers & Computing: Liquid cooling for high-performance servers (AI training, HPC), high-density blade/storage servers, all-flash arrays (AFA), supercomputers, and immersion cooling systems for large-scale GPUs.
- Electric Vehicles (EVs) & E-Mobility: EV motor/controller cooling, battery thermal management (BMS), turbocharger intercooler circulation, and coolant circulation for electric trucks.
- Renewable Energy & Storage: Battery energy storage (BESS) cooling, fuel cell cooling, and high-power EV charging station thermal management.
- Industrial & Telecom: Industrial cooling systems, communication base station cooling, liquid-cooled supercharger EWP, and electric insulating oil boosting.
Competitive Advantages
- Reliability & Durability: Magnetic transmission prevents leaks; IP67 waterproofing and wide -40℃ to +85℃ temperature range suit harsh environments.
- Energy Efficiency: High-efficiency BLDC motor reduces power consumption, with a ＞20,000-hour service life cutting maintenance costs.
- Smart Control: Supports speed regulation and fault feedback signals, enabling precise flow adjustment for dynamic cooling needs.
- Robust Protection: Integrated safeguards (dry running, over-voltage, over-temperature) minimize downtime and extend component life.
Target Markets
The OWP-BL43-440C targets global markets including data center infrastructure, EV manufacturing, renewable energy storage, industrial cooling, and telecom equipment. It meets the growing demand for energy-efficient, high-reliability thermal management solutions in sectors prioritizing sustainability and performance.

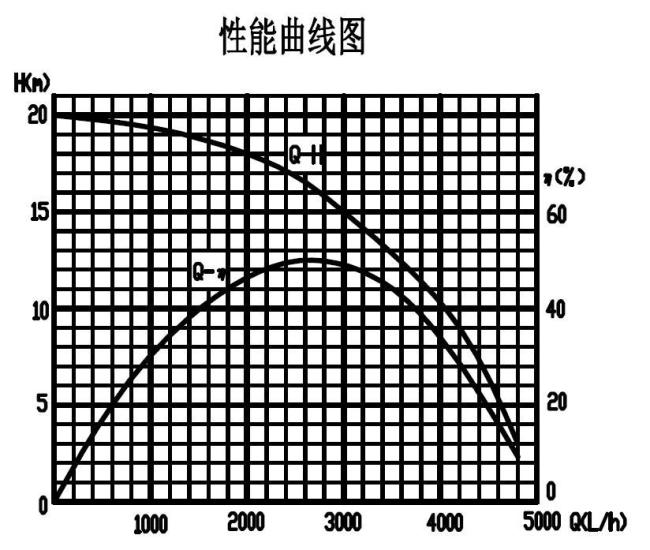

Flow rate VS head pressure Curve

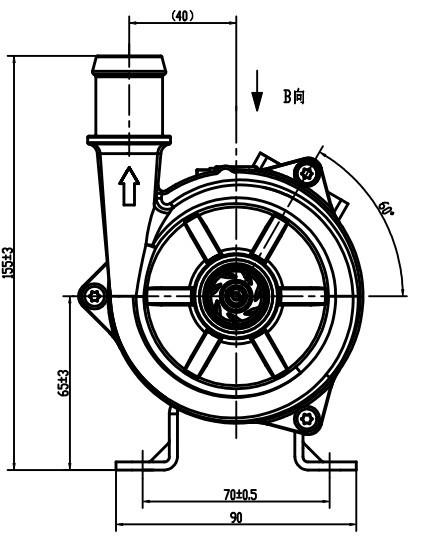

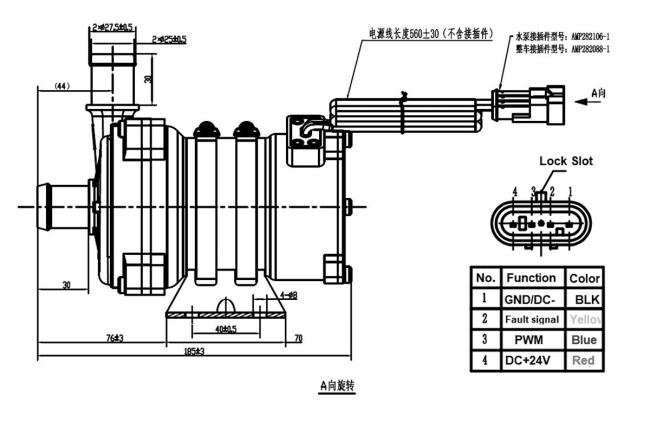

Dimensions Drawing
