BLDC 24V Electric Coolant Pumps For E Dump Truck'S Battrey Thermal Management System
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 work days
Brand:
Bextreme Shell
Product Description
24V Electronic Water Pump for E-Dump Truck Battery Thermal Management System
The OWP-BL43-426T Electronic Coolant Pump is a high-performance solution specifically engineered for Battery Management Systems (BMS) in electric dump trucks and heavy-duty engineering vehicles. Designed for harsh construction and mining environments, this pump ensures optimal thermal management to maintain stable battery performance during extended operation periods, preventing overheating even under intense workloads.
Core Advantages
- Superior Motor Efficiency: Professional electromagnetic design delivers 3-5% higher efficiency than competing models, reducing energy consumption while enhancing performance.
- Optimized Hydraulic Design: Advanced software simulation ensures perfect impeller and volute matching for higher hydraulic efficiency and consistent flow performance.
- Automotive-Grade Durability: Built with automotive-grade electronic components to withstand harsh operating conditions including vibration, temperature fluctuations, and dust exposure.
Specification Parameters
| Parameter | Details |
|---|---|
| Power Input | 24VDC (18-32VDC range) |
| Rated Power | 240W |
| Rated Flow Rate | 2400L/H @ 17M lift head |
| Maximum Flow Rate | 5000L/H |
| Maximum Lift Head | 20M |
| Medium Temperature Range | -40℃ to +85℃ (-40°F to +185°F) - long-hour operation guaranteed |
| Outlet Diameter | 25mm |
| Speed Regulation | PWM (Pulse-Width Modulation) |
| Fault Feedback Signal | High/Low-level |
| IP Rating | IP68 (dust-tight, water-submersible) |
| Noise Level | ≤60dB |
| Service Life | ＞20000 hours |
Key Features
- Constant flow control for stable BMS thermal management
- Reverse polarity protection to prevent damage from incorrect wiring
- Dry running protection to avoid motor burnout when coolant is insufficient
- Comprehensive safeguards: over-voltage, over-current, overload, and over-temperature protection
- Single-stage centrifugal structure for reliable flow output
- Magnetic force transmission (shielded pump design) to prevent coolant leakage
- High-efficiency brushless DC motor: low power consumption, high performance, and service life exceeding 20000 hours

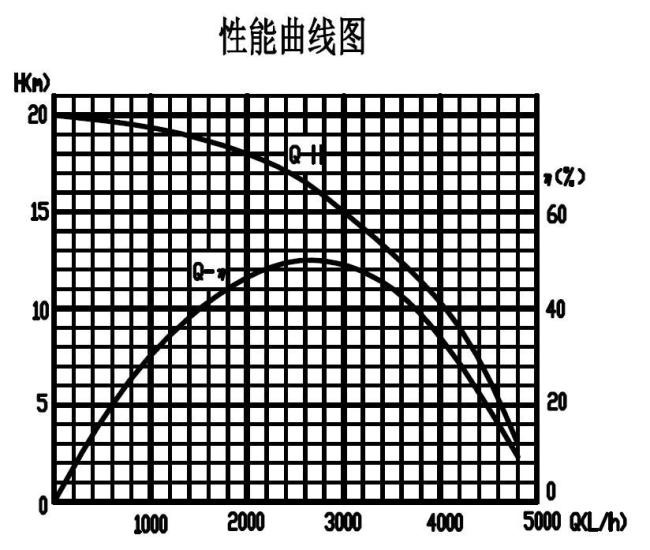

Performance Curve

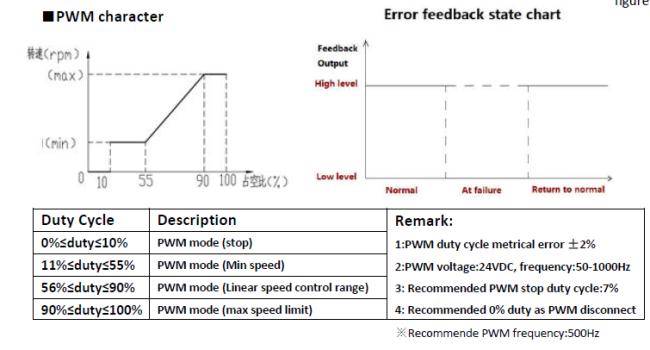

Speed Regulation & Fault Feedback

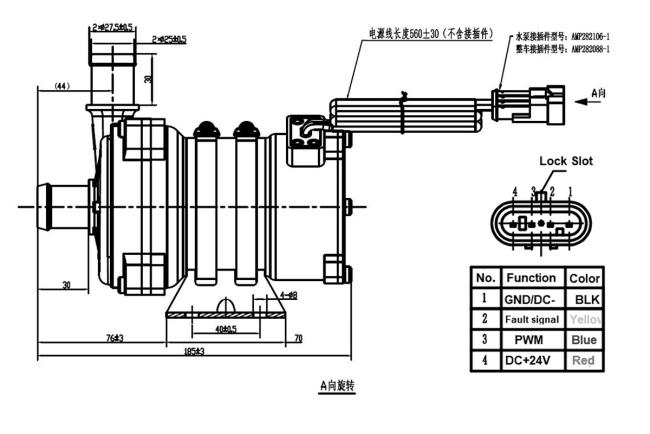

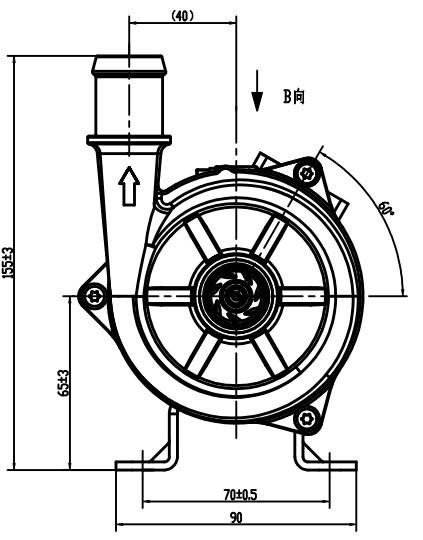

Dimensional Drawing
