55 Ton Used Crawler Crane XCMG 13m-52m Long Boom XGC55 Crawler Crane
Price:
200,000-6,000,000 RMB per unit
MOQ:
One Crane
Delivery Time:
According to Order Confirmation
Brand:
XCMG
Product Description
55T XGC55 Crawler Crane with Superior Adaptability
This high-performance 55-ton crawler crane from XCMG delivers exceptional adaptability in harsh environments, featuring a long boom configuration and reliable operation at 1.5 km/h travel speed.
Key Features
- Maximum rated lifting capacity: 55t/3.7m
- Maximum rated lifting moment: 203.5t.m
- Excellent gradeability of 30%
- Low ground pressure of 0.06 MPa
- Robust SC7H210.1G3 engine (155kW/2000rpm)
Technical Specifications
Capacity Parameters
| Working Condition | Unit | Value |
|---|---|---|
| Main boom working condition | t | 55 |
| Single pulley at arm end | t | 6 |
| Fixed jib (without main hook) | t | 11.4 |
Dimension Parameters
| Parameter | Unit | Value |
|---|---|---|
| Main boom length | m | 13-52 |
| Main boom luffing angle | ° | -3-80 |
| Fixed jib length | m | 7-16 |
Performance Parameters
| Parameter | Unit | Value |
|---|---|---|
| Max hoisting speed | m/min | 125 |
| Max slewing speed | rpm | 2.45 |
| Max traveling speed | km/h | 1.37 |
General Specifications
| Parameter | Unit | Value |
|---|---|---|
| Machine weight (13m basic boom) | t | 46.3 |
| Max shipping weight | t | 28.6 |
| Transport dimensions (turntable) | m | 12.04×3.45×3.36 |

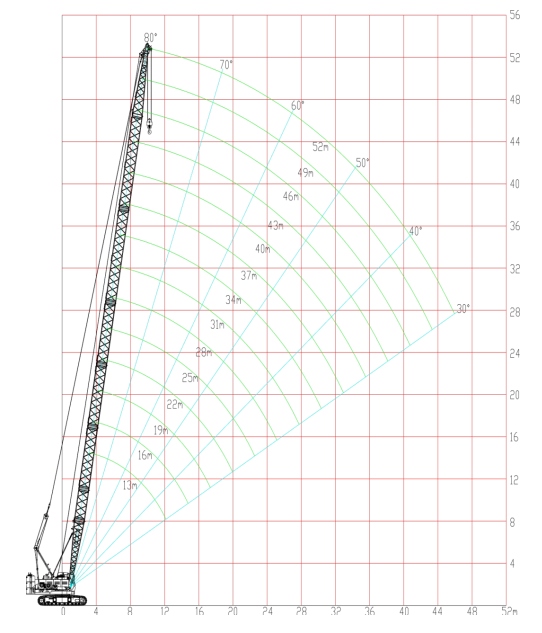

Working Range Diagram
