Used 260T Xcmg Crawler Crane / Long Boom Crane 40 Meters Fully Enclosed Cabin

Name: Used 260T Xcmg Crawler Crane / Long Boom Crane 40 Meters Fully Enclosed Cabin
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.

Price Negotiable

Price: 200,000-6,000,000 RMB per unit

MOQ: One Crane

Delivery Time: According to Order Confirmation

Brand: XCMG

Product Description

Used 260T Xcmg Crawler Crane / Long Boom Crane 40 Meters Fully enclosed Cabin

Used 260T Crawler Crane Can Be Applied In Environmental Protection Projects

XLC260 Crawler Crane Technical Specifications

Crawler crane models: XLC260

Max rated lifting capacity: 260t

Max lifting moment: 1430t.m

Main boom working conditions_Characteristics of main boom hook with boom end pulley auxiliary hook (HBS/1)

Main boom working condition_HBS/1_65t+30t main boom main hook performance with arm end pulley auxiliary hook

Operating radius(m)	56	59	62	65	68	71	74	77*	80*
10	93.7	91.5	89.4
11	84.8	82.9	81	79.2	77.4	70.6
12	77.2	75.6	73.9	72.4	70.8	69.4	62.5	60.3	55.2
13	70.8	69.3	67.9	66.5	65.1	63.8	61.4	59.5	54.5
14	65.2	63.9	62.6	61.4	60.1	59	57.8	56.8	53.7
15	60.4	59.2	58	56.9	55.7	54.7	53.6	52.7	51.6
16	56.1	55	54	52.9	51.8	50.9	49.9	49.1	48.1
17	52.3	51.3	50.3	49.4	48.4	47.5	46.6	45.9	44.9
18	48.9	48	47.1	46.2	45.3	44.5	43.6	42.9	42.1
19	45.8	45	44.2	43.3	42.5	41.7	40.9	40.3	39.5
20	42.5	42.3	41.5	40.7	39.9	39.3	38.5	37.9	37.1
22	36.8	36.6	36.4	36.2	35.5	34.9	34.2	33.7	33
24	32.3	32	31.8	31.6	31.4	31.2	30.6	30.1	29.5
26	28.5	28.3	28.1	27.8	27.6	27.5	27.2	27.1	26.5
28	25.4	25.1	24.9	24.7	24.4	24.3	24.1	24	23.8
30	22.7	22.5	22.3	22	21.8	21.6	21.4	21.3	21.1
32	20.4	20.2	19.9	19.7	19.4	19.3	19.1	19	18.8
34	18.4	18.2	17.9	17.7	17.4	17.3	17	17	16.7
36	16.6	16.4	16.2	15.9	15.7	15.5	15.3	15.2	15
38	15.1	14.8	14.6	14.4	14.1	14	13.7	13.7	13.4
40	13.7	13.4	13.2	13	12.7	12.6	12.3	12.3	12
42	12.4	12.2	12	11.7	11.5	11.3	11.1	11	10.8
44	11.3	11.1	10.9	10.6	10.3	10.2	9.9	9.9	9.6
46	10.3	10	9.8	9.6	9.3	9.2	8.9	8.9	8.6
48	9.3	9.1	8.9	8.6	8.4	8.2	8	7.9	7.7
50	8.5	8.2	8	7.8	7.5	7.4	7.1	7.1	6.8
52		7.4	7.2	7	6.7	6.6	6.3	6.3	6
54			6.5	6.3	6	5.9	5.6	5.6	5.3
56				5.6	5.3	5.2	4.9	4.9	4.6
58				5	4.7	4.6	4.3	4.3	4
60					4.1	4	3.7	3.7	3.4
62						3.4	3.2	3.2	2.9
64							2.7	2.6	2.4
66							2.2	2.2
Magnification	9	9	8	7	7	6	5	5	5

Notes:

The actual lifting capacity must be deducted from the rated lifting capacity in this table by the weight of the hook, sling and wire rope wrapped around the hook and boom head.
The rated load in the table is the value when the load is lifted slowly and steadily on a horizontal hard ground and the non-travel lifting work is performed.
The rated load in the table is based on the calculation value of the main boom section without the tower arm back plate, tower arm guide pulley and arm end single pulley.
The tower arm back plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the top section of the main boom.
The waist rope needs to be used for the combination at the "*" when the main boom length exceeds 74m, and it is recommended to use a wedge to assist the boom when the main boom length exceeds 77m.

Main boom working condition_Characteristics of boom end pulley auxiliary hook with main boom main hook (HBS/2)

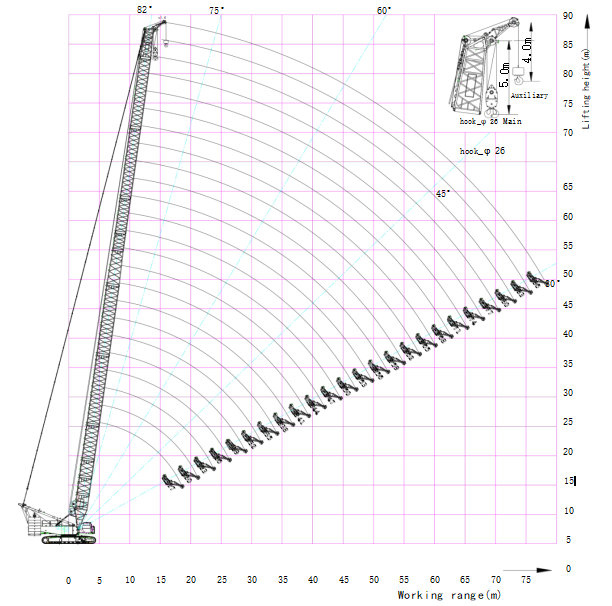

Main boom working condition_working range of boom end pulley auxiliary hook with main boom main hook (HBS/2)

Main boom working condition_working range of boom end pulley auxiliary hook with main boom main hook(HBS/2)
