Container BESS Solar Battery Energy Storage Lithium System 1MWH LifePO4 Battery Energy Storage System Container
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
COENG
Product Description
Product Description:

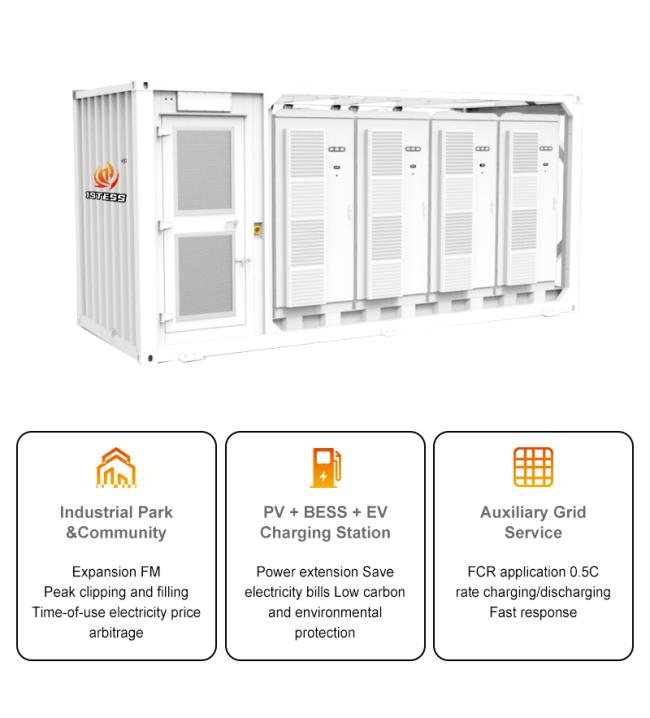

EnerCube3.0 Container Battery Energy Storage System adopts an All-in-One modular design, integrating the battery PACK, intelligent energy storage converter (PCS), power distribution unit (PDU), automatic fire extinguishing system (FFS), and temperature control system (TcS), intelligent monitoring system (IMS), etc.are integrated into one, and the 20HQ standard container design is adopted, which saves application space and facilitates transportation, hoisting, installation and maintenance.
Product parameters:
| Type | P400C860 | P500C1075 | P600C1290 | P700C1505 | P800C1720 |
|---|---|---|---|---|---|
| DC side parameters | |||||
| Cell type &capacity | LiFePO₄-280Ah | ||||
| Battery module type | 1P20S | ||||
| System configuration | 4*1P240S | 5*1P240S | 6*1P240S | 7*1P240S | 8*1P240S |
| Capacity(BOL) | 860kWh | 1075kWh | 1290kWh | 1505kWh | 1720kWh |
| AC side parameters | |||||
| Grid type | 3P4W+PE | ||||
| Rated output power | 400kW | 500kW | 600kW | 700kW | 800kW |
| Rated voltage | AC400V | ||||
| Rated frequency | 50/60(±5)Hz | ||||
| Maximum output current | 577A | 722A | 866A | 1010A | 1155A |
| Harmonics | <3%(@rated power) | ||||
| Overload capacity | 110%,10mins;120%,60s | ||||
| General parameters | |||||
| Isolation transformer | No | ||||
| Protection level | Outdoor installation (Battery cabinet:IP55,Electrical room:IP34) | ||||
| Container anti-corrosion grade | C3 | ||||
| Operation temperature* | -20℃~50℃ | ||||
| Relative humidity | 0~95%(non-condensing) | ||||
| Permissible altitude** | <2000m | ||||
| Cooling method | Battery cabinet:HVAC,Electrical room:forced air cooling | ||||
| Fire fighting system | FAS &FM200/Novec1230 | ||||
| Noise emission | ≤75dB | ||||
| Dimension (W*D*H) | 20HQ container (6058mm*2438mm*2896mm) | ||||
| Maximum weight | 24500kg | ||||
| Communication interface | Ethernet | ||||
| Communication protocol | Modbus TCP/IP | ||||
| Warranty | 5 years (can be extended to 10 years)Warranty | ||||
| Certification | System:UN3536,LVD,EMC,RoHS Cell:IEC62619,UL1973,UL9540A PACK:UN38.3 PCS:G99,EN50549,AS4777.2,VDE4105 |
||||
