All in One BESS Solution 143.36kwh-215kwh Cabinet Energy Storage System Air Cooling Industrial Commercial Energy Storage

Name: All in One BESS Solution 143.36kwh-215kwh Cabinet Energy Storage System Air Cooling Industrial Commercial Energy Storage
Brand: SHENZHEN COENG TECH CO., LTD.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Brand: COENG

Product Description

Product Description:

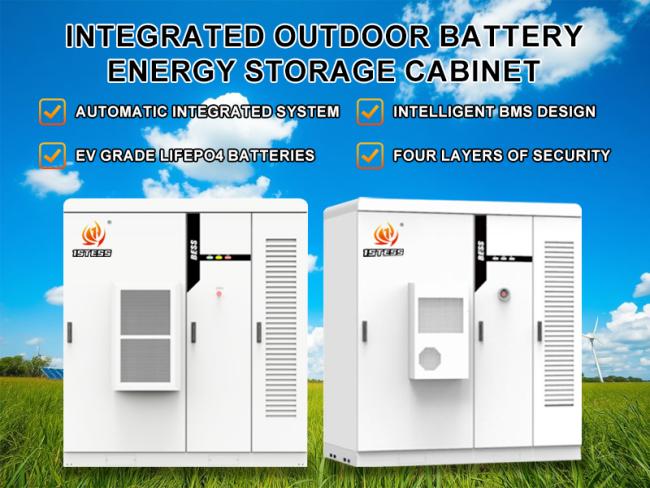

EnerArk-2.0 is a compact and Plug-and-Play battery energy storage system with easy to be transported, installed and maintained.

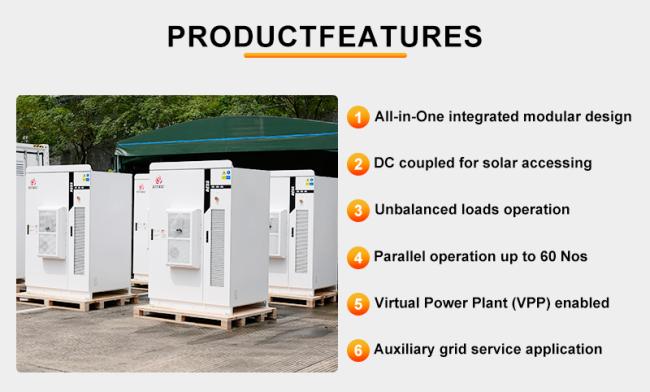

It is an All-in-One system comprises of PCS, batteries, BMS, EMS, MPPT, automatic fire control system and temperature control system.

Product parameters:

Model	NBN-P30	NBN-P50	NBN-P100
DC side Parameters
Cell type	LFP-280Ah
Module model	IP20S
Battery capacity range	143.36kWh~215kWh	143.36kWh~215kWh	215kWh
AC On-Grid Side Parameters
Grid connection type	3P4W
Charging/discharging power	30kW	50kW	100kW
Rated grid voltage	AC 400V±15%
Frequency range	45Hz~55Hz
Rated AC output current	43A	72A	144A
Power factor	0.8(Leading)~0.8(Lagging)
Harmonics	≤3%(at rated power)
AC off-grid side parameters
Load type	3P4W
Rated output power	30kW	50kW	100kW
Rated output yoltage	AC400V±1%
Rated output frequency	50Hz
Rated current	43A	72A	144A
Frequency accuracy	0.2Hz
General Parameters
Dimensions (WHD)	1900mm2100mm1330mm
Packing size(WHD)	2100mm2244mm1500mm
Maximum weight	2500kg

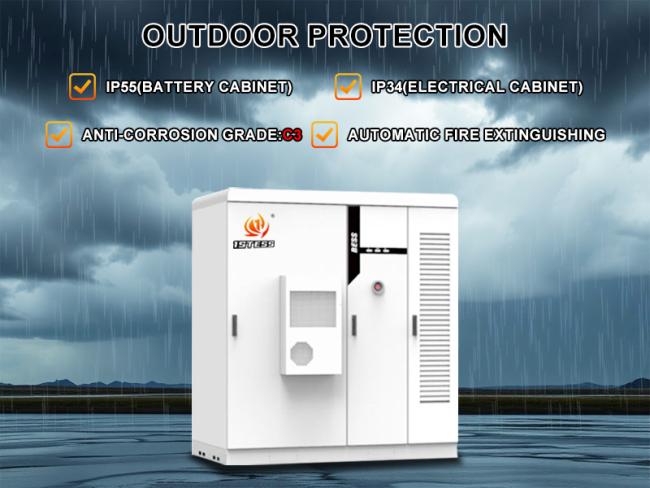

Degree of protection	IP55(Battery Cabinet)IP34(Electrical Cabinet)
Cooling method type	Battery Cabinet (air conditioner)&Electrical Cabinet (forced air cooling)
Fire fighting system	FM200 automatic fire extinguishing
Anti-corrosion grade	C3
Relative humidity	0-95%(non-condensing)
Operating temperature*	-20℃~50℃
Altitude**	<2000m
Noise level	≤75dB
Communication interface	RS485,Ethernet
Communication protocol	Modbus RTU,Modbus TCP/IP
Product standard warranty	5 years,6000 cycles(0.5C,95%DOD,EOL:70%)
PV Side Parameters (Optional)
Maximum PV input power	30kW/60kW	30kW/60kW/90kW/120kW
MPPT voltage range	200V-850V	200V-850V
Number of MPPTs	1/1	1/1/2/2
Number of PV inputs	1/1	1/1/2/2
Maximum input current	100A/200A	100A/200A/300A/400A
Certifications	CE(IEC61000,IEC62619,IEC62477),UN3480,UN38.3,MSDS Converter:UK G99,VDE4105,EN50549 Cell:IEC62619,UL1973,UL1642,UL9540A
