BMS LiFePO4 6s 8s 16s 24V 48V 100A 200A Smart BMS Battery Management System for Lithium Ion Battery Pack
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Feature:
1.Provides protection for 16 series LiFePo battery pack
2.Provides protections in charging and discharging
3.Processes the balance between cells smartly, the current of it can be set freely by external components.
4.Deals with over-current and short-circuit protection with circuit itself
5.Protect an electrical circuit from damage caused by over current/ over load or short circuit
6. Low temperature heating function

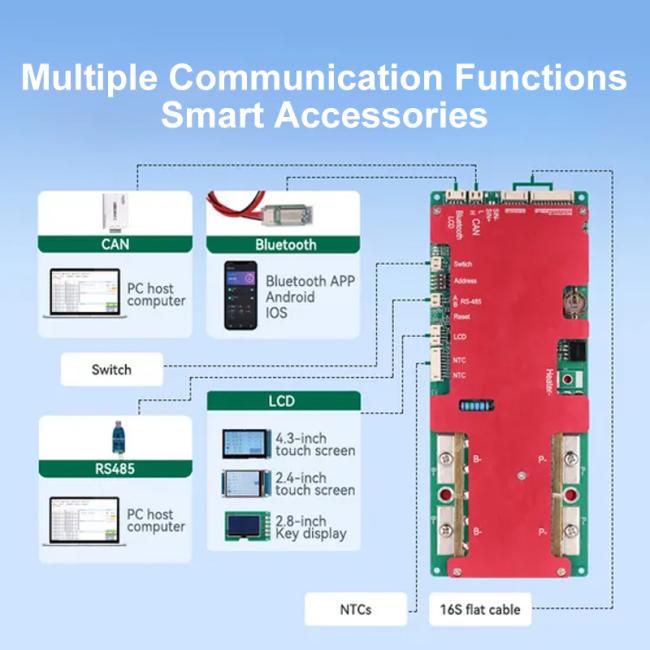

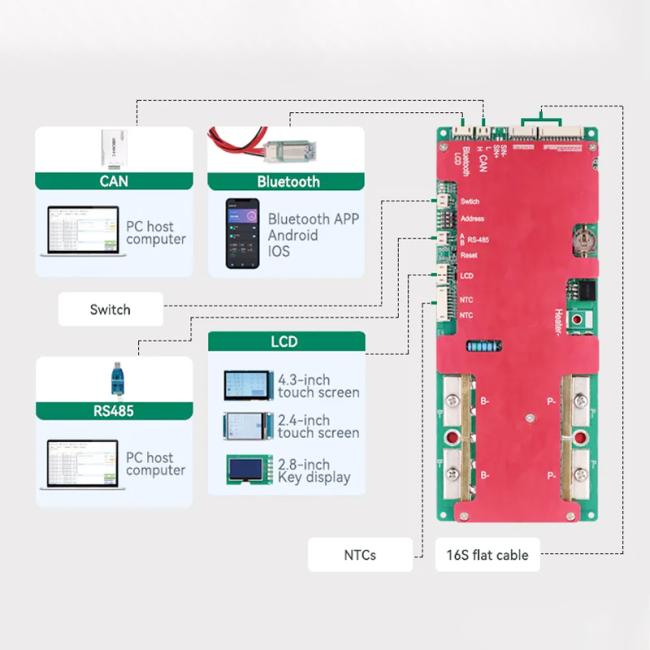

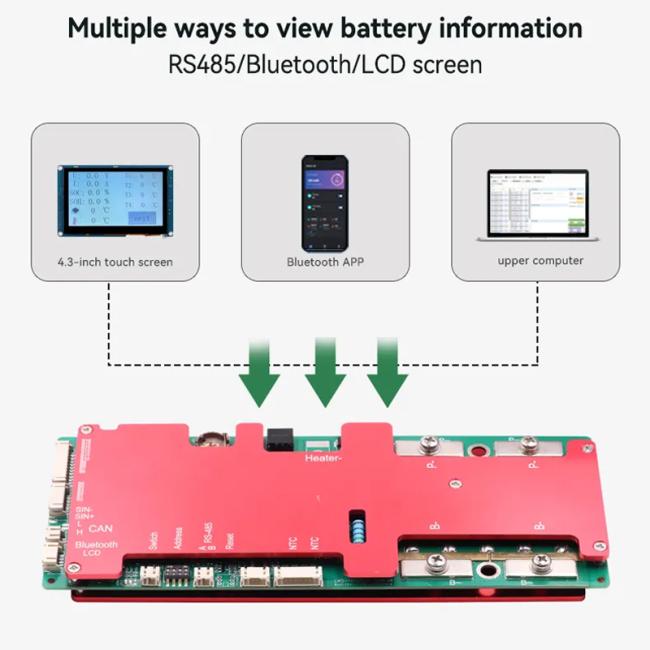

7.Support RS485 protocol
8.Support CAN protocol
9.Support bluetooth protocol
Product Description:
| Mode | 16S200A-809V3 |
| PCM Size | L238.4*W95*T17.5 mm |
| battery series | 16S Available |
| working current | 200Available |
| Usage(Cell Type) | Li-ion battery packs (51.2V/cell) LiFePO4 battery packs (59.2V/cell) |
| Application | Ebike, Solar products, etc |
| Sample | available |
| No | Test item | Criterion | ||
| 1 | Voltage | Charging voltage | DC:58.4V CC/CV | |
| Balance voltage for single cell | 3.2±0.025Vc | |||
| 2 | Current | Balance current for single cell | 75±20mA | |
| Current consumption -sigle cell | ≤50μA | |||
| MAX Continuous charging/discharge current | ≤100A | |||
| MAX Discharging current (time) | none | |||
| 3 | Over charge Protection | Over charge detection voltage for single cell | 3.75±0.025V | |
| Over charge detection delay time | 0.5~1.5S | |||
| Over charge release voltage for single cell | 3.5±0.05V | |||
| 4 | Over discharge protection | Over discharge detection voltage for single cell | 2.50±0.05V | |
| Over discharge detection delay time | 500~1500mS | |||
| Over discharge release voltage for single cell | 2.8±0.10V | |||
| 5 | Over current protection | Over discharge current protection | 120±10A | |
| Detection delay time 1 | 500~1500mS | |||
| Detection delay time 2 | 500~1500mS | |||
| Overcharge current protects current | 80±10A | |||
| Detection delay time | 500~1500mS | |||
| 6 | Short protection | Short circuit protection current | ≈1000A | |
| protection delay time | 50-800us | |||
| Release condition | Cut load,Automatic recovery | |||
| 7 | Resistance | Protection circuitry(MOSFET) | ≤5mΩ | |
| 9 | Temperature | Operating Temperature Range | -20~+60ºC | |
| Storage Temperature Range | -20~+60ºC | |||
