Portable Desktop Silver Gold YAG Pulse 200W Mini CCD Jewelry Welding Fiber Laser Welder Machine

Price Negotiable
Price: $3,300
MOQ: 1
Delivery Time: Negotiable
Brand: HM
Product Description

Jewelry Laser Welding Machine spot Welder Jewelry Welder Machine

1.HD touch screen
Stable, easy for operation
Adjust 3 parameters ONLY:Current/ Pulse / Frequency

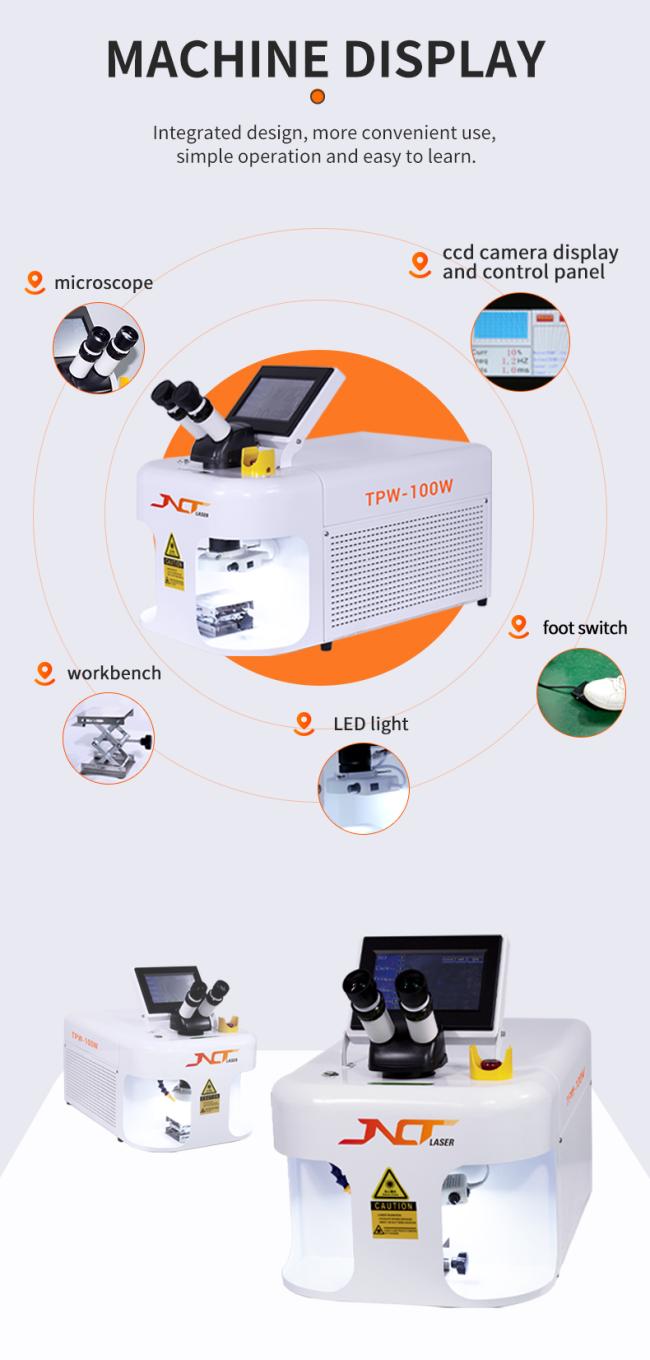

2.Viewing system
The viewing system-Microscope
Easy for viewing the welding position
and adjusting the parameter accordingly

3.Laser head&Air tube
With the light and red light
pointer in the operation space
Accurate welding
With air tube
Better welding effect


Paramenters
Paramenters
Model
IR-JW200S
Laser power
200W
Laser type
YAG
Wavelength
1064nm
Maximum single pulse energy
100J
Pulse width
0.1-3ms
Frequency
1-20HZ
Welding depth
0.1-1mm
Spot welding size
0.3-3mm
Cooling method
Inside Water chiller
Gross weight
45Kg
Dimension
36*62*37cm
