Portable Color Laser Marking Machine for Non-Metal
Product descriptions from the supplier

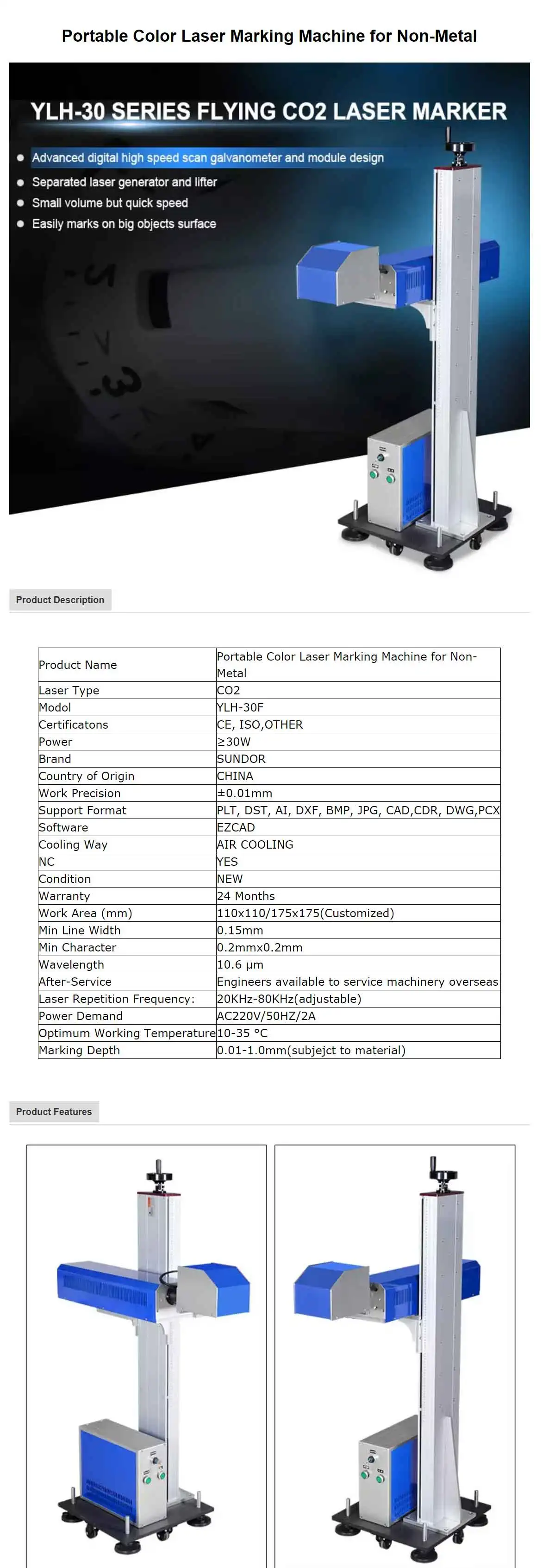

Portable Color Laser Marking Machine for Non-Metal
YLH-30 SERIES FLYING CO2 LASER MARKER

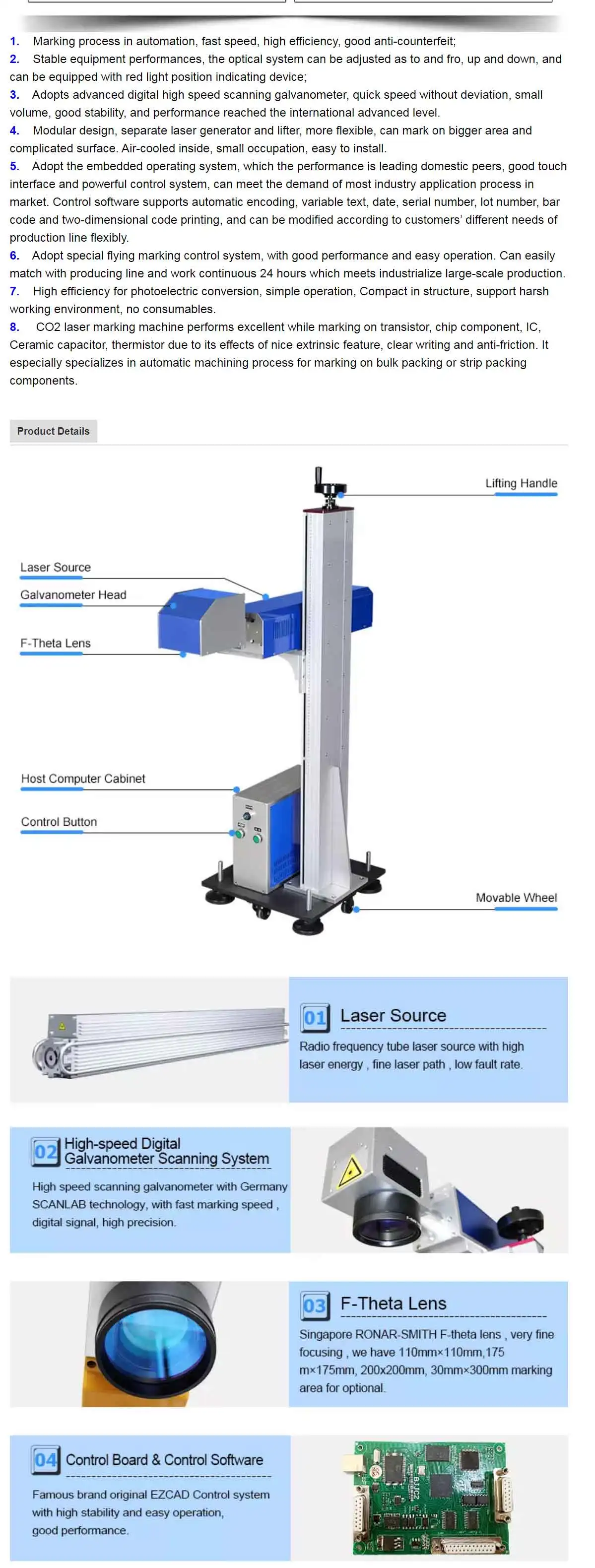

. Advanced digital high speed scan galvanometer and module design
Separated laser generato and lifter
Small volume but quick speed
Easily marks on big objects surface
Laser Type CC
Modol |YLH-30F
Certificatons CE, ISO,OTHER
Power Brand
SUNDOR Country of Origin
Work Precision +0.01mm
Support Format PLT, DST, AI, DXF, BMP, JPG, CAD,CDR, DWG,PCX|
|Software EZCAD
Cooling Way _ AIRCOOLING
lC YE
Condition NEW
Warranty 24 Months
Work Area (mm) 110x110/175x175(Customized)
Min Line Width 0.15mm
Min Character 0.2mmx0.2mm
Wavelength 10.6 um
After-Service Engineers available to service machinery overseas
Laser Repetition Frequency: 20KHz-80KHz(adjustable)
AC 220V/50HZ/2A
Optimum Working Temperature10-35 °C
Marking Depth 0.01-1.0mm(subjejct to material)
1. Delivery time:
7-15 days delivery time for standard machines 15-30 days for machines that have been customised to client specifications.
2. Payment terms:
30% deposit payable upon acceptance of quotation 70% balance of invoice due before shipping.T/T, west union are approved methods of payment.
3. Shipping:
Good can be shipped by either of the methods below: FOB or CIF, shipped by our ship partner. for EX.W, shipped by you or your agents.
4. Machine Operational Instructions:
The following options are available to customers: an instructional video demonstrating how to use the machine .a complimentary free training session hosted at our factory, pending availability. an operating manual ( english) is provided with the machine.
5. Guarantee & After-Sales Service:
The machine comes with a 12 month guarantee. a 24 hour, free technical support service is available via email, fax, MSN, skype, phone, tradeMessenger.
6. Product Warranty:
Replacement parts will be supplied at no cost for the period of the warranty. replacement parts are at the customers expense after this expiry of the warranty period. however, we guarantee customer support within 48 hours of being notified of an issue, to support product maintenance.
7. Minimum Order Quantity (MOQ):
We accept single (1) machine orders.
