Ray Tool Auto Focus Fiber Laser Cutting Head BOCI 421S 3000W Power Cutting Spares Parts

Price Negotiable
Price: $900
MOQ: 1
Delivery Time: Negotiable
Brand: Raytool
Product Description

The BOCI421S series are auto-focusing laser cutting heads released by RAYTOOLS AG in 2017 for fiber laser processing with 1.5kW or less. This products have a built-in motor drive unit, which drives the focusing lens through a linear mechanism to change position automatically within 17mm. Customers can set the program to achieve continuous focus that completing the rapid piercing and cutting material with different thickness.
BM109 use the D28 diameters lense set to collimate and focus the laser beam, which can achieve the diffraction-limited optical effect. The design of water-cooled structure allows laser heads to work stably and chronically. BM109 Auto Focus Laser Cutting Head
Power rating 1.5KW; Standard auto focus laser cutting. Modular design with easy maintenance. Dual water cooling circuits. Auto focus to reduce human intervention and improve piercing and cutting efficiency. 3 Cover glasses (top, middle and bottom) to protect collimation & focus lens. IP65 class dustproof, patented cover glass cover plate. All-around dust prevention.

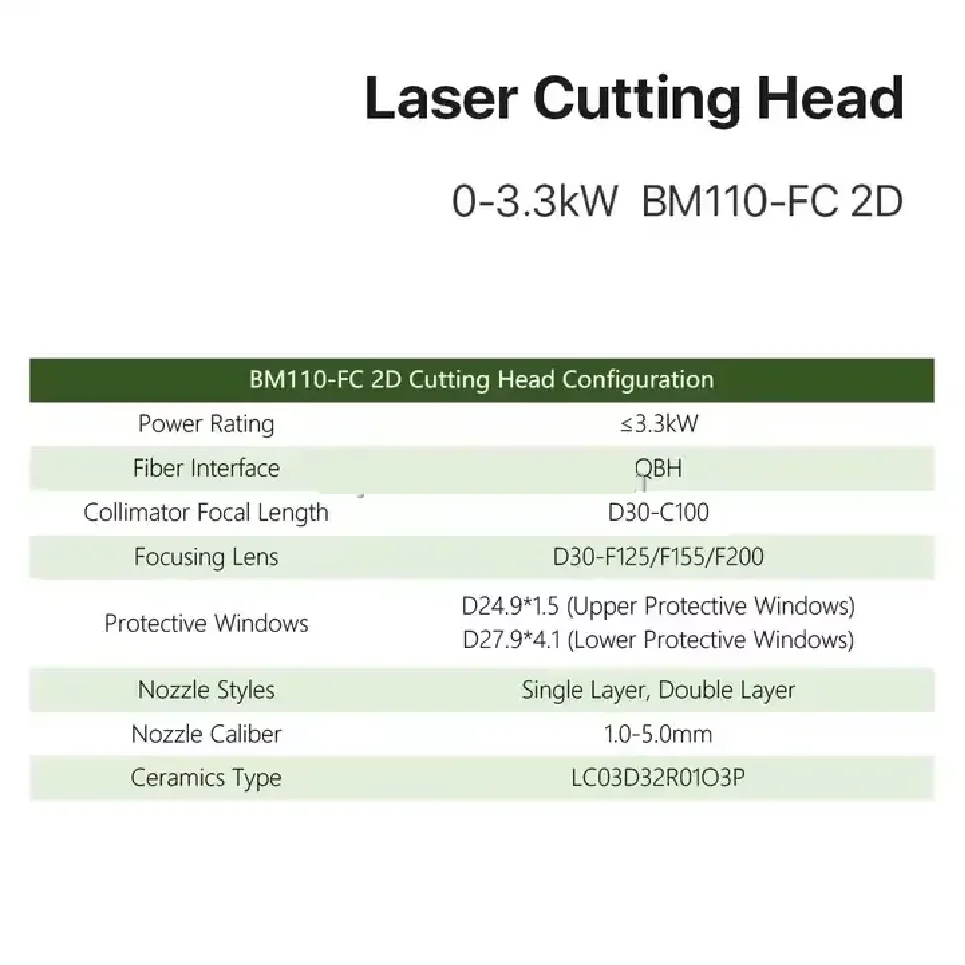

Ray tool Auto Focus Fiber Laser Cutting Head BM110 3000W Power Cutting Spares Parts

name Fiber Laser Cutting Head
FAQ

  1. Delivery time:
7-15 days delivery time for standard machines 15-30 days for machines that have been customised to client specifications.
2. Payment terms:
30% deposit payable upon acceptance of quotation 70% balance of invoice due before shipping.T/T, west union are approved methods of payment.
3. Shipping:
Good can be shipped by either of the methods below: FOB or CIF, shipped by our ship partner. for EX.W, shipped by you or your agents.
4. Machine Operational Instructions:
The following options are available to customers: an instructional video demonstrating how to use the machine .a complimentary free training session hosted at our factory, pending availability. an operating manual ( english) is provided with the machine.
5. Guarantee & After-Sales Service:
The machine comes with a 12 month guarantee. a 24 hour, free technical support service is available via email, fax, MSN, skype, phone, tradeMessenger.
6. Product Warranty:
Replacement parts will be supplied at no cost for the period of the warranty. replacement parts are at the customers expense after this expiry of the warranty period. however, we guarantee customer support within 48 hours of being notified of an issue, to support product maintenance.
7. Minimum Order Quantity (MOQ):
We accept single (1) machine orders.
