Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine

Price Negotiable
Price: $3,000
MOQ: 1
Delivery Time: Negotiable
Brand: hm
Product Description
Specification
Model
SL-108R
SL-108S
The material fit to cut
Carbon steel, stainless steel, galvanized pipe
Cut capacity
Round:19-108mm
Round:19-108mm
Square:19x19-60x60mm
Rectangle: 80*40mm
Cutting stroke
6000mm
Function
Cut off, cut hole, cut notching
Measure
6750*550*750mm(Subject to the actual object)
Weight
300KG (Subject to the actual object)
Power
220V(Control part)
Output voltage
24V
Transmission mode
rack gear
Control mode

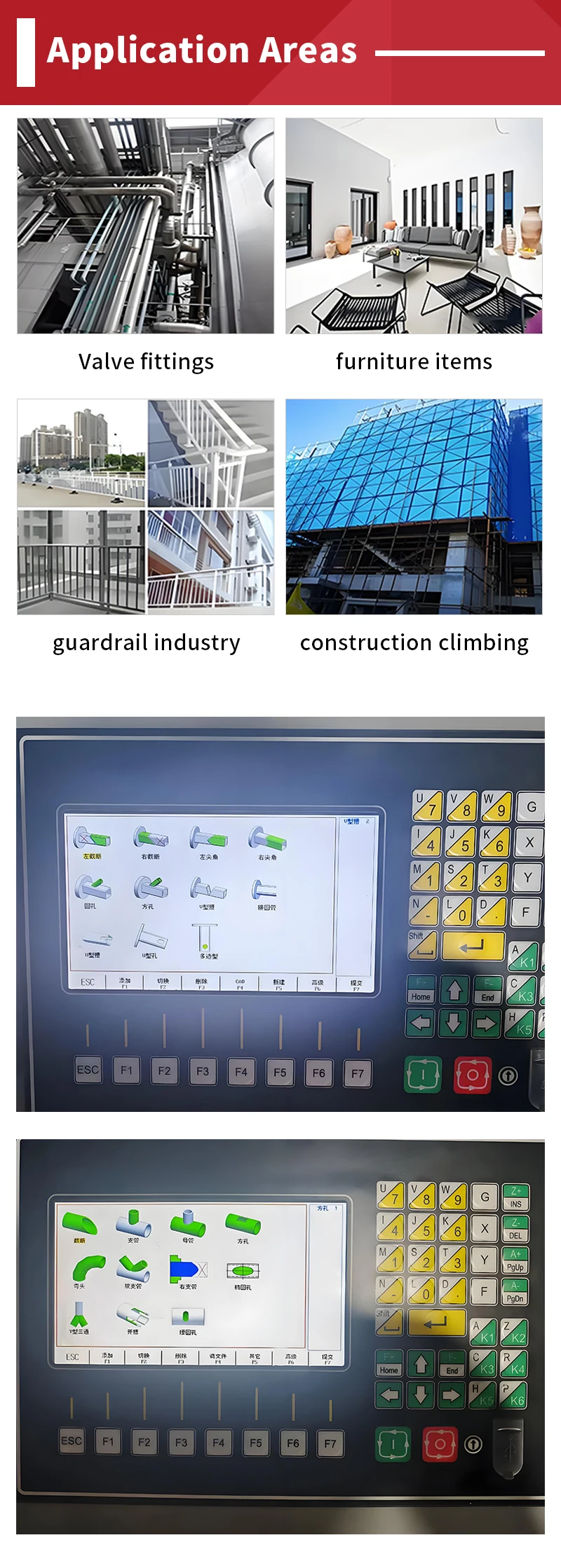

PLC control touch screen
Laser generator
Kipling/Hot Spur (Generator warranty two years, human damage is not covered by the warranty.) Warm tips: temperatures below 0
degrees need to add antifreeze, due to failure to add antifreeze or antifreeze problems caused by unqualified damage is not
covered by the warranty.
Laser head
Gangchun (can be customized)
Water Cooler
Turbo/Huako
Air supply
Air (≥1.5MPa,need to prepare their own air compressor and dryer)
Chuck specification
Within φ108mm
Processing
Manual loading - manual fixing - automatic rotation - automatic cutting - discharging
Main component Settings and parameters
Electric control unit
CHINT
Rack length
6000mm
Operating system
Self-developed control system software
Four jaw chuck
Manual
Auxiliary support system
Pneumatic auxiliary support



FAQ:
Q: How to choose suitable model?
A: Please provide a photo of the product you used before or advise us your needs, we will give suggestions.

Q: What's your MOQ?
A:Normally one piece. If more, we can talk about discount. We can ship all parts you ordered together.

Q: Can I get discount?
A: The more you order, the more discount you will get.

Q: What is your terms of payment?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, balance before shipment.

Q: How long is your delivery time?
A: When the order is confirmed, 3-5 working days for the small order, 2-6 weeks for the bulk depending on the quantity and product type.
