6 Axis Welding Robot Fiber Laser Welding Machine 1500w 2000w 3000w Laser Welder Price

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: Negotiable
Product Description

Product Description

1. The robot has six-axis linkage, high positioning accuracy, large processing range, and easy welding of three-dimensional workpieces.
2. Compared with the traditional argon arc welding, the laser welding speed is increased by 5 to 10 times, and the power consumption and the consumption of consumables are lower, and the welding quality is very stable.
3. The heat affected area of welding is smaller, which can better guarantee the quality of welding products.
4. Robot laser welding has good adaptability to the size and shape of welding materials and welding parts, and can realize automatic control and long-distance welding


Specification
Specification
Model
LWR-1500W
LWR-2000W
LWR-3000W
Laser power
1500W
2000W
3000W
Laser wavelength
1080±10nm
Robot
Six-axis welding robot
Maximum load on wrist
12KG
Repositioning accuracy
±0.03mm

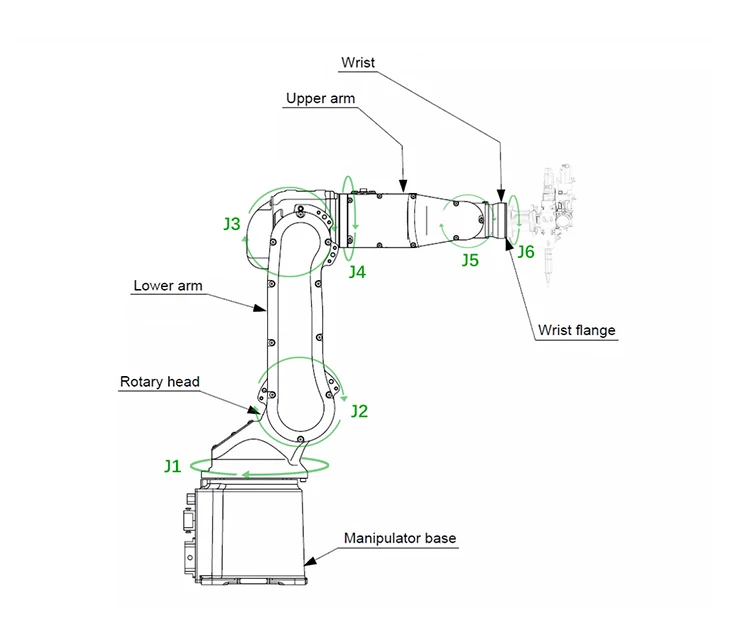

Range of motion
Lower arm
J1
340º/370º
J2
235º
J3
455º
Upper arm
J4
380º
J5
380º
J6
900º
Max speed
Lower arm
J1
260º/s
J2
240º/s
J3
260º/s
Upper arm
J4
430º/s
J5
450º/s
J6
720º/s
Thickness of welding material
≤4mm
≤6mm
≤8mm
Welding gap requirements
≤0.3mm
Voltage
380V±10%
Total power
≤8kw
≤10kw
≤12kw
Gross weight
200KG

Details Images
