Light Weight Carbon Steel Beam Warehouse Q235 Q355B H Section Steel Building Workshop
Price:
USD30-80 per square meter/Negotiable
MOQ:
100 square meters
Delivery Time:
30-55 days
Brand:
XGZ
Product Description
Light Weight Steel Beam Warehouse Q235 Q355B H Section Steel
Light Weight Steel Structure Warehouse Free Design Metal Workshop Factory Building
Product Description
Steel structure warehouse is a modern storage facility constructed from high-quality steel components, offering strength, durability, and versatility. Designed to withstand harsh environmental conditions, these warehouses feature open layouts for efficient goods movement and can be customized with mezzanine floors or office spaces. The sustainable design minimizes construction waste and offers energy-saving potential.
Product Specification
Our steel structure warehouses are fully customized to meet client requirements, with all specifications engineered based on project-specific conditions like wind and snow loads.
| Main Framing | |
|---|---|
| Column | Q235,Q355B H section steel |
| Beam | Q235,Q355B H section steel |
| Secondary Framing | |
| Purlin | Q235B Z and C section purlin |
| Knee brace | Q235B angle steel, galvanized |
| Tie bar | Q235B round steel, painted |
| Bracing | Q235B round steel, galvanized |
| Roof and Wall panels | |
| Single steel sheet | 0.5/0.6/0.7 color steel sheet |
| Sandwich panel | EPS/PU/Fiber glass wool/rock wool sandwich panel |
| Additional Components | |
| Steel Decking Floor | V-688 Decking floor |
| Structural subsystem | Canopies, Fascias, Partitions, etc. |
| Building Accessories | Sliding Doors, Roll Up Doors, Windows, Louvers |
We source materials from one of China's largest steel mills, ensuring quality and timely delivery through strategic partnerships that streamline our production process.
Product Advantages
- High quality, strength, durability and stability with aesthetic appeal
- Modular design for flexible configurations
- Quick and easy erection and installation
- Lower cost and maintenance than traditional construction
- Excellent waterproof and flameproof properties
- Stable performance with no shrinking or creeping at ambient temperatures
- Termite proof construction
- Environmentally friendly with reusable materials
- Weather-resistant construction minimizes delays
- Consistent, uniform quality
- Economical transportation and handling
Product Design
We provide quotations based on existing drawings or offer free design services for new concepts. Please provide:
- Project location (country and city)
- Dimensions: Length × width × eave height
- Wind load specifications (max wind speed)
- Snow load specifications (max snow height and temperature range)
- Earthquake resistance level required
- Brick wall requirements (height if needed)
- Thermal insulation preferences (EPS, fiberglass, rockwool, PU panels or metal sheets)
- Door and window quantities and sizes
- Crane requirements (quantity, max lifting weight and height if needed)

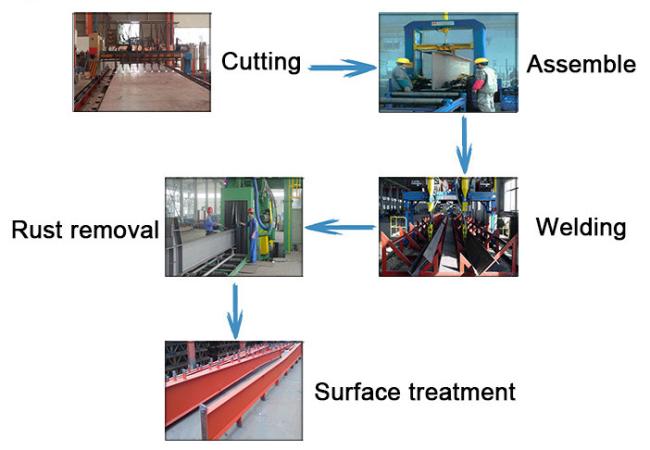

Production Process
Our manufacturing process includes:
- Precision cutting using laser cutting machines
- Assembly with hydraulic positioning systems
- Automated welding using gantry-type submerged arc welders
- Rust removal via shot blasting to Sa2.5 standard
- Surface treatment with painting or hot-dip galvanizing

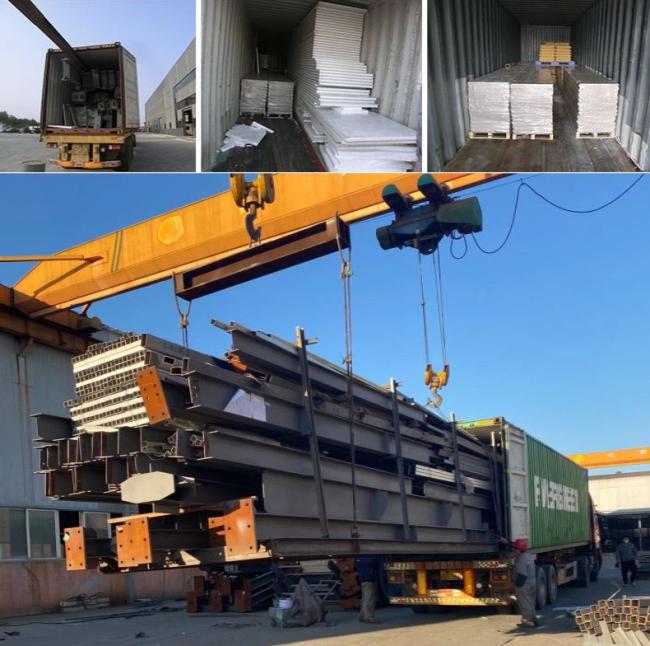

Packaging & Shipping
We ensure secure transportation using shipping containers with palletized or bulk packaging based on customer requirements.
Packaging Detail:
The main steel frame will be securely packed using steel pallets, providing enhanced protection during transportation. This packaging method allows for efficient loading and unloading as the entire frame can be handled as a single unit. Additionally, it helps optimize container space, reducing the number of shipping containers required and resulting in cost savings for ocean freight.
Other components such as steel purlins and steel sheets will be carefully packaged in parcels. These parcels will be certainly loaded into containers, ensuring safe and convenient handling throughout the shipping process.
Company Information

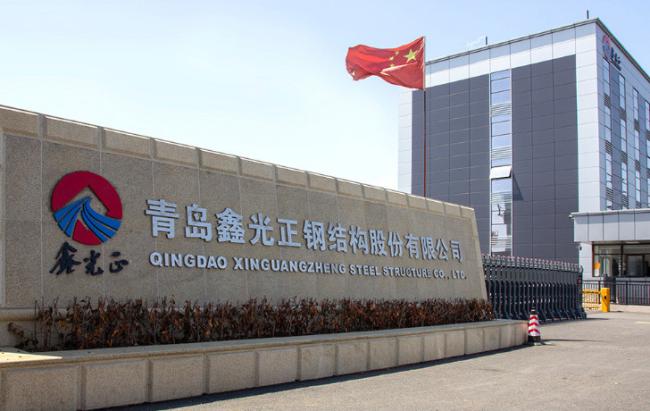

Qingdao Xinguangzheng Steel Structure Co., Ltd., established in 2002, operates from a 13.3-hectare facility in Pingdu City with over 1,000 employees. Our products serve customers in 100+ countries, and we've been listed on NEEQ since 2015. We specialize in integrated steel structure systems.
Project Cases
We hold CE certification (EN1090), International Steel Structure High-grade Certificate, and China Overseas Contract Project Operation Qualification. Our global partners span 130+ countries including Canada, Australia, Germany, and the USA.
FAQ
1. Are you a manufacturer?
We operate our own steel structure, steel sheet, and sandwich panel factories.
We operate our own steel structure, steel sheet, and sandwich panel factories.
2. Do you provide installation services?
We offer installation guidance with drawings and videos, and can send engineers if required.
We offer installation guidance with drawings and videos, and can send engineers if required.
3. What is your delivery time?
Typically 30-55 days depending on order quantity.
Typically 30-55 days depending on order quantity.
4. How to get a quotation?
Please provide project size and local wind/snow load details.
Please provide project size and local wind/snow load details.
