Sustainable 20x50 Steel Structure Shed , Modern Custom Metal Sheds
Price:
USD 30-85 per square meter
MOQ:
300 square meters
Delivery Time:
30-55 days
Brand:
XGZ
Product Description
20x50 Custom Color And Material Steel Shed Steel Structure Warehouse Workshop
Steel sheds are practical, versatile structures that provide reliable storage solutions. Constructed primarily from steel, these durable buildings withstand harsh weather conditions including heavy rain, strong winds, and snow. Ideal for protecting tools, equipment, and valuable items, they offer easy assembly and customizable configurations for business, agricultural, or industrial applications.
Product Specifications

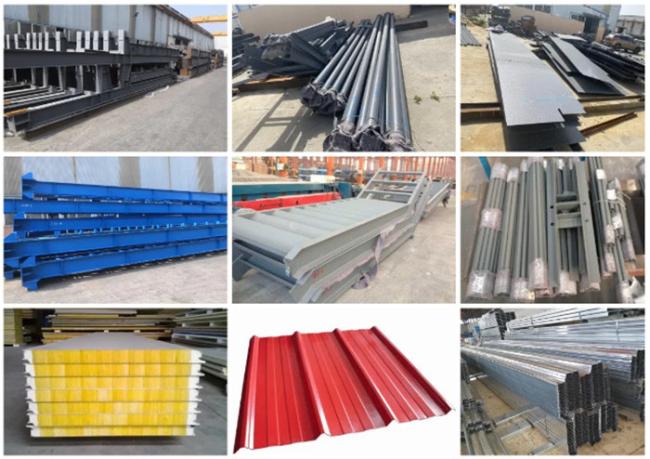

Main Components
- Main Frame: Steel beams, columns, and trusses
- Secondary Framing: Purlins, tie bars, and bracing to support wall and roof cladding
- Cladding System: Steel sheets (0.3mm-0.7mm thickness) or sandwich panels with insulation cores (EPS, fiberglass wool, rock wool, or PU)
| Component | Specifications |
|---|---|
| Main Structure |
Column: Q355, Q235B Welded or Hot Rolled H-steel (Box column available) Beam: Q355, Q235B Welded or Hot Rolled H-steel Surface Processing: Epoxy Zinc-Rich Primer + Epoxy Mica Paint (120μm) or Hot Dip Galvanization |
| Sub Structure |
Purlin: Q355B C/Z Section Steel Angle Brace: Q235B L-Steel Cross Bracing: Q235B Round Bar, L-Steel Tie Bar: Q235B Round Pipe Batter Brace: Q235B Round Bar |
| Roof System |
Panel Options: Insulated Sandwich Panel (PU, Rock Wool, Glass Fiber, EPS) 50mm/75mm/100mm or Steel Plate 0.4mm/0.5mm Gutter Options: Galvanized Steel (2.0mm/2.5mm/3.0mm) or Pre-finished Steel (0.4mm/0.5mm/0.6mm) Downspout: PVC Pipe |
| Wall System |
Panel Options: Insulated Sandwich Panel, Steel Plate, or Brick Wall (client-provided) Door Options: Roller, Sliding, Access (Steel or Glass) Window Options: PVC/Aluminum Frame (Fixed, Swing, Sliding) |
| Accessories | Anchor Bolts, Chemical Bolts, High Strength Bolts, Ordinary Bolts, Self-Drilling Screws, Rivets |
Advantages of Steel Shed Buildings
✓ Quick construction
✓ Light weight
✓ Foundation cost saving
✓ Environmentally friendly
✓ Sustainable
✓ Affordable
✓ Durable
✓ High strength
✓ Large span capability
✓ Flexible design options
Applications
- Commercial Buildings: Offices, retail stores, shopping malls with wide column-free spaces
- Industrial Facilities: Factories, warehouses, plants supporting heavy machinery
- Agricultural Buildings: Barns, storage sheds, poultry houses resistant to pests and fire
- Energy Plants: Solar power facilities requiring structural stability

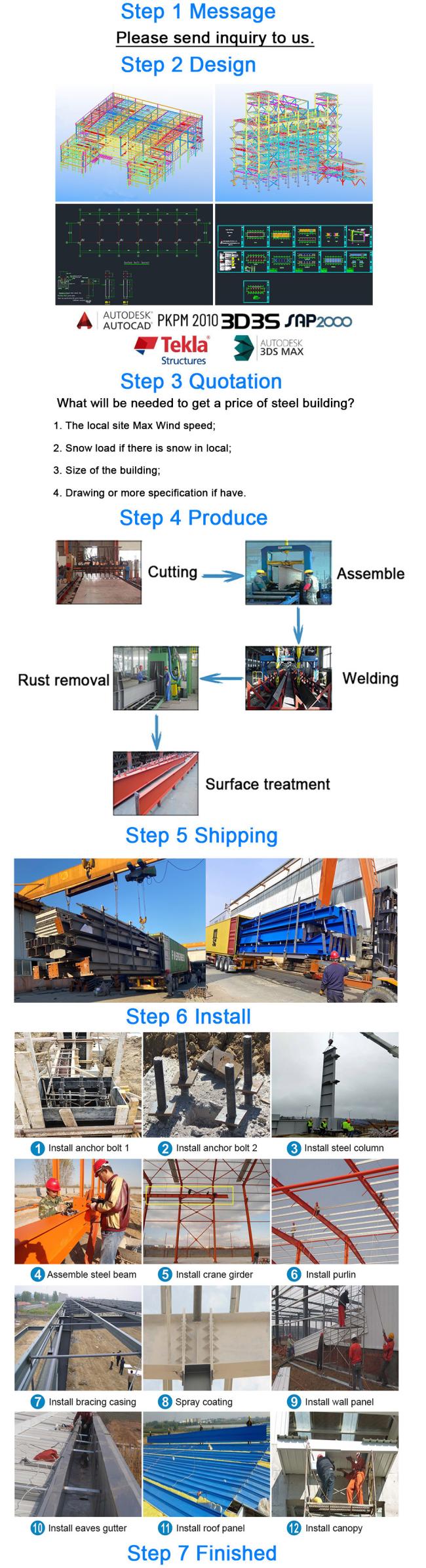

Project Process
- Customer inquiry submission
- Design and quotation phase with customized solutions
- Factory manufacturing after approval
- Shipping with construction drawings and installation support (videos/online guidance)
- Optional on-site construction personnel for installation assistance
- Project completion

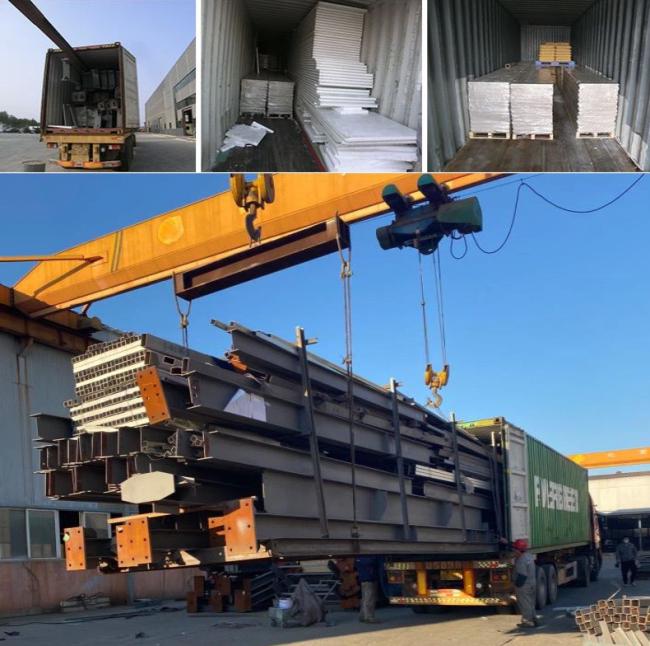

Packing and Shipping Guidelines
- Specialized lifting equipment with trained operators
- Secure loading with proper supervision and binding
- Stable transportation with marked oversized loads
- Careful handling by trained personnel familiar with components
- Timely unloading at construction site
- Crane operation with attention to terrain and conditions
Why Choose Qingdao Xinguangzheng
- Expert Teams: Skilled engineers and construction professionals with international project experience
- Quality Assurance: Meticulous planning and execution to prevent errors
- Safety Focus: Strict adherence to labor safety and quality standards
- International Standards: ISO 9001:2015 certified manufacturing
- Advanced Capacity: Modern technology and optimal design solutions
- Competitive Pricing: Comprehensive solutions from design to completion
- Global Experience: Exported to 80+ countries with 10,000+ successful projects
Frequently Asked Questions
Are you a factory?
Yes, we are a professional steel structure manufacturer with extensive experience in building production.
Are products tested before shipping?
All goods undergo batch testing to ensure qualification before shipment.
How is quality guaranteed?
Each product undergoes strict testing procedures with 100% quality inspection prior to delivery.
What drawings are provided?
We supply comprehensive plans including elevation, section, foundation, and installation drawings.
What are payment terms?
30% deposit with 70% balance paid before shipment.
