1. Motors are not allowed to be used beyond the limit of stall torque.

2. Please choose the power supply (DC: 2V/24V) reasonably according to the input voltage of the product.

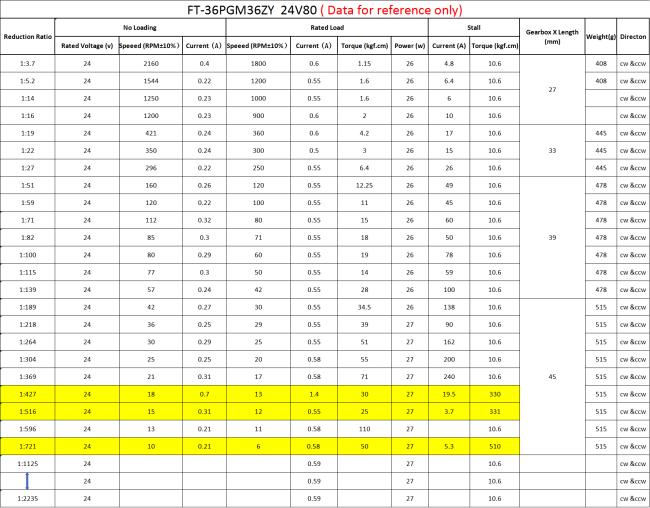

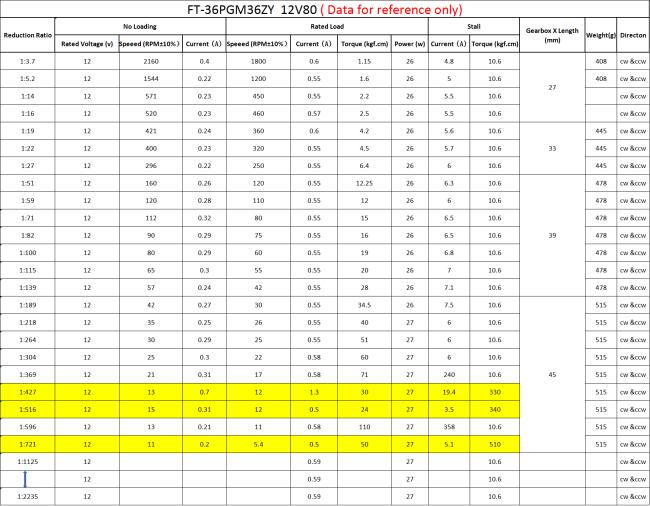

3. Load torque = rated torque; load speed = rated speed when the load torque is to the rated torque; if the actual load exceeds the rated load, the actual output speed should be correspondingly reduced.

4. It is recommended to refer to the rated torque when selecting the model.

5. Damage to the internal components may occur when approaching/exceeding the limit of stall torque.

6. Reducing the motor speed will in a decrease in output torque.

7. There will be about 50db noise during the operation of the motor, which may vary slightly with the change of speed/.

Reduction ratio determines output torque! The larger the reduction ratio, the greater the torque and the lower the speed! (It's not the speed adjustment that determines if you lower the speed, the torque will decrease accordingly.)

Application
