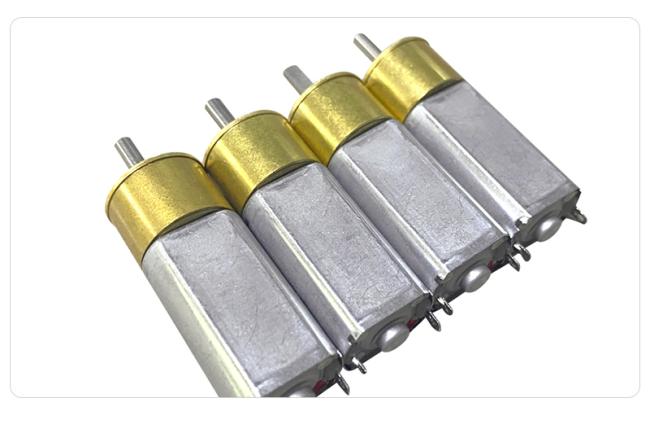

FT-16RGM050 DC 6V 12V24V Spur Gear Motor for Pad Lock
Price:
Negotiable
MOQ:
1000 Pieces
Delivery Time:
15-30 days/Negotiable
Brand:
FUTENG
Product Description

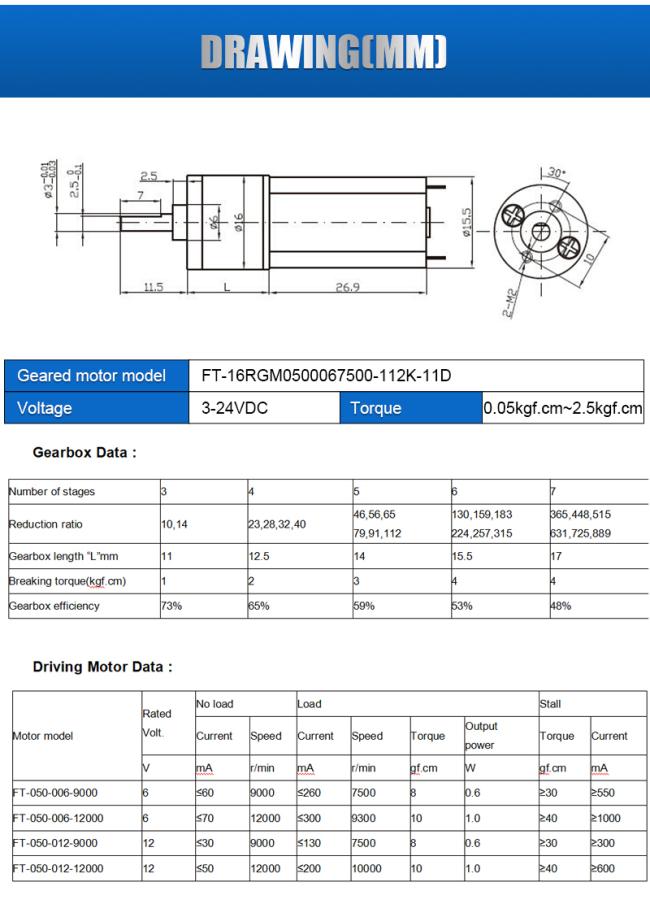

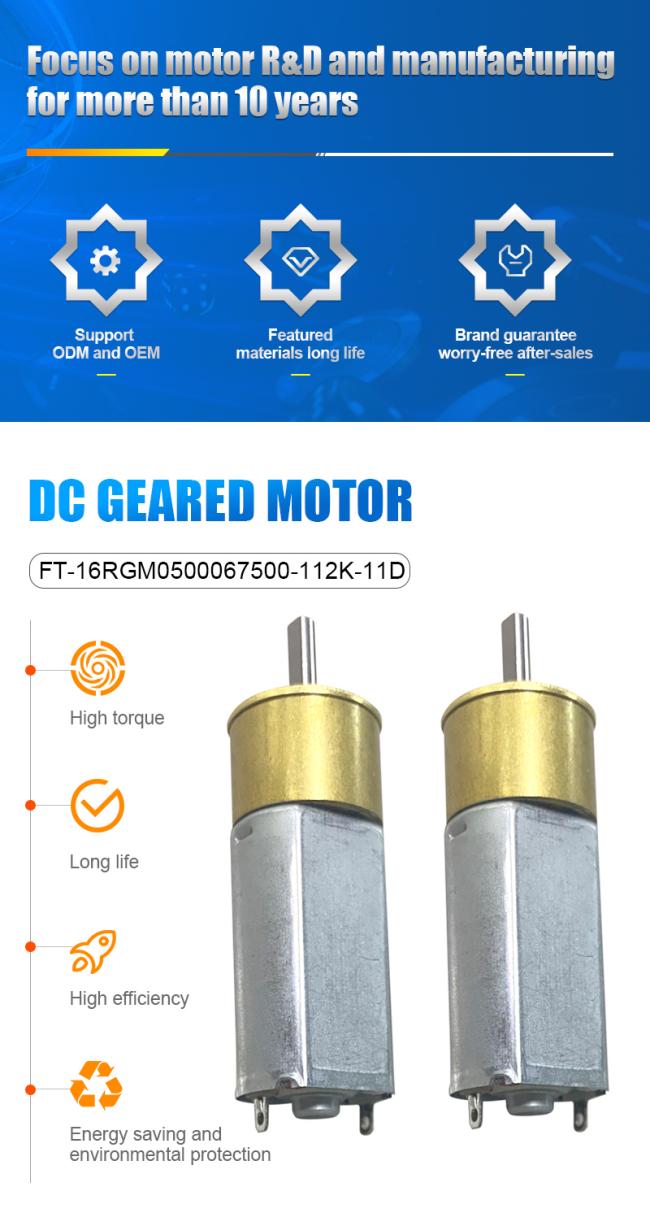

FT-16RGM0500067500-112K-11D NdFeB DC Motor
1. Main voltage: 3-24VDC 2. Typical applications: Automatic door-lock, projector, hairdressing equipment 3. Round Gearbox size: φ16mm*L 4. Torque: 0.05kgf.cm~2.5kgf.cm 5. Direction: CW, CCW 6. Voltage, speed, and shaft can be customized based 7. Encoder 3PPR available
|
Gearbox Data
|
|
|
|
|
|
|||||
|
Number of stages
|
3
|
4
|
5
|
6
|
7
|
|||||
|
Reduction ratio
|
10,14
|
23,28,32,40
|
46,56,65,79,91,112
|
130,159,183,224,257,315
|
365,448,515,631,725,889
|
|||||
|
Gearbox length “L”mm
|
11
|
12.5
|
14
|
15.5
|
17
|
|||||
|
Breaking torque(kgf.cm)
|
1
|
2
|
3
|
4
|
4
|
|||||
|
Gearbox efficiency
|
73%
|
65%
|
59%
|
53%
|
48%
|
|||||
|
Driving Motor Data
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Motor model
|
Rated
Volt.
|
No load
|
|
Load
|
|
|
|
Stall
|
|
|||||||||
|
|
|
Current
|
Speed
|
Current
|
Speed
|
Torque
|
Output
power
|
Torque
|
Current
|
|||||||||
|
|
V
|
mA
|
r/min
|
mA
|
r/min
|
gf.cm
|
W
|
gf.cm
|
mA
|
|||||||||
|
FT-050-006-9000
|
6
|
≤60
|
9000
|
≤260
|
7500
|
8
|
0.6
|
≥30
|
≥550
|
|||||||||
|
FT-050-006-12000
|
6
|
≤70
|
12000
|
≤300
|
9300
|
10
|
1.0
|
≥40
|
≥1000
|
|||||||||
|
FT-050-012-9000
|
12
|
≤30
|
9000
|
≤130
|
7500
|
8
|
0.6
|
≥30
|
≥300
|
|||||||||
|
FT-050-012-12000
|
12
|
≤50
|
12000
|
≤200
|
10000
|
10
|
1.0
|
≥40
|
≥600
|
|||||||||
|

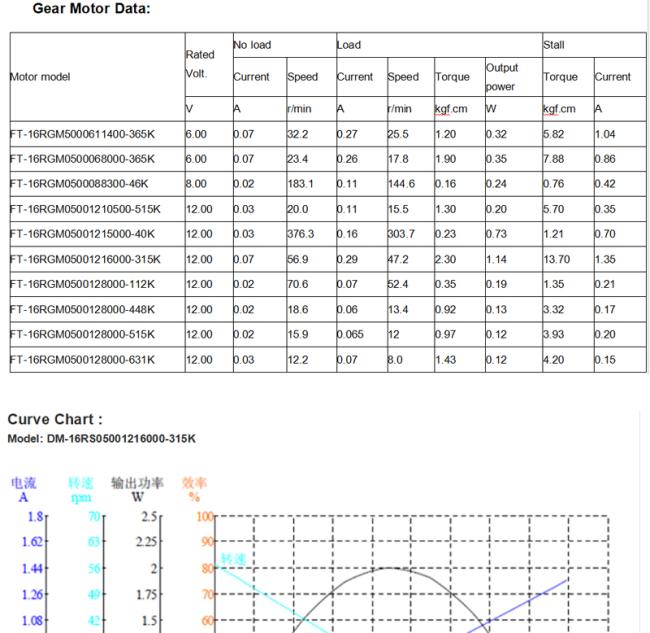

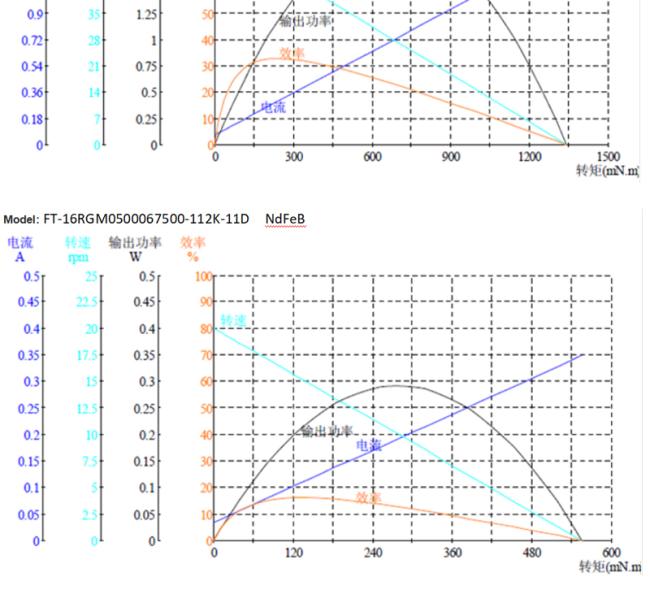

Motor model
|
Rated Volt
|
No load
|
|
Load
|
|
|
|
Stall
|
|
|||||
|
|
|
Current
|
Speed
|
Current
|
Speed
|
Torque
|
Output power
|
Torque
|
Current
|
|||||
|
|
V
|
A
|
r/min
|
A
|
r/min
|
kgf.cm
|
W
|
kgf.cm
|
A
|
|||||
|
FT-16RGM5000611400-365K
|
6.00
|
0.07
|
32.2
|
0.27
|
25.5
|
1.20
|
0.32
|
5.82
|
1.04
|
|||||
|
FT-16RGM0500068000-365K
|
6.00
|
0.07
|
23.4
|
0.26
|
17.8
|
1.90
|
0.35
|
7.88
|
0.86
|
|||||
|
FT-16RGM0500088300-46K
|
8.00
|
0.02
|
183.1
|
0.11
|
144.6
|
0.16
|
0.24
|
0.76
|
0.42
|
|||||
|
FT-16RGM05001210500-515K
|
12.00
|
0.03
|
20.0
|
0.11
|
15.5
|
1.30
|
0.20
|
5.70
|
0.35
|
|||||
|
FT-16RGM05001215000-40K
|
12.00
|
0.03
|
376.3
|
0.16
|
303.7
|
0.23
|
0.73
|
1.21
|
0.70
|
|||||
|
FT-16RGM05001216000-315K
|
12.00
|
0.07
|
56.9
|
0.29
|
47.2
|
2.30
|
1.14
|
13.70
|
1.35
|
|||||
|
FT-16RGM0500128000-112K
|
12.00
|
0.02
|
70.6
|
0.07
|
52.4
|
0.35
|
0.19
|
1.35
|
0.21
|
|||||
|
FT-16RGM0500128000-448K
|
12.00
|
0.02
|
18.6
|
0.06
|
13.4
|
0.92
|
0.13
|
3.32
|
0.17
|
|||||
|
FT-16RGM0500128000-515K
|
12.00
|
0.02
|
15.9
|
0.065
|
12
|
0.97
|
0.12
|
3.93
|
0.20
|
|||||
|
FT-16RGM0500128000-631K
|
12.00
|
0.03
|
12.2
|
0.07
|
8.0
|
1.43
|
0.12
|
4.20
|
0.15
|
|||||
