DC 12V 2-200rpm Robot Electric Motor High Torque Micro DC Spur Gear Motor

Price Negotiable

Price: Negotiable

MOQ: 1000 Pieces

Delivery Time: 15-30 days/Negotiable

Brand: FUTENG

Product Description

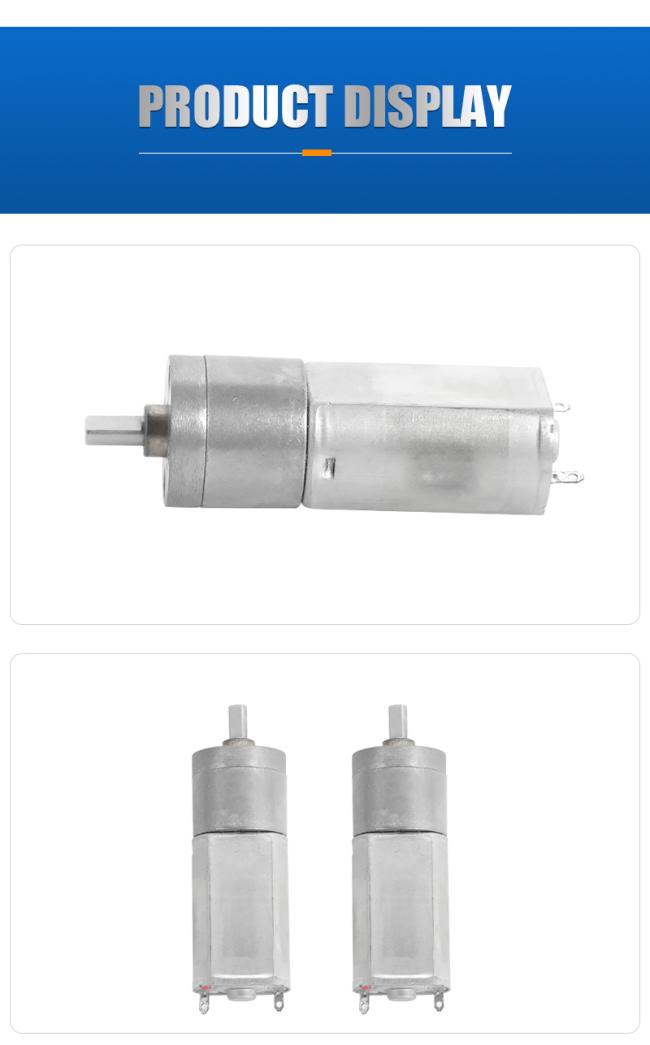

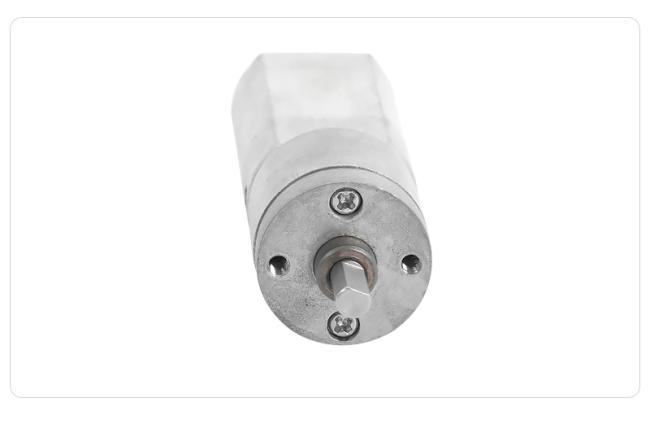

Dc 12V 2-200rpm High Torque For Spur Gearbox Motor Micro DC Spur Gear Motor For Robots

FT MOTOR

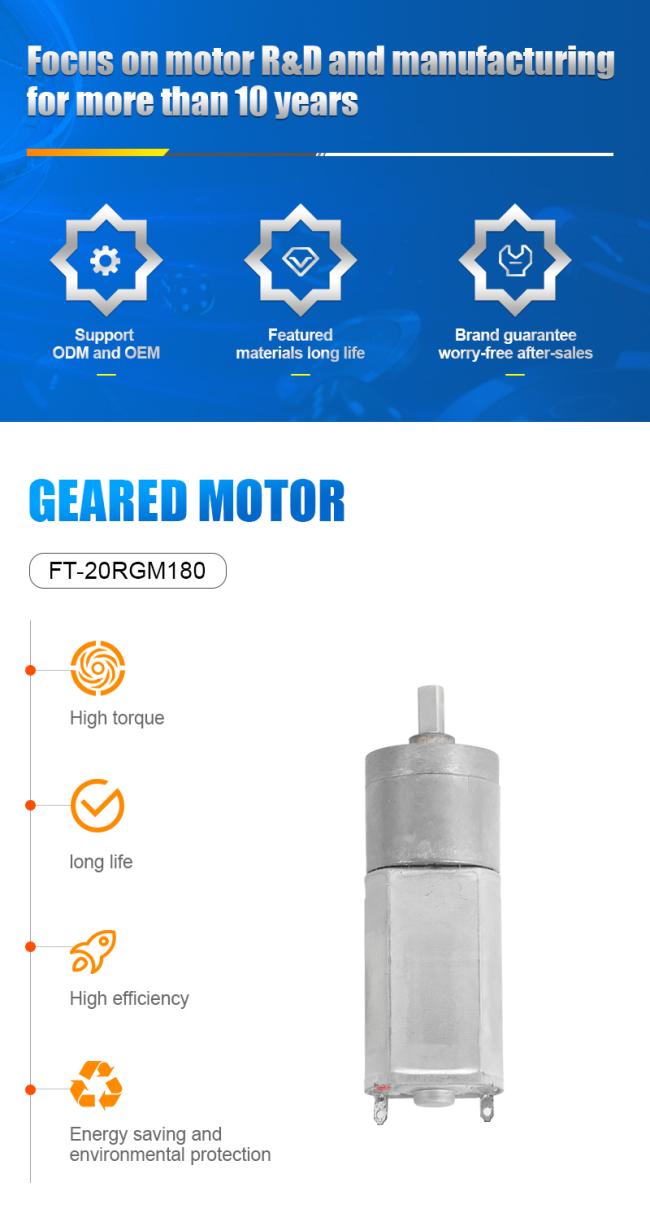

Geared motor model: FT-20RGM180 Gearbox diameter: Ø20mm Voltage: 1-24V Speed: 1rpm-1000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

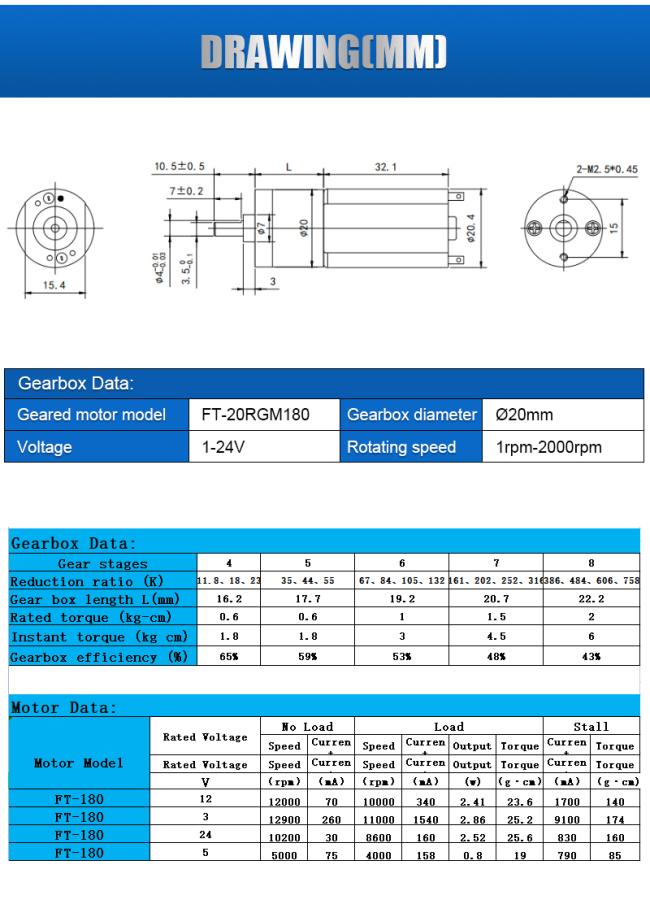

Gearbox Data:
Gear stages	4	5	6	7	8
Reduction ratio (K)	11.8,18,23	35,44,55	67,84,105,132	161,202,252,316	386,484,606,758
Gear box length L(mm)	16.2	17.7	19.2	20.7	22.2
Rated torque (kg·cm)	0.6	0.6	1	1.5	2
Instant torque (kg·cm)	1.8	1.8	3	4.5	6
Gearbox efficiency (%)	65%	59%	53%	48%	43%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-180	24	12000	70	10000	340	2.41	23.6	1700	140
FT-180	3	12900	260	11000	1540	2.86	25.2	9100	174
FT-180	24	10200	30	8600	160	2.52	25.6	830	160
FT-180	5	5000	75	4000	158	0.8	19	790	85
