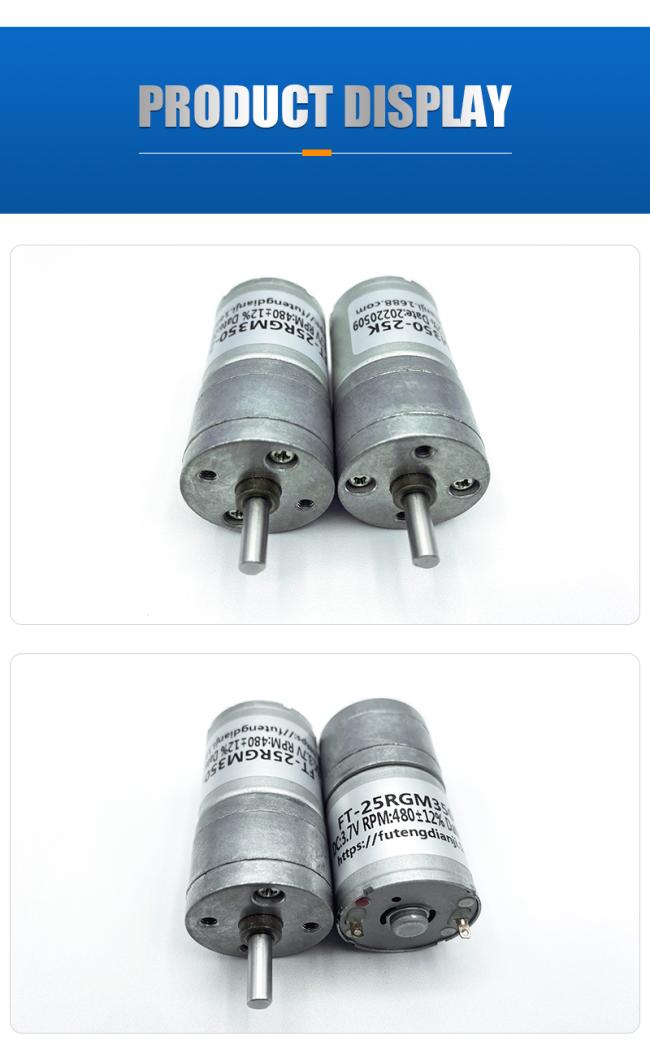

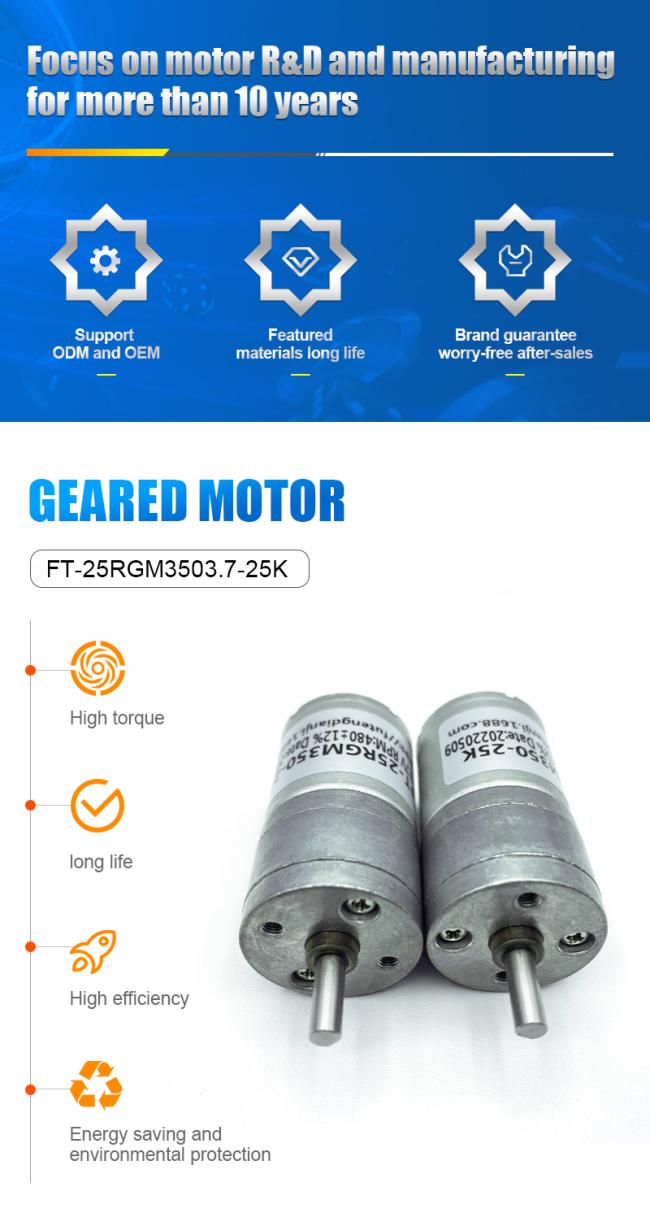

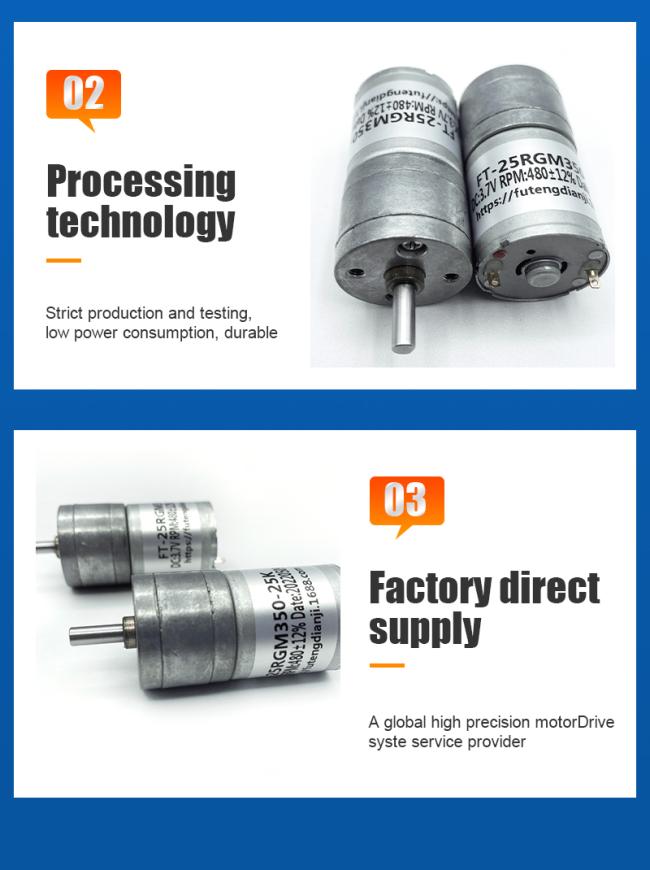

Futeng Factory Wholesale FT-25RGM3503.7-25K Smart Rope Skipping Motor 25mm Gear Box 12V 24V Circular Spur Gear Motor
Price:
Negotiable
MOQ:
1000 Pieces
Delivery Time:
15-30 days/Negotiable
Brand:
FUTENG
Product Description

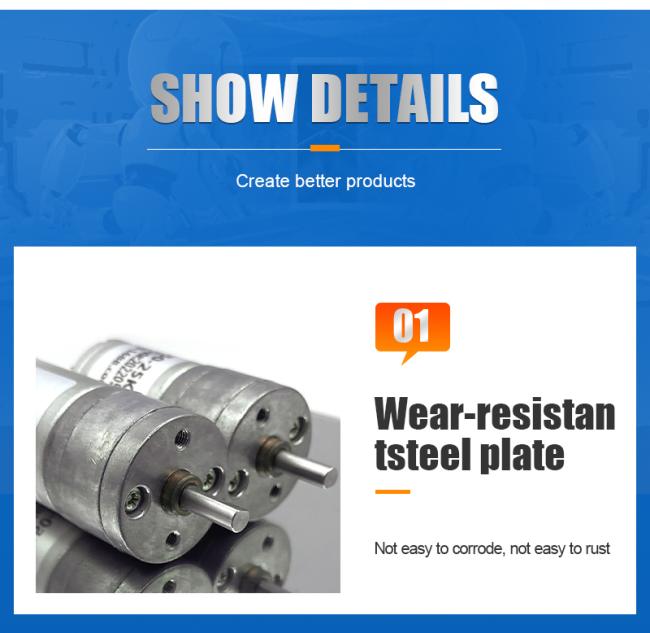

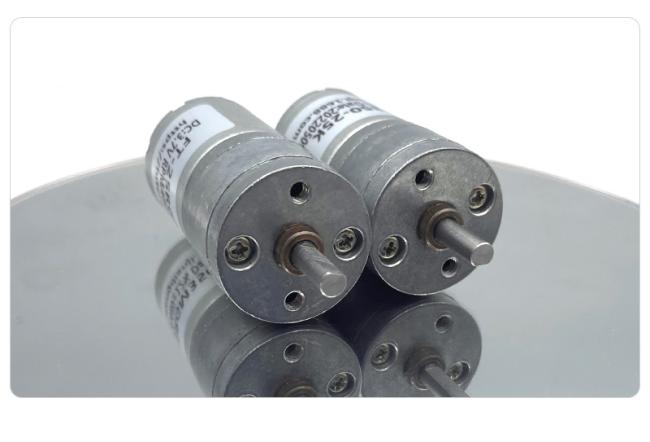

Futeng Factory Wholesale FT-25RGM3503.7-25K Smart Rope Skipping Motor 25mm Gear Box 12V 24V Circular Spur Gear Motor
DC gear motors are widely used:
Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc. |
Gearbox Data:
|
|
|
|
|
|
|
||||||
|
Gear stages
|
3
|
4
|
5
|
6
|
7
|
8
|
||||||
|
Reduction ratio (K)
|
9.3
10.3
11.5
|
20.4,23
25,28
|
45,50,55 62,68
|
99,110,122 136,151,167
|
217,241,268,298 331,368,409
|
478,531,590,656 729,810,900,1000
|
||||||
|
Gear box length L(mm)
|
17.5
|
19
|
21
|
23
|
25
|
27
|
||||||
|
Rated torque (kg·cm)
|
0.4
|
0.5
|
1
|
1.7
|
2
|
2
|
||||||
|
Instant torque (kg·cm)
|
1.2
|
1.5
|
3
|
4
|
6
|
6
|
||||||
|
Gearbox efficiency (%)
|
75%
|
65%
|
59%
|
53%
|
48%
|
43%
|
||||||
|
Motor Data
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Motor Model
|
|
No Load
|
|
Load
|
|
|
|
Stall
|
|
|||||||||
|
Motor Model
|
Rated Voltage
|
Speed
|
Current
|
Speed
|
Current
|
Output
|
Torque
|
Current
|
Torque
|
|||||||||
|
|
V
|
(rpm)
|
(mA)
|
(rpm)
|
(mA)
|
(w)
|
(g·cm)
|
(mA)
|
(g·cm)
|
|||||||||
|
FT-350
|
2.5
|
2800
|
17
|
2200
|
60
|
0.073
|
3.3
|
220
|
15
|
|||||||||
|
FT-350
|
12
|
9000
|
30
|
8200
|
90
|
0.44
|
5
|
500
|
50
|
|||||||||
|
FT-350
|
24
|
8000
|
20
|
6300
|
71
|
0.7
|
10
|
190
|
45
|
|||||||||
|
FT-350
|
6
|
6000
|
33
|
4800
|
160
|
0.5
|
10
|
550
|
45
|
|||||||||
FAQ
Q1: Are you trading company or manufacturer?
Q3: Do you have certificates for the motors?
Q4: How is your Quality Control?
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 10years.
Q2: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitablemotor according to our customer's requirements.
Q3: Do you have certificates for the motors?

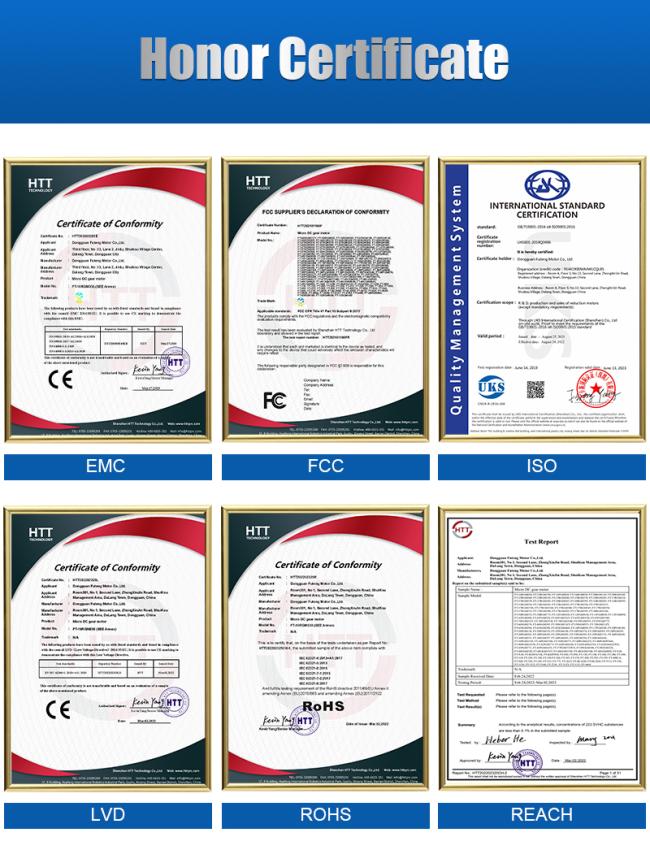

A: Yes. we have CE. FCC, ISO, etc. lf you have the other certificates requirement,we can apply it for you.
Q4: How is your Quality Control?

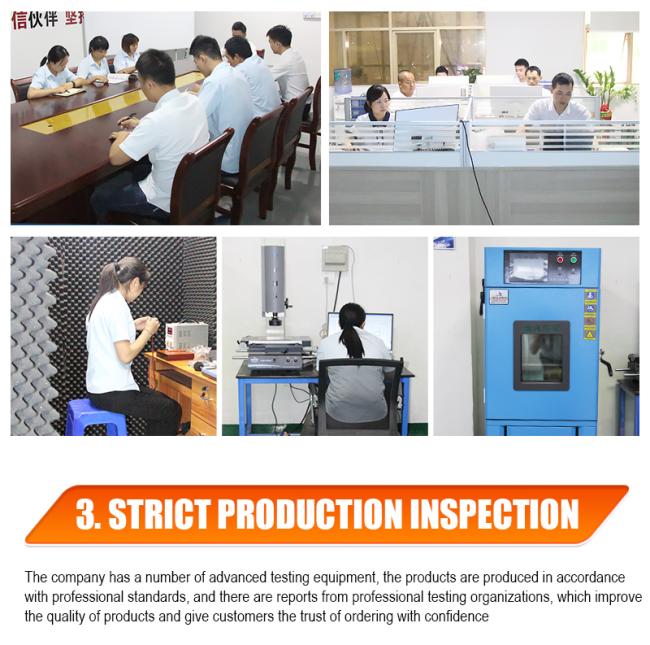

A: We have professional checking staff on every production line process. After finishing the
whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D image Tester, Salt Spray Chamber,LifeTester, Temperature Test Machine, and Noise tester etc.
whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D image Tester, Salt Spray Chamber,LifeTester, Temperature Test Machine, and Noise tester etc.
