High torque gear motor long lifetime micro motors 25mm dc 24v spur geared motor
Price:
Negotiable
MOQ:
1000 Pieces
Delivery Time:
15-30 days/Negotiable
Brand:
FUTENG
Product Description
FT MOTOR

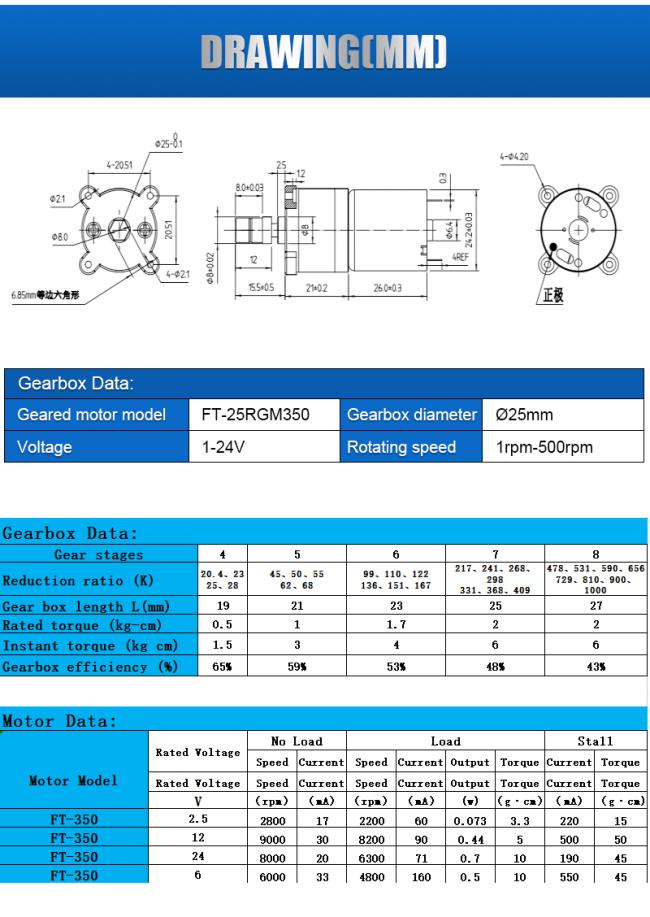

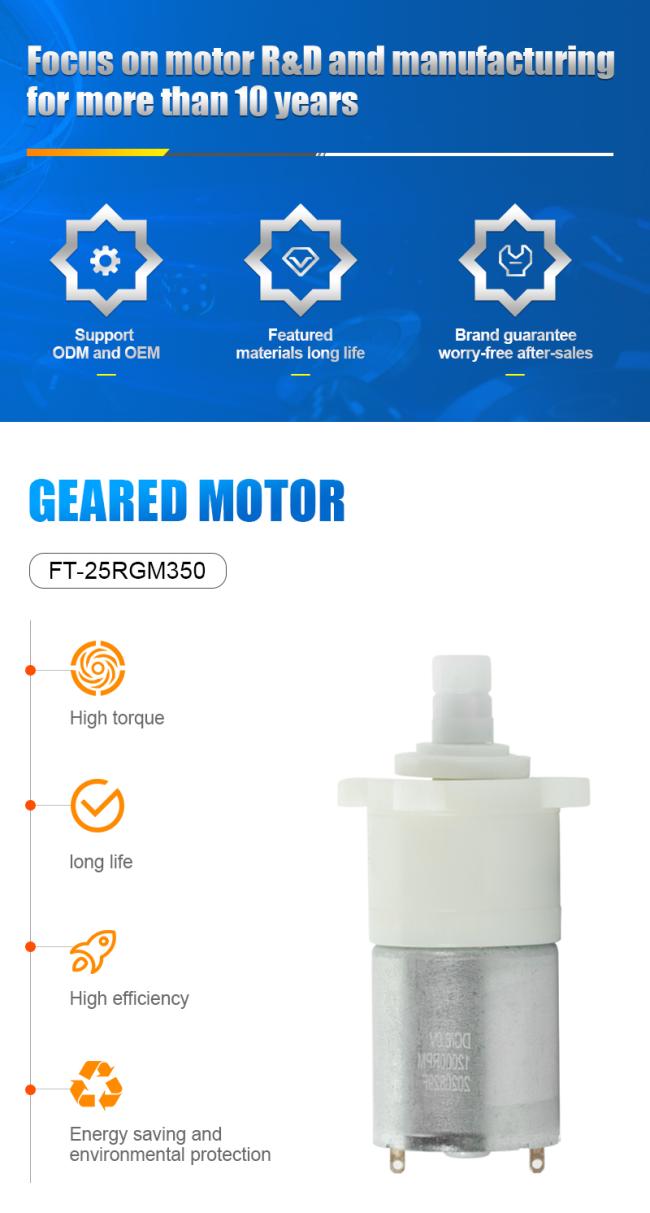

Geared motor model: FT-25RGM350
Gearbox diameter: Ø25mm
Voltage: 1-24V
Speed: 1rpm-500rpm
DC gear motors are widely used:
Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc. Gearbox Data: | ||||||||||||
Gear stages | 3 | 4 | 5 | 6 | 7 | 8 | ||||||
Reduction ratio (K) | 9.3 10.3 11.5 | 20.4、23 25、28 | 45、50、55 62、68 | 99、110、122 136、151、167 | 217、241、268、298 331、368、409 | 478、531、590、656 729、810、900、1000 | ||||||
Gear box length L(mm) | 17.5 | 19 | 21 | 23 | 25 | 27 | ||||||
Rated torque (kg·cm) | 0.4 | 0.5 | 1 | 1.7 | 2 | 2 | ||||||
Instant torque (kg·cm) | 1.2 | 1.5 | 3 | 4 | 6 | 6 | ||||||
Gearbox efficiency (%) | 75% | 65% | 59% | 53% | 48% | 43% | ||||||
Motor Data | ||||||||||||||||||
Motor Model | No Load | Load | Stall | |||||||||||||||
Motor Model | Rated Voltage | Speed | Current | Speed | Current | Output | Torque | Current | Torque | |||||||||
V | （rpm） | （mA） | （rpm） | （mA） | (w) | （g·cm） | （mA） | （g·cm) | ||||||||||
FT-350 | 2.5 | 2800 | 17 | 2200 | 60 | 0.073 | 3.3 | 220 | 15 | |||||||||
FT-350 | 12 | 9000 | 30 | 8200 | 90 | 0.44 | 5 | 500 | 50 | |||||||||
FT-350 | 24 | 8000 | 20 | 6300 | 71 | 0.7 | 10 | 190 | 45 | |||||||||
FT-350 | 6 | 6000 | 33 | 4800 | 160 | 0.5 | 10 | 550 | 45 | |||||||||
