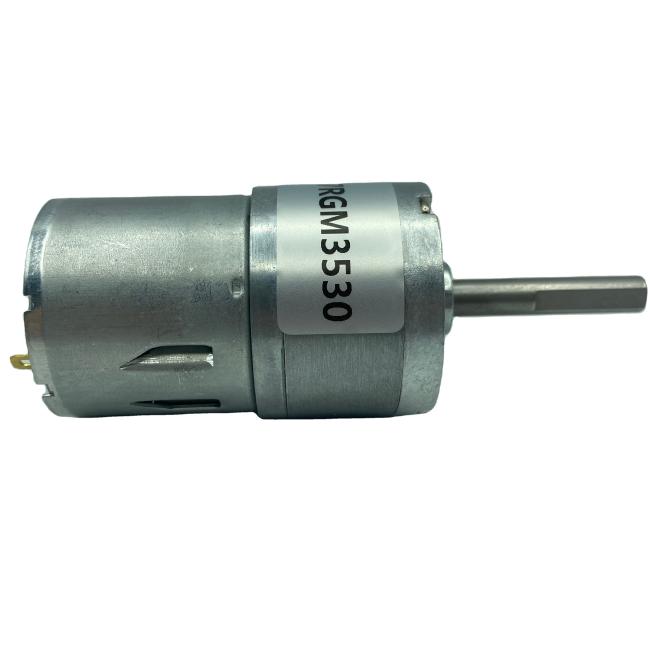

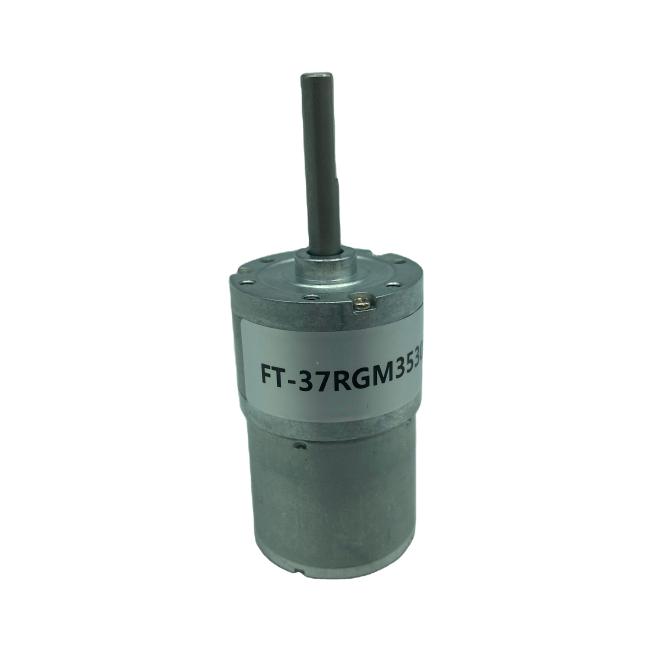

FT-37RGM3530 37mm Diameter Gearbox DC 12V High Torque Center Output Shaft Gear Motor
|
Description Specifications: FT-37RGM3530
|
|
|
Rated Voltage: DC 12V (3-24V Customization ) |
Reduction Ratio:1: 641 ( Customization )
|
|
No-Load Speed: 150RPM (3-800RPM Customization )
|
No-Load Current: 0.15Amp ( Customization )
|
|
Rated Torque: 1.5Kg.cm ( Customization )
|
Rated Current: 0.6Amp ( Customization )
|
|
D Shaped Output Shaft Size: 6*14mm (0.24" x 0.55") (D*L) ( Customization )
|
Gearbox Size: 37x 24.5mm (1.46" x 0.96") (D*L)
|
|
Motor Size: 36.2 x 33.3mm (1.43" x 1.31") (D*L)
|
Mounting Hole Size: M3 (not included) ( Customization )
|
|
Application: Vending equipments, pan camera, slot machine, money detector, coin refund devices, automatic doors, peritoneal machine, toys motor etc. |
|
Features & details
·[ALL-METAL GEARS]:High-temperature
resistance, high abrasion resistance, strong load
capacity, sturdy and durable, effectively protect
the gear box motor body.
·[PURE COPPER WIRE CORE ROTOR]:With
precision winding technology, the geared motor
power instant increased by 30%.
[D SHAPED OUTPUT SHAFT]:Using high
hardness steel, good toughness, impact
resistance, the quality of the bearing and the
service life of the gear motor are improved,
extremely durable.
.[POSITIVE-NEGATIVE ROTATION]:You also
can adjust the speed, but the motor speed can
only be reduced, can not be raised. Low noise and
high torque, such as 10rpm can drive 15
kilograms.
·[Greartisan Gurantee):We only offer high
quality motors! Any quality issues, please feel free
to contact our customer service!
Standard Export Carton & Customzied Packing
Shipping
DHL: 3-5 working days ;
Post: Depends on ship to which country
Q:1.What kind of motors you can provide?
A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 6~80mm and also Dia10~80mm size gear motors.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5. Can I get some sample?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
