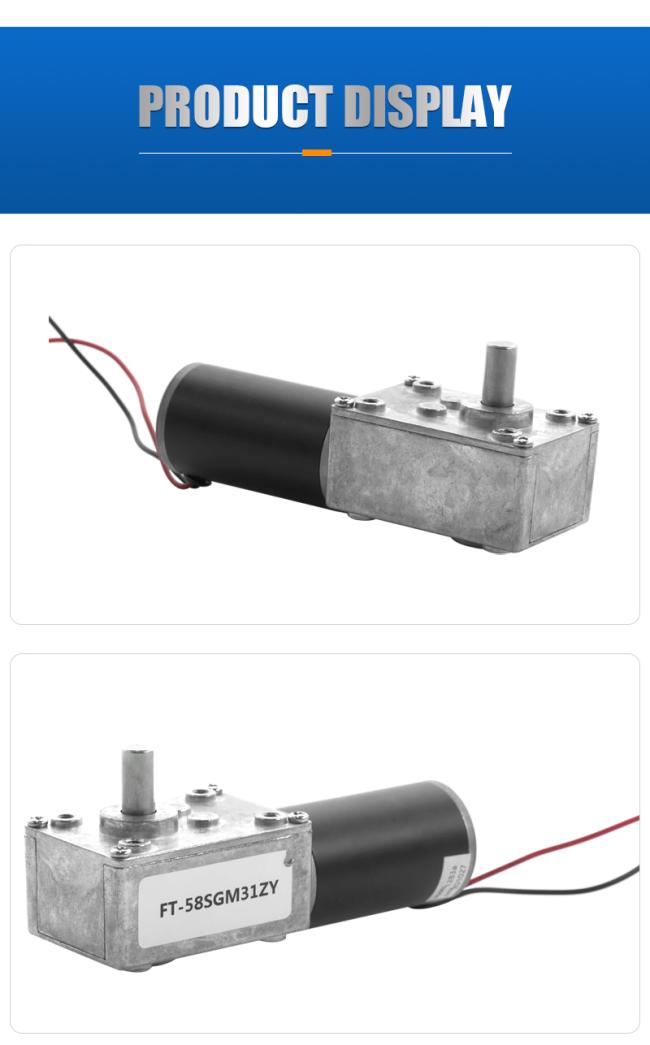

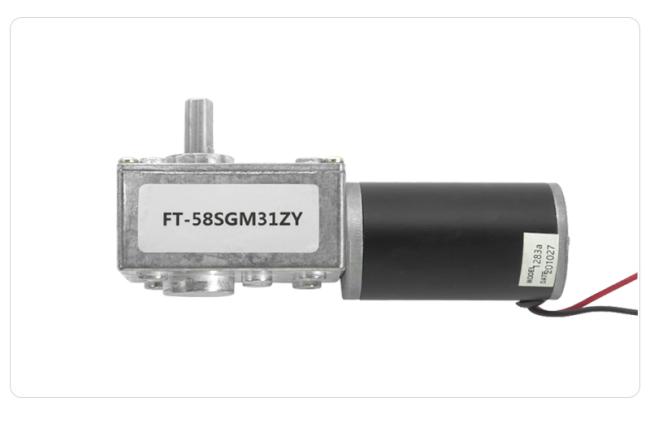

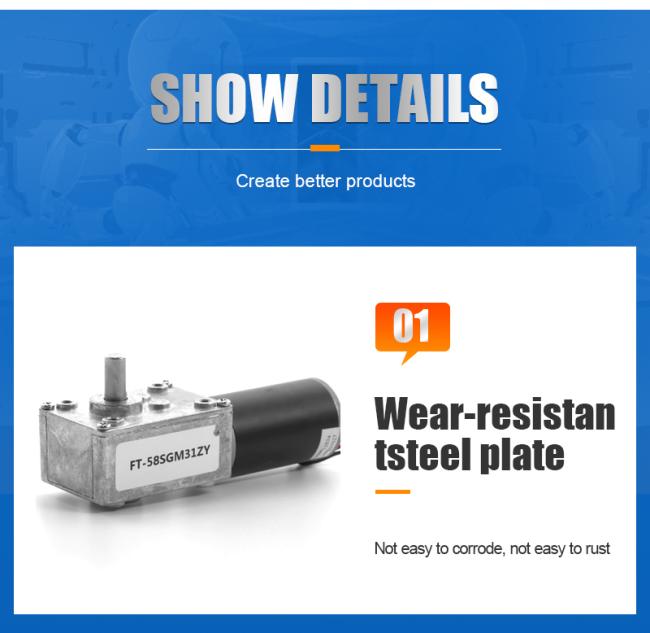

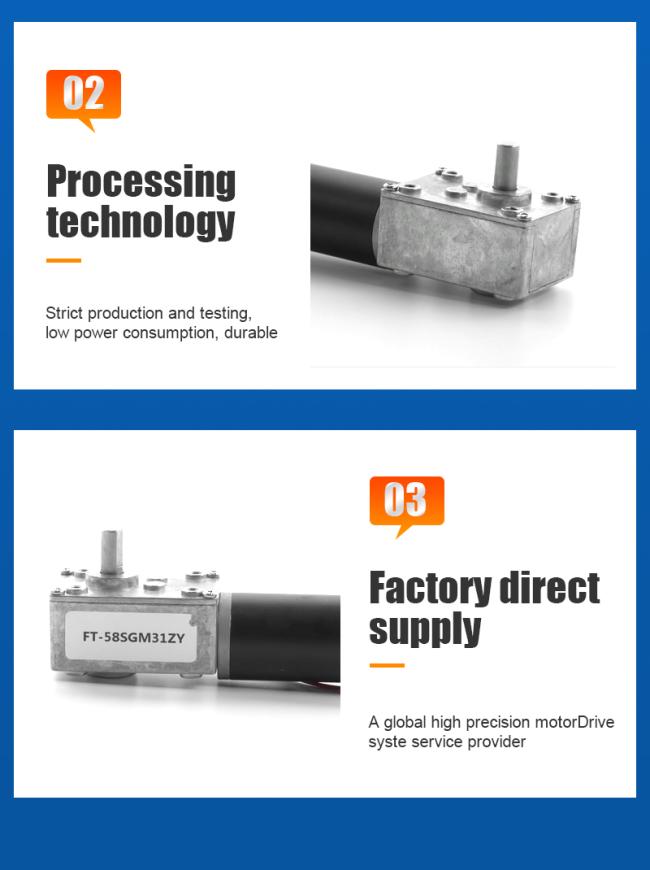

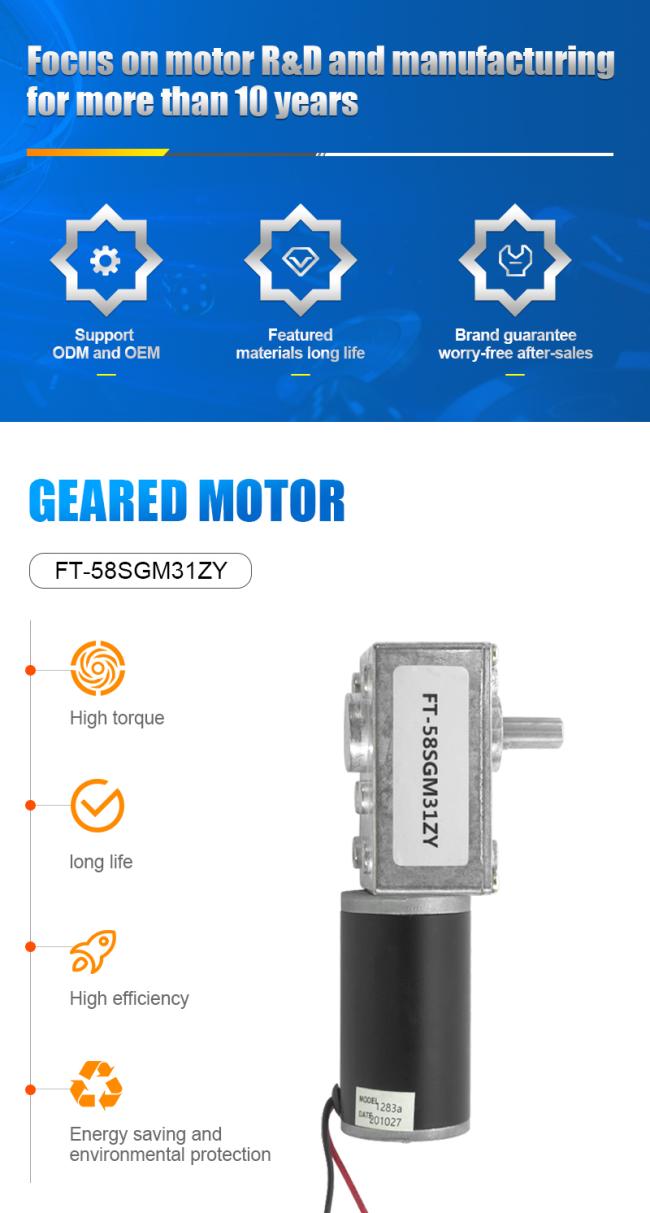

FT-58SGM31ZY 58*40.1mm Double Shaft High Torque 1-600rpm Micro Worm Gear Motor
Price:
Negotiable
MOQ:
1000 Pieces
Delivery Time:
15-30 days/Negotiable
Brand:
FUTENG
Product Description
FT MOTOR
Geared motor model: FT-58SGM31ZY Gearbox diameter: 58×40.1mm Voltage: 1-24V Speed: 1rpm-600rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.
|

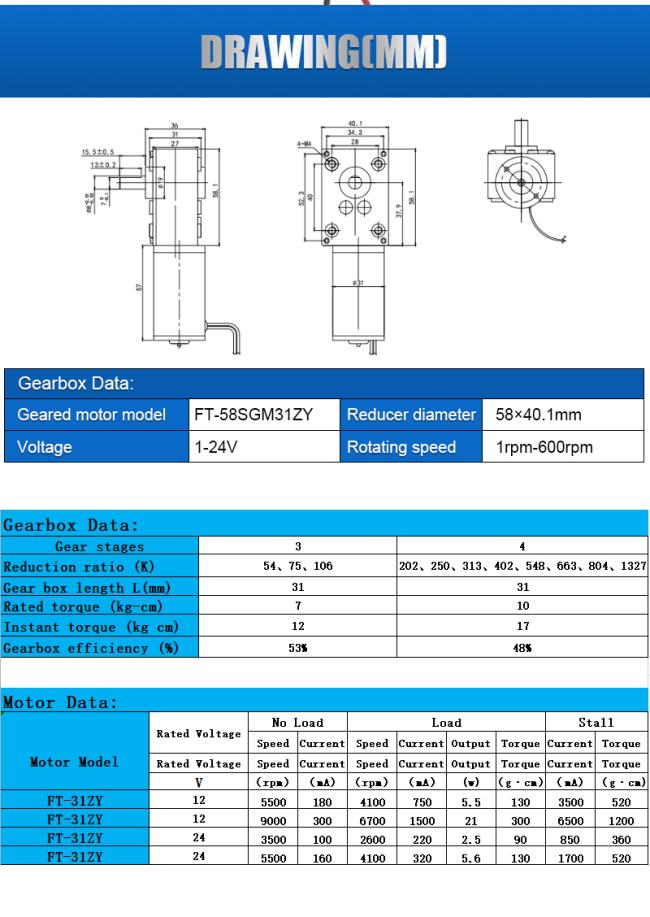

Gearbox Data:
|
|
|
||
|
Gear stages
|
3
|
4
|
||
|
Reduction ratio (K)
|
54,75,106
|
202,250,313,402,548,663,804,1327
|
||
|
Gear box length L(mm)
|
31
|
19
|
||
|
Rated torque (kg·cm)
|
7
|
0.5
|
||
|
Instant torque (kg·cm)
|
12
|
1.5
|
||
|
Gearbox efficiency (%)
|
53%
|
/
|
||
|
Motor Data
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Motor Model
|
|
No Load
|
|
Load
|
|
|
|
Stall
|
|
|||||||||
|
Motor Model
|
Rated Voltage
|
Speed
|
Current
|
Speed
|
Current
|
Output
|
Torque
|
Current
|
Torque
|
|||||||||
|
|
V
|
(rpm)
|
(mA)
|
(rpm)
|
(mA)
|
(w)
|
(g·cm)
|
(mA)
|
(g·cm)
|
|||||||||
|
FT-31ZY
|
12
|
5500
|
180
|
4100
|
750
|
5.5
|
130
|
3500
|
520
|
|||||||||
|
FT-31ZY
|
12
|
9000
|
300
|
6700
|
1500
|
21
|
300
|
6500
|
1200
|
|||||||||
|
FT-31ZY
|
24
|
3500
|
100
|
2600
|
220
|
2.5
|
90
|
850
|
360
|
|||||||||
|
FT-31ZY
|
24
|
5500
|
160
|
4100
|
320
|
5.6
|
130
|
1700
|
520
|
|||||||||
