1D 2D Auto Detective Barcode Scanner Module Industrial Grade For Conveyor Assembly Lines
Price:
$26-$30
MOQ:
1
Delivery Time:
1-7days
Brand:
HONORWAY
Product Description
High Motion Tolerance 2M/S Fixed Mount 1D 2D Auto Detective Barcode Scanner Module

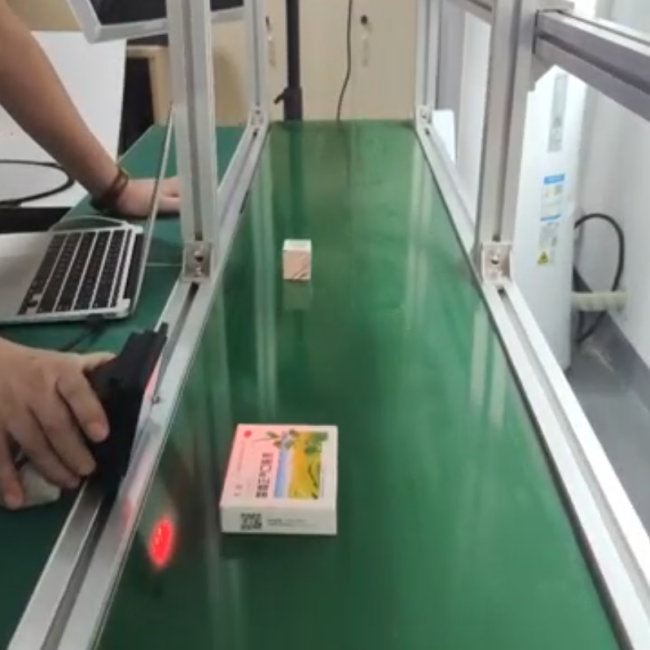

Designed for conveyor assembly lines, this industrial-grade barcode scanner module delivers exceptional performance for dynamic scanning applications with superior motion tolerance capabilities.
Product Overview
The HW-3386D is a high-performance embedded 1D/2D barcode scanning module engineered for demanding industrial environments. It features exceptional reading performance for moving barcodes, capable of stable decoding at speeds up to 2 meters per second. With 360° omni-directional scanning capability, barcodes can enter the reading window from any angle without dead zones. Unlike competing products limited to horizontal or vertical movement tolerance, the HW-3386D effectively resolves dynamic barcode scanning challenges in real-world applications.
Key Features
- Superior Motion Tolerance: 360° dead-angle-free scanning of moving 1D and 2D barcodes
- Megapixel-Level Resolution: 1280×800 resolution for decoding high-density barcodes
- User-Friendly Structural Design: Rugged housing with acrylic protection and raised scanning window for easy integration
- Precise Short-Range Scanning: Specular reflection optical design optimizes close-distance reading
- Large Reading Window: Accommodates various barcode sizes and supports mobile phone screen scanning
- High Cost-Effectiveness: Domestic manufacturing ensures reliable quality and competitive pricing
Technical Specifications
Reading Performance
| Image Sensor | CMOS global shutter |
| Resolution | 1MP, 1280×800 pixels |
| Decoding Capacity | Supports paper and screen barcodes including QR, MicroQR, PDF417, DataMatrix, Code 128, EAN-13, Code 39, UPC-A, and more |
| Precision | 4mil (1D); 5mil (2D) |
| Light Source | Red LED for illumination |
| View Angle | 64°(H) × 50°(V) |
| Scan Angle | Rotation 360°, tilt ±55°, skew ±55° |
| Min Contrast | 20% |
| Motion Tolerance | 2M/S |
| Trigger Mode | Continuous, Motion sensing, Host Mode |
Mechanical and Electrical
| Interface | USB, USB COM, TTL, RS232 |
| Working Voltage | DC 5V ±10% |
| Current | Max 450mA (working), 190mA (typical) |
| Dimensions | 114.5(W) × 93.5(D) × 49.5(H) mm |
| Weight | 160g (without cable) |
| Indication | Blue LED and speaker |
Environmental Requirements
| Working Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% (Non-condensing) |
| Light Brightness | 0-100,000 LUX |
Accessories
Includes USB cable (1.5M); other cable types available by customization
Application Scenarios
With optimized structure, built-in reflector for extended optical path, high-speed image sensor, and fast-decoding main control chip, the HW-3386D is ideal for:
- Logistics Conveyor Belt Sorting: Rapid and accurate barcode scanning during goods transit
- Factory Assembly Line Operations: Real-time barcode decoding for MES system input and product traceability
- Access Control & Barrier Systems: Superior motion tolerance eliminates precise alignment requirements
- Self-Service Terminal Systems: Large scanning window and omni-directional design for efficient retail checkout and mobile payment processing
