1D 2D QR Screen Auto Detective Barcode Scanner Module With RS232 UART For Kiosk
Price:
12
MOQ:
2
Delivery Time:
3-7days
Brand:
HONORWAY
Product Description

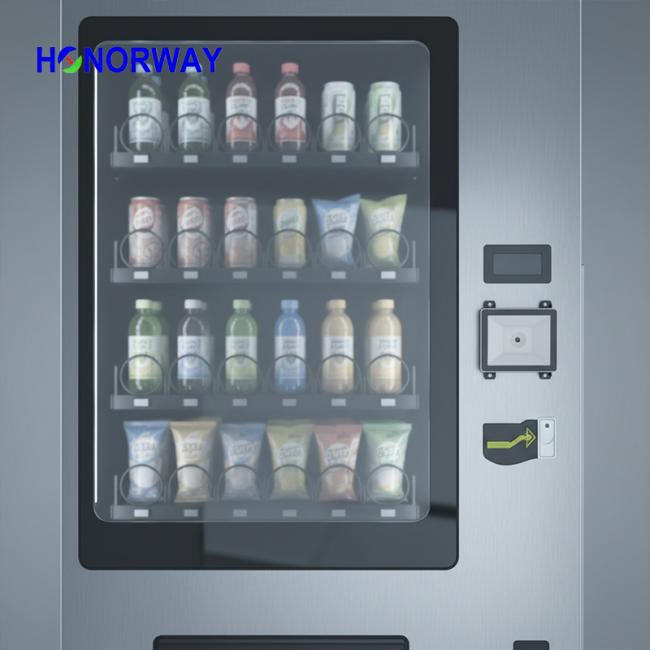

HW-1870S Highly Cost-effective 1D 2D QR Screen Auto Detective Barcode Scanner Module
The HW-1870S is an ideal choice for developers and system integrators seeking a versatile barcode scanning solution for both printed and screen-displayed 1D and 2D barcodes. This cost-effective embedded barcode reader delivers reliable scanning performance without compromising on functionality.
Flexible Integration Options
Equipped with multiple interface options including USB, TTL, and RS232, this module offers flexible integration for a wide range of industrial and commercial applications. The module features a 6-pin 1.25mm pitch connector and a 12-pin FFC connector, providing expanded I/O capabilities for custom implementations. Custom cables are available upon request for projects requiring RS232 interface with DB9 connectivity.
Key Features
- Cost-effective performance: Strikes the right balance between affordability and reliable scanning
- Auto-trigger mode: Integrated imaging sensor enables hands-free operation
- Durable protective cover: Comes with a transparent acrylic window to safeguard the camera
- Flexible connectivity: Supports multiple interfaces with customizable cabling options
- Compact design: Features evenly distributed mounting holes for easy installation
Technical Specifications
| Image Sensor | CMOS |
| Exposure | Roller shutter |
| Resolution | 0.3MP 640*480 pixels |
| Decoding Capacity | Supports paper and screen barcodes 2D: QR, PDF417, MICROPDF417, DATAMATRIX, etc. 1D: UPC-A, UPC-E, EAN-13, ISBN10, ISBN13, EAN-8, CODE39, CODE 11, CODE 93, CODE128, INTERLEAVED25, CODE 32, TRIOPTIC39, GS1_128, CODABAR, MSI, CHINA POST, TELEPEN, RSS, GS1_DATABAR, GS1_DATABAR_EXP, etc. |
| Precision | 5mil |
| Light Source | LED(630nm±10nm) |
| View Angle | 76.7°(H) x 53.4°(V) |
| Scan Angle | Rotation 360°, tilt ±57°, skew ±57° |
| Min Contrast | 25% |
| Typical DOF | 15-100mm (5mil code39) 15-150mm (10mil code39) 15-110mm (5mil UPCA) 15-120mm (10mil UPCA) 25-150mm (15mil QR) 15-150mm (8mil QR) 12-110mm (5mil PDF417) 11-130mm (8mil Data Matrix) |
| Interface | USB (HID, COM), TTL, RS232/RS485 (optional) |
| Working Voltage | DC 5V±5% |
| Current | 150mA (Max), 90mA (working), 1mA (standby) |
| Dimensions | 65*61*28mm |
| Weight | 35g (without cable) |
| Indication | Buzzer & LED |
| Working Temperature | -30~60℃ |
| Storage Temperature | -40~70℃ |
| Humidity | 5%-95% (Non-condensing) |
| Light Immunity | 0~100,000 Lux |
| Drop Test | 1.8M (6ft) |
Performance may be impacted by bar code quality and environmental conditions
