Waterproof Outdoor Led Display Board screen Video Wall P2.5 P3 Digital Advertising

Guide Outdoor fixed installation led screens are mainly used for commercial advertising, information display, news release, and other occasions. They have the following characteristics ,High brightness: The outdoor environment has complex lighting conditions, especially under direct sunlight. Led display need to have sufficient brightness to ensure display effect.

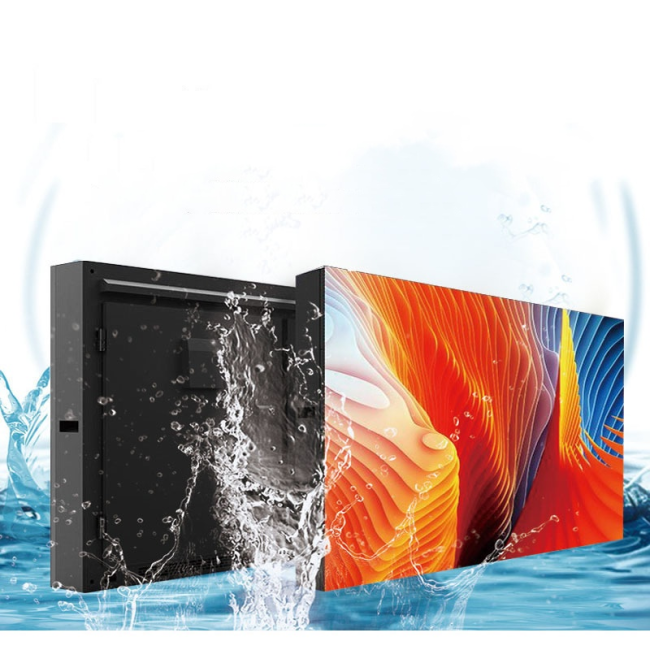

High protection level: Due to the various outdoor environments they face, including rain, snow, freezing, high temperature, etc., outdoor LED screens need to have a high protection level, such as IP65 or higher.

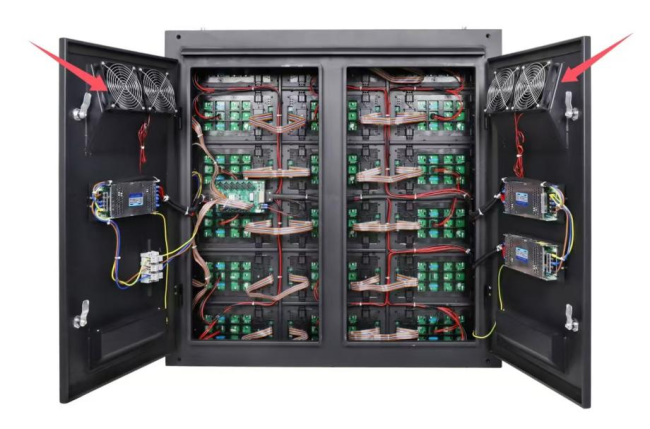

Good heat dissipation system: Long-term operation and outdoor environment can cause the temperature of led display to rise. A good heat dissipation system can effectively avoid screen damage caused by overheating.Stable performance: Regardless of changes in environmental conditions, Led video panel need to maintain stable operation, including stable color performance, stable brightness, and good image quality.

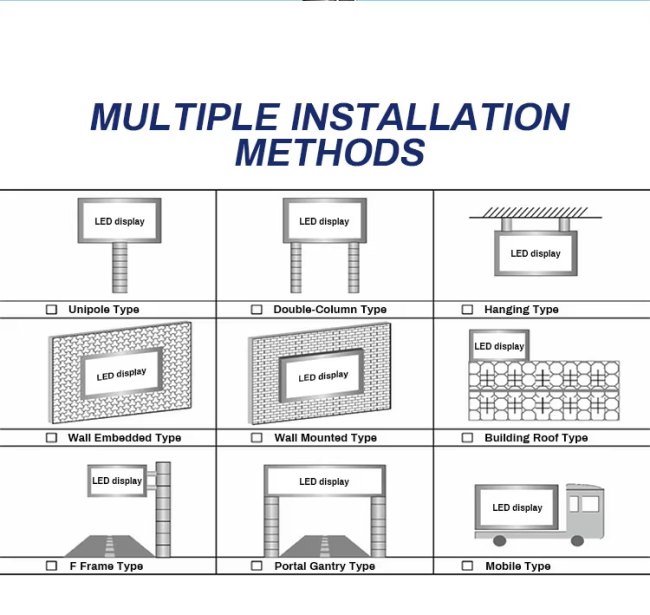

Guide outdoor Led advertising screens come with a variety of installation options to suit different environments, including wall-mounted, freestanding, and suspended setups. To ensure a seamless installation process, we offer complimentary installation blueprints tailored to each client’s specific site conditions. Our expert team assesses the installation environment and provides detailed diagrams, making it easier for clients to visualize and execute the setup. This personalized service not only enhances the efficiency of the installation but also guarantees optimal performance and visibility of the led billboard

Application

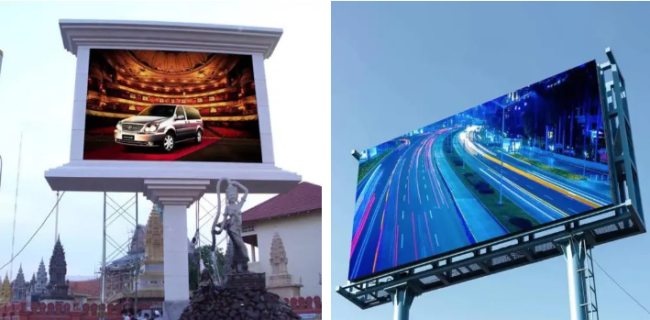

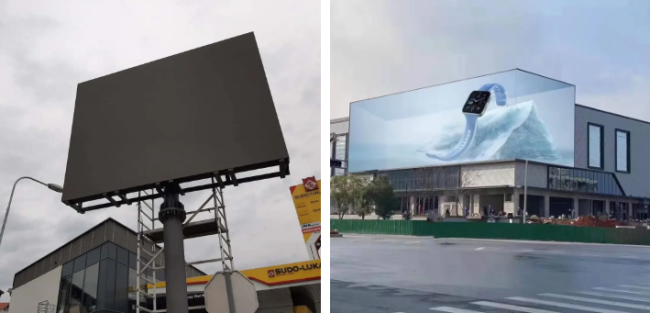

Outdoor fixed installation LED screens are widely used in all kinds of public places and commercial places, the following are some common application scenarios: Commercial advertising: For example, it is installed on the outer wall or roof of commercial centers, shopping plazas, hotels, office buildings, etc. It is used to release commercial advertisements and increase the exposure rate. Information dissemination: In public places such as municipal squares, stations, airports, docks, etc., led display screens can be used to disseminate real-time information, such as weather, traffic, news, etc. Road sign indication: In large transportation hubs, highways, city roads, etc., led billboard can be used to display road condition information and guide traffic. City lightening: At the landmark buildings or attractions in the city, the flexible display of led screen can enhance the city image and increase the night landscape effect. Educational Institutions: In schools or educational institutions, led video wall can be used to release campus news, announcements, teaching information, and so on.

Parameters

Model	P2.5	P3
LED Type	SMD1415	SMD1415
Pixel Pitch (mm)	2.5	3
Pixel Density (dots/m)	160,000	111,111
Module Size (mm)	320*160/160*160	192*192
Cabinet Size (mm)	Customized	Customized
Cabinet Weight (KGs)	40kg/m²	40kg/m²
Cabinet material	outdoor iron cabinet	outdoor iron cabinet
Refresh Rate (HZ)	3840	3840
Brightness (CD/m)	5500cd/m²	5500cd/m²
Average Power (W/m)	280	280
Driving Method	l/16s	l/16s
Viewing Angles (H/V)	160°/140°	160°/140°
IP rate	IP65	IP65
Working Humidity (RH)	10%-95%
Working Temperature (°C)	—20°C~60°C
Maintenance  Types	front/rear
Led control system	Nova
Control method	Synchronous or Asynchronous
