China Modular LED Panels Wall Waterproof Cold Resistant Guide Visual P3.91 Outdoor Screen Display for sale

Modular LED Panels Wall Waterproof Cold Resistant Guide Visual P3.91 Outdoor Screen Display

Price Negotiable

Price: Negotiation

MOQ: 1

Delivery Time: 15 days

Brand: Guide Visual

Product Description

Key Features: .7680Hz high refresh rate for ultra-smooth, flicker-free visuals, perfect for live broadcasts andprofessional events . Dual power & signal backup to ensure stable performance without blackouts. Lightweight and durable cabinet with a quick-lock system, enabling fast installation and dismantling .Front and rear maintenance design for flexible setup and easy servicing . Seamless splicing and excellent color uniformity for a stunning visual experience. Hard Link connection system for stronger panel stability, better alignment, and zero signal delay. Equipped with Nova A5plus control system, ensuring superior image processing, accurate colorreproduction, and reliable performance . Modular design for easy replacement and efficient maintenance. High brightness and waterproof design,ideal for both indoor and outdoor rental applications Led screen module parameter
Item	Cargo description
Module size	250*250 mm
Module dots	64*64
Pixel pitch	3.9mm
Led screen module parameter
Item	Cargo description
Cabinet size	500*1000mm
Cabinet dots	128*256
Cabinet material	die casting aluminum
Cabinet weight	13kg
Led screen module parameter
Item		Specifications
Colour grayscale		32 bit
Led chip		kinglight smd1415 black 3 in 1
Gray scale per colour		4096-65535
Refresh rate		7680 HZ
Driving type		1/32 Scan
Signal transmission distance		Cats cable: <100m single mode fiber: < 10km
Brightness		4500-5000
Optimal horizontal viewing angle		160°
Optimal vertical viewing angle		160°
AC input voltage		AC 110 V
AC input frequency		50/60 HZ
AC input power typical value		250w/sqm
Storage temperature		From -25C° to 65C°
Work temperature		From -20C° to 50C°
IP rating		IP65 front/rear
Storage humidity		10%-80% non -condensation RH
Working humidity		10%-80% non -condensation RH
Video Signal Source		Cable TV, DVD, VCD, PC, rgbhv, YUV, YC, composite, video
Playback Mode		An alternate or arbitrary combination of video, animation, text information, etc
Image Regulation		White Balance/contrast/visual correction/backlight regulation/single module tuning brightness
Image Switching		VGA synchronous with the frame
Blind spot rate		<0.0001 (like a meta-failure rate/discrete state)
Signal processing capability		Not less than 10 bit
Lifetime Typical value		100,000 Hr

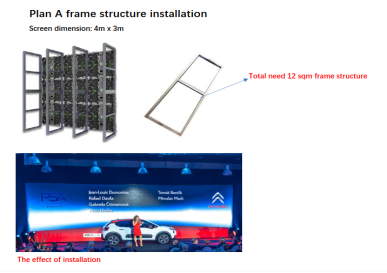

Two methods for set up

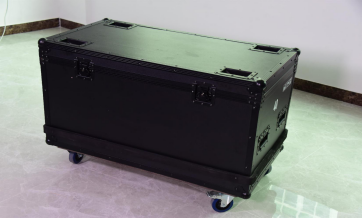

Package for led display
Package is in the flight case for the led display, 6 pcs or 8 pcs can be put into 1 flight case,the flightcase colour can choose ( red ,black etc)

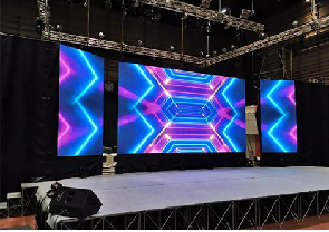

The application for part of the led display

Why Choose Guide Visual G10
Factory-direct LEDsolution -backed by professional technical support, competitive price,and consistent quality assurance from Guide Visual.Professional factory support - direct price,stable quality
