Guide Visual Professional Stage Led Screen Rental Solutions Designed to Enhance Audience Engagement at Concerts Conferences and Exhibitions
GS Series P3.91 – Indoor & Outdoor Rental LED Display
Engineered for high‑impact events, from stadium concerts to exhibition halls.
Why GS Series P3.91?
The GS Series P3.91 is the rental industry’s workhorse. It delivers the perfect balance of resolution, brightness, and durability – whether you’re building a massive outdoor stage or an indoor brand activation.
What makes it different?
We designed the GS Series from the ground up for real‑world rental abuse: fast setup, rough transport, unpredictable weather, and zero tolerance for on‑stage failure.
Core Features (That Actually Matter to Rental Companies)
| Feature | What It Means for You |
|---|---|
| Redundant Power (N+1) | Each cabinet has two power supplies. One fails? The other keeps the show running – no blackout. |
| Dual Signal Input (4 RJ45 ports) | Signal enters from both sides. If a cable fails, the backup path takes over instantly. |
| 7680Hz Refresh Rate | No scan lines on camera. Live broadcast, slow‑mo replays, and close‑ups look flawless. |
| IP65 Front & Rear | Rain, dust, or humidity – use it outdoors without worry. Also protects against spilled drinks at indoor events. |

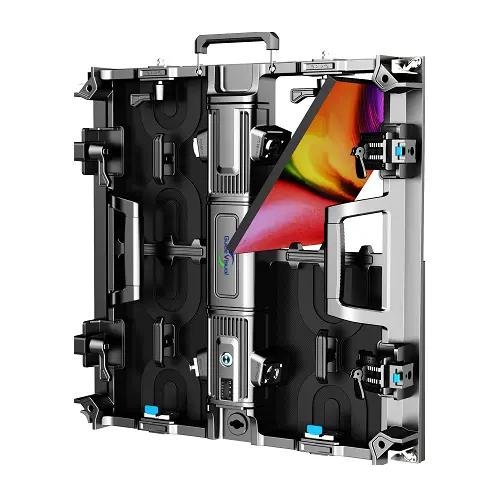

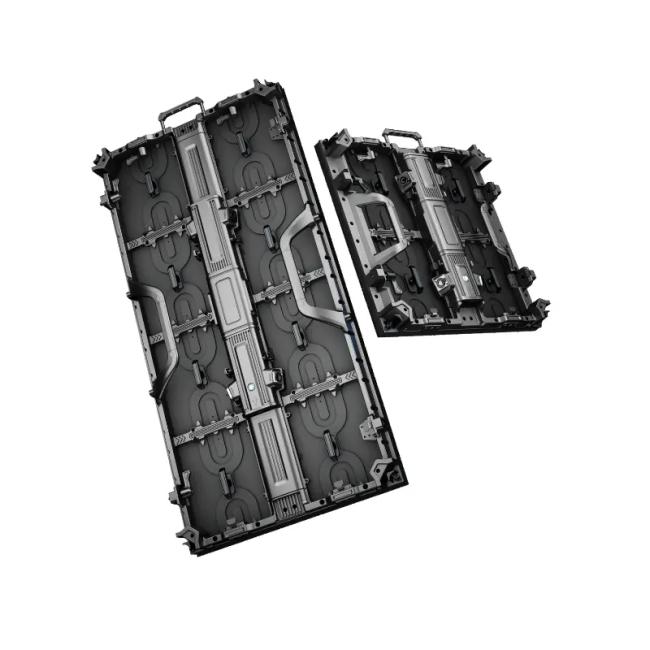

| Die‑Cast Aluminum Cabinet | Light enough (6.5kg / 11.5kg) for one person to carry, strong enough to stack 10m high. |
| Anti‑Collision Module Surface | Protective glue on the LED modules absorbs impacts during transport and setup – fewer broken lamps. |
| Hard‑Wired HUB Design | No loose cables inside the cabinet. Less maintenance, longer life, faster repairs. |
| ±10° Curved Lock | Build flat, concave, or convex arcs without tools. Creative stage shapes made simple. |
Quick Specs (P3.91)
| Parameter | Value |
|---|---|
| Pixel Pitch | 3.91 mm |
| Pixel Density | 65,536 dots/㎡ |
| Cabinet Size | 500×500mm / 500×1000mm |
| Cabinet Weight | 6.5 kg / 11.5 kg |
| Brightness (Indoor) | 600 – 1000 nits (adjustable) |
| Brightness (Outdoor) | 4500 – 5000 nits |
| Refresh Rate | 7680 Hz |
| Viewing Angle | 160° horizontal / 140° vertical |
| IP Rating | IP65 (both sides) |
| Max Power | 650 W/㎡ |
| Avg Power | 250 W/㎡ |
| Control System | NovaStar (compatible) |
| Warranty | 3 years |
Where Rental Companies Use GS Series P3.91
-

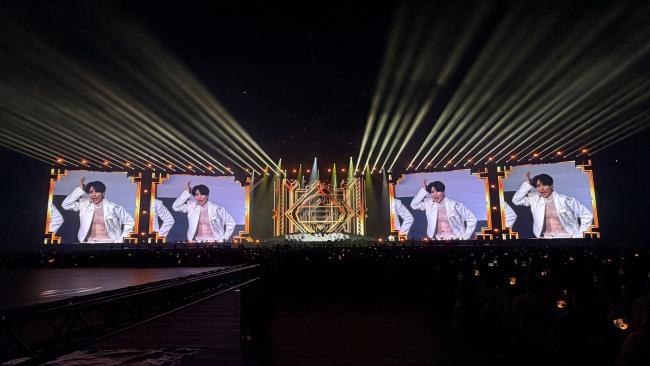

Concerts & Music Festivals – Main stage LED walls, side screens, and delay towers.
-
Corporate Events & Product Launches – High‑impact backdrops with no flicker for video crews.
-
Exhibitions & Trade Shows – Modular booths that reconfigure daily.
-
Sporting Events – Live stats, replays, and sponsor boards.
-
Weddings & Private Parties – Custom‑sized screens that set the mood.
Real‑World Reliability
“We’ve used GS Series P3.91 for 20+ outdoor shows this year. Zero black screens, zero signal drops. The quick lock system cut our setup time by 40%.” – Rental Partner, Germany

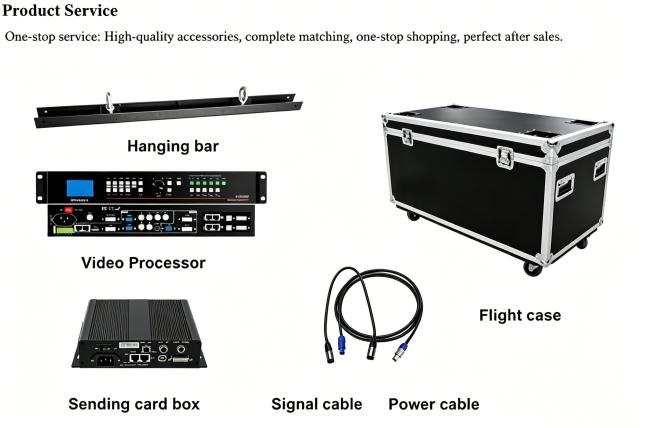

What’s in the Box?
-
LED cabinets (500×500 or 500×1000)
-
Flight cases (8 cabinets per case)
-
Power & signal cables (hard‑wired, no loose parts)
-
Spare modules, receiving cards, and power supplies
-
Quick start guide + online video tutorials
![]()
Logistics & Support
-
Delivery: 15‑20 days after deposit.
-
Training: Free online training for your technical team.
-
Spare parts: Shipped within 48 hours globally.
-
Warranty: 3 years parts & labor, lifetime technical support.

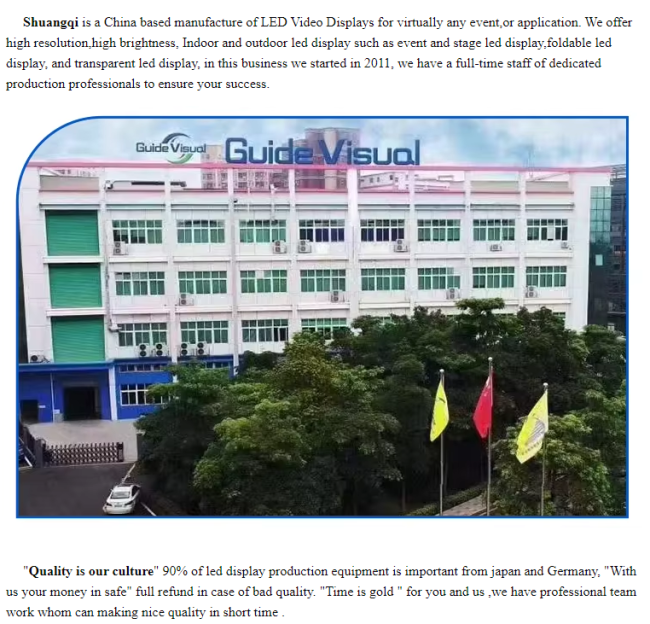

About Guide Visual

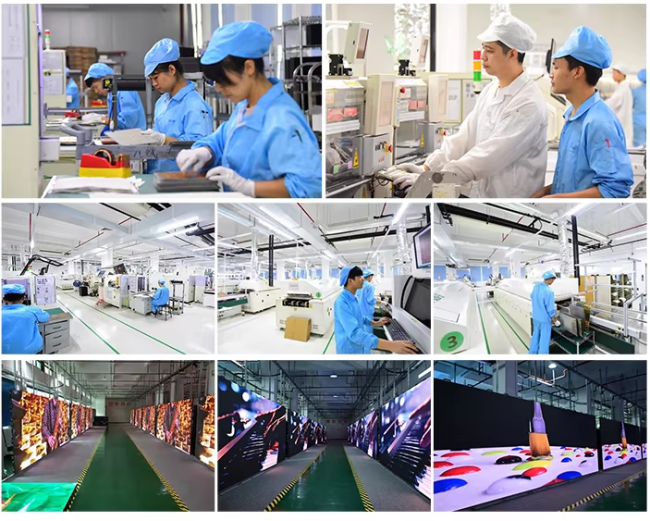

Guide Visual has been manufacturing LED displays since 2011. We own our factory, our molds, and our quality control. 90% of our production equipment comes from Japan and Germany.
Our promise: If quality fails, you get a full refund. No fine print.
We help rental companies scale with reliable, repairable, and road‑tested LED products.
Get a Quote for Your Next Event
Tell us your size, location, and application. We’ll reply within 24 hours with a DDP price and delivery plan.
