Guide Visual Rental LED Display – P1.9 P2.6 P2.97 P3.91 Outdoor Indoor Waterproof Video Wall Panel for Stage Event
G10 Series Outdoor Event LED Display – Built for the Stage, Trusted for the Road
Reliable, rapid‑deploy LED rental solution for outdoor concerts, festivals, and touring productions.
Why Event Professionals Choose G10
When you’re setting up for a 10,000‑person festival or a multi‑city tour, every minute counts. The G10 series was designed from the ground up to solve the three biggest rental headaches: setup speed, on‑stage reliability, and transport durability.
Here’s how.
1. 60% Faster Setup with Tool‑Free Engineering
No loose cables. No hunting for tools. Each cabinet uses an integrated hardwired structure – the control box, HUB board, receiving card, and modules lock into place by hand. A single technician can assemble a 50㎡ wall in under two hours.
What that means for you: Lower labor costs, more sleep, and fewer stressed crew members.
2. Zero‑Risk Redundancy (Because “Almost Stable” Isn’t Good Enough)
Live broadcast cameras don’t forgive black screens. The G10 series eliminates the risk with:
| Redundancy Type | How It Works | Benefit |
|---|---|---|
| Power Backup | N+1 current‑sharing design – two power supplies per cabinet | One fails, the other instantly takes over – no flicker, no blackout |
| Signal Backup | Dual RJ45 ports per cabinet | Signal automatically reroutes if a cable or port fails |
Result: Your show stays on, even when equipment doesn’t.
3. Built to Travel: Lightweight, Strong, Weatherproof

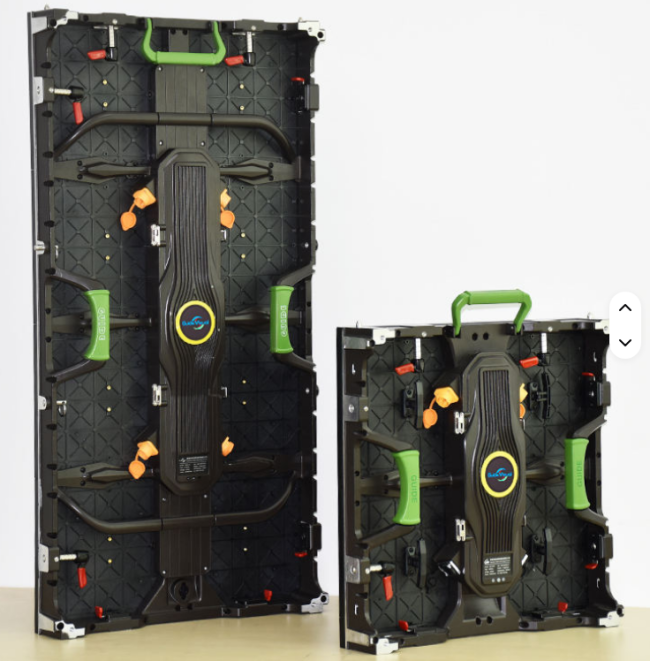

| Cabinet Size | Weight | Stackable Height | IP Rating |
|---|---|---|---|
| 500×500mm | 7.5 kg | Up to 10m | IP65 (full dust/rain protection) |
| 500×1000mm | 12.5 kg | Up to 10m | IP65 |
Die‑cast aluminum construction resists dents from road cases and truss bumps. The matte black finish reduces reflection under stage lighting.
Operating range: -40°C to +40°C, 10%‑90% humidity – works in desert heat or mountain rain.
4. One Screen, Many Events – Full Pitch Range
| Model | Pixel Pitch | Pixel Density | Best Use |
|---|---|---|---|
| G10‑P2.6 | 2.604 mm | 147,456 dots/㎡ | Close‑view luxury events, corporate galas |
| G10‑P2.9 | 2.976 mm | 112,896 dots/㎡ | Mid‑size concerts, theater productions |
| G10‑P3.9 | 3.91 mm | 65,536 dots/㎡ | Outdoor festivals, stadium screens |
| G10‑P4.8 | 4.81 mm | 43,264 dots/㎡ | Large‑format advertising, high‑impact distance viewing |
All models share the same cabinets, rigging, and accessories – you can mix pitches within the same screen or upgrade your fleet without replacing everything.
5. Visual Performance That Wows Audiences (and Camera Operators)
-
7680Hz refresh rate – no scan lines, even under 4K broadcast cameras
-
4500‑5000 nits brightness – sunlight‑readable, yet dimmable for night shows
-
160°/160° viewing angle – consistent color from any seat
-
16‑bit grayscale – smooth gradients, no banding in sky or skin tones
6. Complete Rental Support – Not Just Panels
We know that a successful event needs more than LED tiles. Guide Visual provides:
-
Stage trusses, rigging beams, hanging hardware – matched to G10 cabinets
-
NovaStar video processors – pre‑configured for your screen size
-
On‑site installation guidance – remote or in‑person support
-
Spare parts kit – modules, receiving cards, power supplies included
You focus on the show. We focus on the screen
Application
Trust Guide Visual for the best in LED display technology, whether for outdoor digital screens, rental LED screens, or flexible displays for your next project.
Package
Flightcase for 500*500mm cabinets Flightcase for 500*1000mm cabinets
Our Compnay
Guide Visual is a China based manufacture of LED Video Displays for virtually any event, or application. We offer high resolution, high brightness, Indoor and outdoor led display such as event and stage led display, foldable led display, and transparent led display.
"Quality is our culture" 90% of led display production equipment is important from japan and germany,
Why Choose Us
Get a Quote for Your Next Event
Tell us your required size, pixel pitch, and event dates. We’ll send a DDP quote, delivery plan, and case studies from similar productions – within 24 hours.
