Product Description
25KVA High-Efficiency Medium Frequency Portable Induction Heating Machine
Product Description
Frequency conversion electromagnetic induction heating (or induction heating) is a method for heating metal materials by converting power frequency power supply into a specific range based on the principle of electromagnetic induction. This technique is primarily applicable to metal hot working, heat treatment, welding, and melting. It is also used in packaging (such as sealing aluminum foil in medicine and food industries) and semiconductor material processing (such as extruded monocrystalline silicon and heating affixed metal parts for auto glass).
Key Features
- Advanced MOS and IGBT frequency conversion control technologies ensure high efficiency and maximum output power.
- Constant current and power control function optimizes metal heating processes for efficient, rapid heating.
- Three-stage time setting (heating, heat preservation, cooling) with independent power regulation for each stage.
- Ten types of fault protection including over-current, over-voltage, water shortage, and phase missing detection.
- Safe operation without requiring high-voltage equipment.
- Full load design allows for 24-hour continuous operation.
- Ultraviolet temperature detection enables automatic temperature control and simplifies manual operation.
Technical Parameters
| Material | Aluminum |
|---|---|
| Work Power | 340V-430V |
| Maximum Input Current | 42A |
| Output Power | 25KW |
| Fluctuating Frequency | 1-20KHz |
| Output Current | 200-1800A |
| Cooling Water Flow Rate | 0.08-0.16Mpa 9L/Min |
| Water Temperature Protection Point | 50°C |
| Product Size (Main Unit) | 620*280*550mm |
| Product Size (Transformer) | 560*295*470mm |
| Net Weight (Main Unit) | 37.5kg |
| Net Weight (Transformer) | 42.5kg |

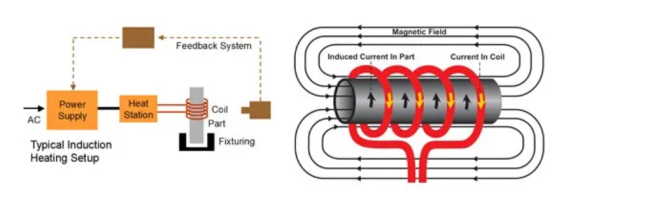

Induction Heating Work Principle
