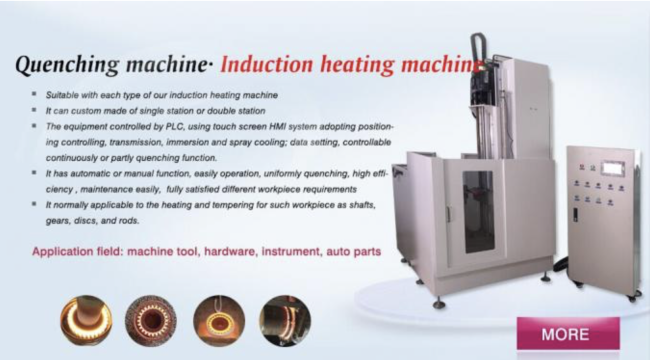

100kw Shaft Induction IGBT 50KHZ Heat Treatment Machine For Gears
100kw Shaft Induction IGBT 50KHZ Heat Treatment Machine For Gears
Machine Configuration
1, Ball screw, CNC cutting machine tools, total customize;
2, Guide selection of linear bearings, high precision, little friction, long life, Hard-chrome-plated anti-ability;
3, Lifting the weight balanced in part through the sprocket chain, Weight for casting scales mound;
4, Sink completely sealed, no infrastructure projects; stainless steel sliding doors, beautiful and generous;
Induction Heating Machine Equipment IF-100AB Parameter
| Model | IF-100AB (Three phase) |
| work power | 340V-430V |
| input current | 150A |
| output power | 100KW |
| fluctuating frequency | 30-80KHZ |
| output current | 400-4000A |
| the flow rate of cooling water | 0.08-0.16Mpa 10L/Min |
| water temperature protection point | 40C |
| product size | main : 820x600x1060 mm |
| transformer : 870x430x750 mm | |
| net weight | main : 110 kgs |
| transformer : 79.5 kgs |
Induction Heater After service
Q: Why choose our Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,
price,service,delivery time,we all have large advantage.
Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,
pass me workpiece material & size,Temperature requirement and heating time requirement.
Then we will recommend fit machine for you reference.
