Customizable XRF Sample Fusion Furnace With Automatic Casting
Price:
negotiation
MOQ:
1 set
Delivery Time:
7~15days
Brand:
InductionFusion
Product Description
Custom XRF Sample Fusion Furnace - Induction Fusion Sample Preparation Machine
Customizable XRF Sample Fusion Furnace with Automatic Casting and One-Year Warranty for Precise Centrifugal Rotation + Positive Reversal Mixing
This advanced induction fusion sample preparation machine is specifically designed for XRF analysis, providing precise and efficient sample preparation for analytical laboratories.
Equipment Overview
Equipment Name: Multi-function High-frequency Melting Machine
Model Number: IF-2SC

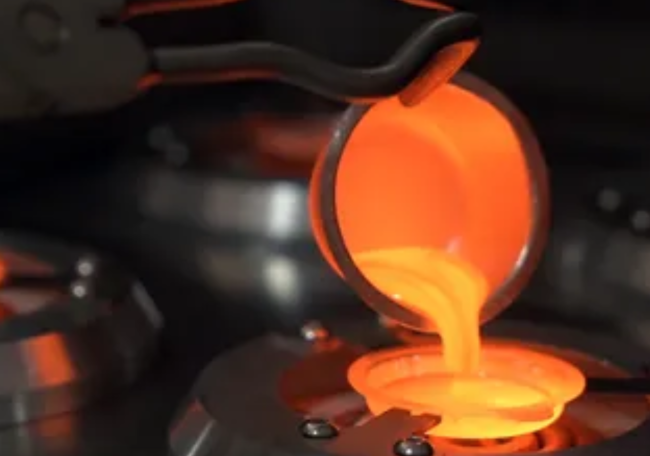

Casting Methods: Pot bottom forming, manual casting forming, and automatic casting forming (three options available)
Model Number: IF-2SC
Casting Methods: Pot bottom forming, manual casting forming, and automatic casting forming (three options available)
System Components
The XRF high-frequency melting system comprises four integrated components:
Heating System
Utilizes proprietary high-frequency power supply to create vortex induction heating on the platinum crucible.
Control System
Features touch screen display and data input with programmable controller (PLC) control. Stores at least 10 sample programs. Users can set melt parameters including current and time steps (oxidation, heating, constant temperature, rotation, forming) and initiate the process with a single start button.
Mechanical System
Automatic casting type with centrifugal variable speed rotation plus positive reversal mixing mode. This innovative swing mixing design holds national utility model patent (ZL201020155249.7).
Water Cooling System
Composed of water pump, water tank, and exhaust fan. Cooling water inlet temperature range: 5-45°C; inlet pressure range: 0.1-0.3MPa. Ensures reliable operation of electrical components.
Key Equipment Features
- Easy operation: No preheating required, reaches 1000°C+ from room temperature in 30 seconds
- Rapid sample preparation: Approximately 10 minutes per batch, 24-hour continuous operation
- One-click switching system for XRF, AA, and ICP sample preparation
- Safety and environmental protection: Built-in exhaust fan eliminates gases and minimizes thermal radiation
- Mold forming: Reduces crucible maintenance rate
- Low operating costs: No consumables or regular heating component replacement
- Energy efficient: Direct heating of crucible and mold only
- Minimal platinum usage: Small crucible and mold achieve high output
- Comprehensive protection: Water shortage, over current, over pressure, and over temperature safeguards
- Versatile forming options: Pot bottom, manual casting, and automatic casting configurations
Technical Specifications
| Unit Type | IF-2SC |
| Work Power | AC220V/50Hz |
| Maximum Output | 0-6KW (fused and molded power supply output power) |
| Oscillation Frequency Range | 50KHz-80KHz |
| Current Regulation Range | 35A-130A |
| Time Adjustment Range | 0s-999s |
| Forming Mode | Hand cast molding |
| Sample Production per Batch | 2 |
| Sample Preparation Speed | 10 min/batch |
| Cooling Water Pressure | 0.1-0.3MPa |
| Program Storage | More than 10 groups |
| Fusion Temperature | 0-1300°C (adjustable) |
| Temperature Control Accuracy | ±1°C |
| Stirring Method | Centrifugal rotation + positive reversal (patented) |
| Rotational Speed Range | 0-180 rpm/min (adjustable) |
| Speed Change Period | N. times/min (adjustable) |
| Infrared Temperature Measurement Range | 400°C-1200°C |
| Main Dimensions (L×W×H) | 1120×640×650mm |
| Host Net Weight | 175kg |
| Tank Shape Size | 800×540×980mm |
| Water Tank Net Weight | 90kg |
Analytical Applications & Sample Preparation
XRF Spectrometers in Analytical Applications
X-ray fluorescence (XRF) spectrometers detect elemental composition of various materials, playing a key role in scientific research, quality control, and industrial applications.
Importance of Sample Preparation
High-quality sample preparation is critical for accurate chemical analysis with XRF. Proper preparation of powders, fused beads, solid samples, or liquids ensures accurate and reproducible results.
Advanced Fusion Method
Fusion involves dissolving oxidized samples at high temperatures in a suitable solvent (flux) in platinum, zirconium, or graphite crucibles. The molten mixture forms glass disks for XRF analysis or solutions for AA/ICP analysis.
Performance Benefits
Our Induction Fusion Machine delivers superior XRF analytical results through fast and excellent melt homogenization. Uniform heating ensures highly reproducible results, with fully customizable fusion parameters for precise sample preparation conditions.
