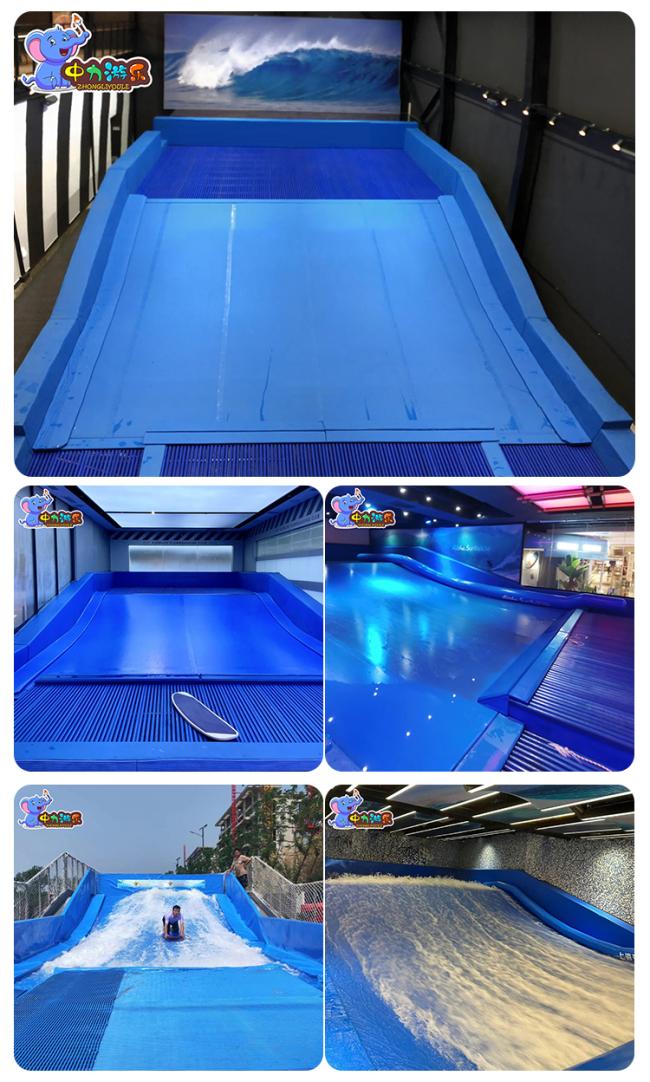

The Speed Wave Domain Surfing Simulator is a high-tech entertainment device that transcends water restrictions. Through powerful water jet technology, it recreates the impact of real ocean waves on land, allowing users to experience the ultimate thrill of surfing without having to go to the sea. It is suitable for use in entertainment venues, water parks, and commercial complexes.

The surfing simulator uses a high-pressure water jet system to generate continuous and controllable white waves. The wave height and flow rate can be adjusted to meet the dual needs of beginners for practice and experts for showmanship.

The surface of the surfing simulator is made of anti-slip and wear-resistant materials, combined with professional surfboards, to ensure smooth movements and safety and stability.

The equipment of the surfing simulator is equipped with professional guiding handrails on the side (as shown in the figure, the staff on the left). Beginners can use the ropes to maintain balance, and after becoming proficient, they can freely glide without holding the ropes.

Surfing simulator is surrounded by buffer cushions and fall-prevention designs, ensuring the safety of the user throughout the process.

The surfing simulator equipment features a main color of ocean blue, blending seamlessly with the blue sky and green plants as the background, creating a refreshing and dynamic outdoor atmosphere.

The modular structure design of the surfing simulator enables it to flexibly adapt to various scenarios such as scenic spots, shopping malls, and beaches, quickly attracting a large number of visitors.

The intelligent water circulation system of the surfing simulator saves water and energy, and supports long-term continuous operation; modular components facilitate maintenance and reduce operating costs.

The production cycle of the equipment is 20 days, the installation cycle is 30 days, and the operating power is 355-460kw.

Overall dimensions: 12 meters by 13 meters (with 5 pumps)

Weight: 15T - 25T

1. Single pump flow rate: 3000 - 4000 m3/h, head: 7 - 3.5 m
2. Submersible axial flow pump: 600QZ - 70 - 90 kw, 8-pole motor, rotational speed: 740 r/min
3. Voltage levels: 380V, 660V, 3KV, 6KV, 10KV
4. Protection level: IP68
5. Insulation level: F grade, H grade.

1. Sand tank Q650, Q = 16.5 m/h, pipe diameter interface 50mm PVC pipe, requires 750KG of quartz sand.
2. Water pump AS100, Q = 18 m/h, 0.75KW, maximum head = 12m, pipe diameter interface 50mm PVC pipe.
3. Filter material 1-2Mm.
4. All-plastic flow-through sterilizer UV2T-P, UV2T-P. 220V, Q = 2m3/h, lamp tube configuration 1 root 30W. Interface size 1 inch. Working pressure 0.6Mpa, height (mm):
5. Automatic dosing bucket can achieve automatic dosing, economical and convenient.

• Business and Entertainment
  Theme parks, water parks, interactive marketing in commercial squares
• Sports Training
  Surfing schools, sports centers training bases
• Event Planning
  Corporate team building, event organization, highlight projects for festivals

1. The experienced operation team provides full planning support.
2. The team consists of over 200 employees (including more than ten technical personnel).
3. The product quality complies with international industry standards.
4. The products are exported to over 10 countries worldwide (such as the US, Japan, Germany, UK, etc.).
5. One-stop solution.
6. More than 9,000 cooperative clients have expressed their approval.

1. Q: Can I get your product catalogue?
A: Of course. Please feel free to contact us at any time. We will immediately send you the latest product catalogue.

2. Q: Do you have your own design team?
A: Yes, we have an experienced professional design team. They can provide you with 3D design drawings for confirmation before production.

3. Q: How are the design and price determined?
A: The price depends on the area of the amusement zone, your specific design requirements, and the type of equipment selected. We will provide you with the design and quotation based on these factors.

4. Q: Will quality checks be conducted before shipment?
A: Yes, we have strict quality control (QC). Each product will be 100% inspected by the QC department before shipment.

5. Q: Are there any installation cases in our country?
A: We have collaborated with customers in over 100 countries around the world. We have successful cases in many countries and regions. You can request references from us.

6. Q: What is the complete cooperation process?
A: Consultation -> Provide requirements -> Obtain quotations and plans -> Confirm and pay the deposit -> Design confirmation -> Production and QC -> Pay the balance -> Delivery -> After-sales support.
