FH® Cantilever Furnace Rolls – Durable Heat-Resistant Rollers for Industrial Furnaces
FH® Cantilever Furnace Rolls Product Overview:
FH® Cantilever Furnace Rolls are engineered for high-temperature industrial environments where durability and reliability are critical. Made from premium heat-resistant steel, these overhung rolls ensure smooth operation in continuous and batch furnaces while withstanding extreme heat, heavy loads, and thermal cycling. Designed for both performance and longevity, FH® Cantilever Rolls are an essential component for modern industrial furnaces.
Key Features:
- High-Temperature Resistance: Withstand prolonged exposure to extreme temperatures while maintaining structural integrity.
- Durable Steel Construction: Crafted from FH®’s premium heat-resistant steel alloys for enhanced hardness and longevity.
- Precision Engineering: Manufactured to tight tolerances for smooth rotation and minimal operational vibration.
- Corrosion & Oxidation Resistance: Resistant to scaling and oxidation in harsh high-temperature environments.
- Customizable Sizes: Available in various diameters, lengths, and surface finishes to fit specific furnace designs.
Applications:
FH® Cantilever Furnace Rolls are widely used in:
- Continuous and batch heat treatment furnaces.
- High-temperature annealing, carburizing, and tempering processes.
- Aerospace, automotive, energy, and heavy machinery manufacturing industries.
- Specialized applications for stainless steel, alloy steel, and high-performance metals.
Why Choose FH® Cantilever Rolls:
- Improve furnace efficiency and product quality with stable roll performance.
- Reduce maintenance and operational downtime thanks to superior wear resistance.
- Ensure safer operation with high reliability under extreme conditions.
- Supported by FH®’s engineering expertise and global quality standards.
Material Grade Table:
| Heat-resistant Steel | |||||||||||||
| / | GB | DIN | ASTM | JIS | Chemical Composition (%) | Maximum Operation Temperature | |||||||
| C | Si | Mn | Cr | Ni | Nb/Cb | Mo | Other | ||||||
| 1 | ZG40Cr27Ni4 | 1.4823 | HD | SCH11 | 0.30 - 0.50 | ≤2.00 | ≤1.00 | 24.00 - 28.00 | 4.00 - 6.00 | - | ≤0.50 | - | 1050℃ |
| 2 | ZG40Cr22Ni10 | 1.4826 | HF | SCH12 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 19.00 - 23.00 | 8.00 - 12.00 | - | ≤0.50 | - | 950℃ |
| 3 | ZG30Cr28Ni10 | - | HE | SCH17 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 8.00 - 11.00 | - | - | - | 1050℃ |
| 4 | ZG40Cr25Ni12 | 1.4837 | HH | SCH13 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 27.00 | 11.00 - 14.00 | - | ≤0.50 | - | 1050℃ |
| 5 | ZG30Cr28Ni16 | - | HI | SCH18 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 14.00 - 18.00 | - | - | - | 1100℃ |
| 6 | ZG40Cr25Ni20Si2 | 1.4848 | HK | SCH21 | 0.30 - 0.50 | ≤1.75 | ≤1.50 | 23.00 - 27.00 | 19.00 - 22.00 | - | ≤0.50 | - | 1100℃ |
| 7 | ZG30Cr20Ni25 | - | HN | SCH19 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 19.00 - 23.00 | 23.00 - 27.00 | - | - | - | 1100℃ |
| 8 | ZG40Cr19Ni39 | 1.4865 | HU | SCH20 | 0.35 - 0.75 | ≤2.50 | ≤2.00 | 17.00 - 21.00 | 37.00 - 41.00 | - | - | - | 1020℃ |
| 9 | ZG40Cr15Ni35 | 1.4806 | HT | SCH15 | 0.35 - 0.70 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1000℃ |
| 10 | ZG40Cr25Ni35Nb | 1.4852 | HPCb | SCH24Nb | 0.30 - 0.50 | ≤2.00 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | 0.80 - 1.80 | ≤0.50 | - | 1100℃ |
| 11 | ZG40Cr19Ni39Nb | 1.4849 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 18.00 - 21.00 | 36.00 - 39.00 | 1.20- 1.80 | ≤0.50 | - | 1100℃ |
| 12 | ZG40Cr24Ni24Nb | 1.4855 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 23.00 - 25.00 | 23.00 - 25.00 | 0.80 - 1.80 | ≤0.50 | - | 1050℃ |
| 13 | ZG40Cr25Ni35 | 1.4857 | HP | SCH24 | 0.35 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1100℃ |
| 14 | ZG1Cr20Ni32Nb | 1.4859 | - | - | 0.06 - 0.15 | 0.50 - 1.50 | ≤2.00 | 19.00 - 21.00 | 31.00 - 33.00 | 0.50 - 1.50 | ≤0.50 | - | 1050℃ |
| 15 | ZG45Cr12Ni60 | - | HW | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 10.00 - 14.00 | 58.00 - 62.00 | - | - | - | 1100℃ |
| 16 | ZG45Cr18Ni66 | - | HX | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 64.00 - 68.00 | - | - | - | 1100℃ |
| 17 | ZG1Cr28Co50 | 2.4778 | - | - | 0.05 - 0.25 | 0.50 - 1.00 | ≤1.50 | 27.00 - 30.00 | ≤1.00 | ≤0.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 18 | ZG30Cr28Co50Nb | 2.4779 | - | - | 0.25 - 0.35 | 0.50 - 1.50 | 0.50 - 1.50 | 27.00 - 29.00 | - | 1.50 - 2.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 19 | ZG40Cr28Ni48W5 | 2.4879 | - | SCH42 | 0.35 - 0.55 | 1.00 - 2.00 | ≤1.50 | 27.00 - 30.00 | 47.00 - 50.00 | - | ≤0.50 | W:4.0 - 5.5 | 1200℃ |

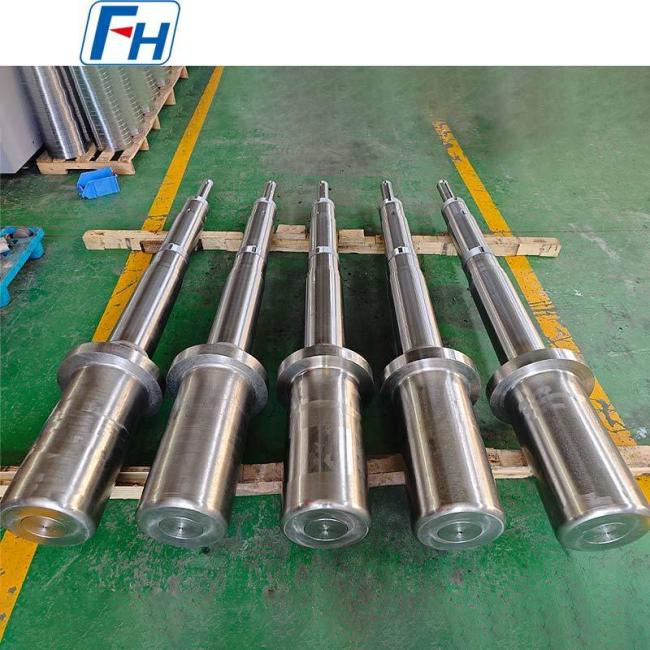

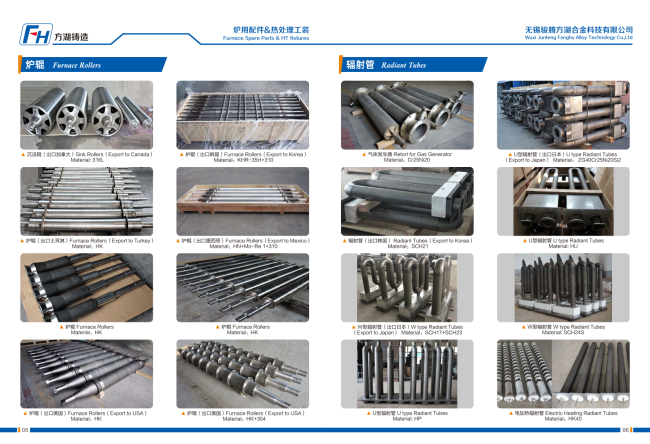

Genuine Photos of FH® Furnace Rollers
FAQ
Q1: What are FH® Cantilever Furnace Rolls used for?
A: For metal heat treatment in continuous and batch furnaces, including annealing, tempering, and carburizing.
Q2: What material are they made of?
A: Premium heat-resistant steel, durable and resistant to high temperatures, corrosion, and oxidation.
Q3: Can they handle high temperatures?
A: Yes, designed for extreme temperatures up to 1200℃.
Q4: Are they customizable?
A: Yes, available in various diameters, lengths, and surface finishes.
Q5: Which industries use them?
A: Aerospace, automotive, energy, and heavy machinery manufacturing.
Q6: How do they improve furnace performance?
A: Ensure smooth rotation, reduce maintenance, enhance efficiency, and improve product quality.
Q7: How to order FH® Cantilever Rolls?
A: Please contact our sales team via the contact details on our website to inquire about our consulting services and details regarding customized solutions.
