Heavy Load Railway Carriage Wagon Light Weight Mineral Wagon
Price:
60000-80000usd/unit
MOQ:
1unit
Delivery Time:
3-6months
Brand:
Railteco
Product Description
Railway 191 Covered Wagon - Light Weight, Heavy Load, Long Service Life
The 191 Covered Wagon is engineered for optimal performance with light weight construction, heavy load capacity, and extended service life.
Product Overview
This versatile wagon is designed for transporting goods that require protection from sun exposure, rain, and snow, as well as boxed and bagged cargo.
Key Characteristics
- Lightweight construction with heavy load capacity and extended service life
- Main material constructed from weather-resistant steel with strong corrosion resistance
- Side doors can be rearranged according to customer usage requirements
- Optional thermal insulation liners available based on customer specifications
Technical Specifications
| Specification | Value |
|---|---|
| Gauge | 1000mm |
| Load Capacity | 33t |
| Axle Load | 12t |
| Volume Capacity | 64m³ |
| Minimum Curve Radius | 60m |
| Maximum Operating Speed | 80km/h |
| Length | 12323mm |
| Center Distance of Core Plate | 7772mm |
| Maximum Width | 2600mm |
| Maximum Height (Unloaded) | 3330mm |
| Height from Track Surface to Coupler Center Line (Unloaded) | 584mm |

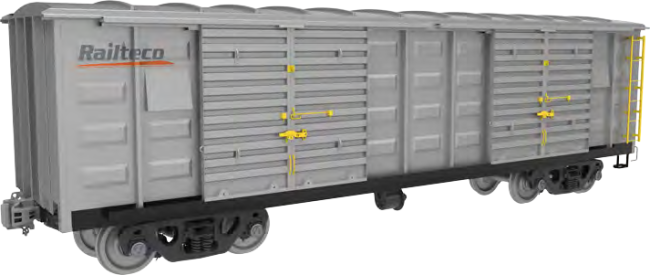

191 Covered Wagon Reference Photos
