1000mm Gauge Covered Goods Wagon Tanzania Steel Goods Train Wagon
Price:
60000-80000usd/unit
MOQ:
1unit
Delivery Time:
3-6months
Brand:
Railteco
Product Description
Life Stock Wagon Is Suitable For Operation On A 1000mm Gauge Railway In Tanzania
Product Overview
RTH46 Life Stock wagon is mainly composed of car body, bogie, air brake device, coupler buffer device, water supply device, food & water trough and so on. The car body is mainly composed of under frame, side wall, end wall, roof, partition wall, side door, etc., the wagon is equipped with wooden floor, Side wall and end wall is truss structure, Water tank is provided on the roof.
Key Characteristics
- Adopt MCA-DA coupler buffer device
- The "B" end of the wagon is the yoke, and the "A" end of the car is the hook
- The air braking system adopts UIC braking, which conforms to UIC 540 standard
- The bogie adopts three-piece casting steel bogie
- The wagon is equipped with wooden floor, Side wall and end wall is truss structure, Water tank is provided on the roof
Technical Specifications
| Tare weight | 23.5t |
| Gauge | 1000mm |
| Load capacity | 33t |
| Axle load | 18.5t |
| Min. Curve radius | 88m |
| Maximum Operating speed | 75km/h |
| Length | 20000mm |
| Length between truck pivot centers | 13850mm |
| Floor height (unloaded) | 1104mm |
| Coupler height (unloaded) | 585mm |
Primary Application
RTH46 Life Stock wagon is suitable for operation on a 1000mm gauge railway in Tanzania, and is mainly used for transporting cows, sheeps and camel etc.

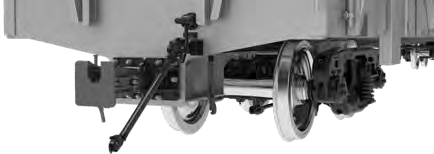

Life Stock Wagon Reference Photos
