23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon
Price:
60000-80000usd/unit
MOQ:
1unit
Delivery Time:
3-6months
Brand:
Railteco
Product Description

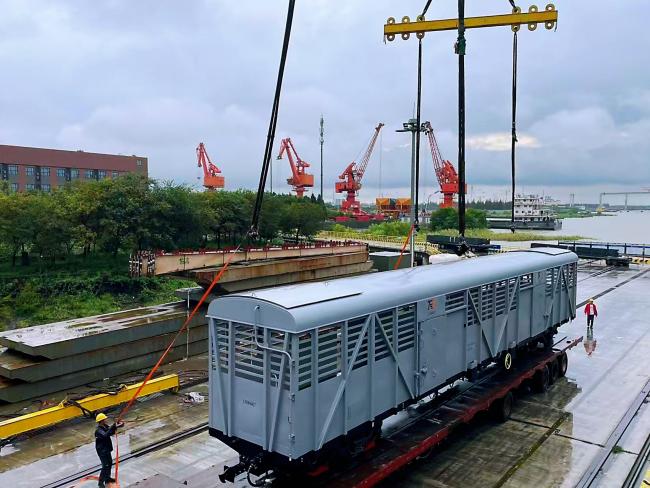

RTH46 Cattle Wagon For 1000mm Gauge In Tanzania
Product Overview
Designed specifically for 1000mm gauge railways in Tanzania, this livestock wagon is engineered for the safe and efficient transportation of cattle, sheep, camels, and other livestock. The wagon features an MCA-DA coupler and draft gear assembly with yoke at the "B" end and coupler head at the "A" end, and incorporates the UIC 540 standard air braking system for optimal operational safety. Supported by a three-piece cast steel bogie, it delivers stable and dependable running performance.
Key Characteristics
- Integrated robust car body, reliable bogie, air brake system, coupler and draft gear assembly
- Dedicated water supply system and specialized food & water troughs
- Car body structure includes underframe, side walls, end walls, roof, partition walls and side doors
- Wooden floor construction for enhanced durability
- Truss-structured side and end walls for superior structural strength
- Roof-mounted water tank for comprehensive livestock care
Technical Specifications
| Minimum Curve Radius | 88m |
| Maximum Operating Speed | 75km/h |
| Length | 20000mm |
| Length Between Truck Pivot Centers | 13850mm |
| Floor Height (Unloaded) | 1104mm |
| Coupler Height (Unloaded) | 585mm |
Reference Photos
