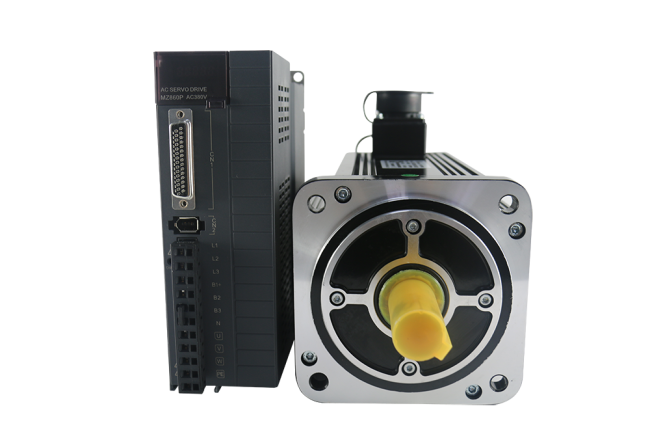

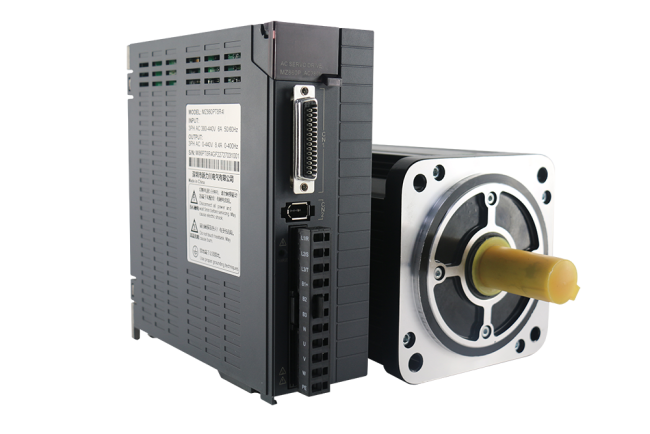

Lichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit Incremental
Lichuan 130M15025B+M2532P 3.8kw Servo Motor with Driver Kit 3phase Ac Servo Motor Driver 220V 15N.m 23 Bit Incremental AC Servo Motor Driver for CNC
| NO. | Item No. | Description | QTY |
| 1 | LCDA-3818C23-M2532P | Lichuan 3.8KW Servo Motor Driver | 1PC |
| 2 | LCMT-26MCC23NB-130M10025B | 130 Motor, 15N.m, 3.8KW, 2500rpm, 3phase 220v | 1PC |
| 3 | Lichuan Power cable | 3M servo power cable (Longer cable available) | 1PC |
| 4 | Lichuan Encoder cable | 3M servo encoder cable (Longer cable available) | 1PC |
| 5 | Lichuan Instruction book | Instruction book | 1PC |

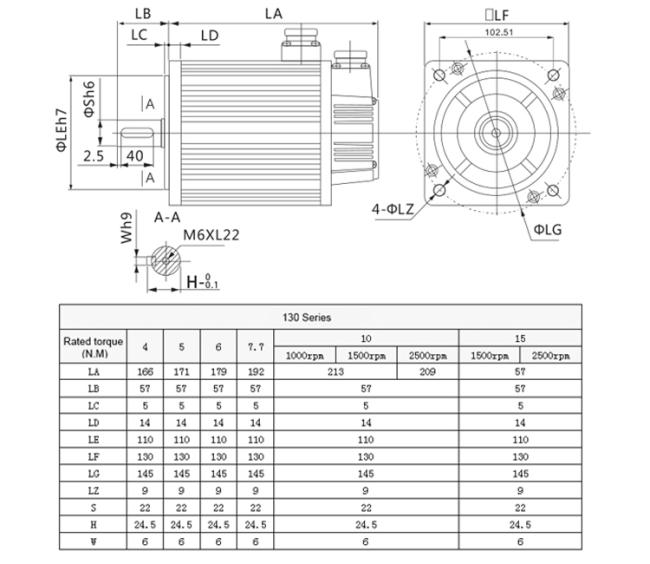

Product Name: 130 series AC servo motor
Lichuan 130 series AC servo motor contains 1KW, 1.3KW, 1.5KW, 2KW, 2.3KW, 2.6KW, 3.8KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and high temperature permanent magnet material , Servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high precision control applications.
| Motor Model |
LCMT-10L02-130M 04025 |
LCMT-13L02-130M 05025 |
LCMT-15L02-130M 06025 |
LCMT-20L02-130M 07725 |
LCMT-10L02-130M 10010 |
LCMT-15M02-130M 10015 |
LCMT-26M02-130M 10025 |
LCMT-23ML02-130M 15015 |
LCMT-38M02-130M 15025 |
| Rated Power (KW) | 1.0 | 1.3 | 1.5 | 2.0 | 1.0 | 1.5 | 2.6 | 2.3 | 3.8 |
| Rated Voltage (V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Rated Current (A) | 4.0 | 5.0 | 6.0 | 7.5 | 4.5 | 6.0 | 10 | 9.5 | 13.5 |
| Rated Speed(rpm) | 2500 | 2500 | 2500 | 2500 | 1000 | 1500 | 2500 | 1500 | 2500 |
| Peak Torque (N.M) | 4.0 | 5.0 | 6.0 | 7.7 | 10 | 10 | 10 | 15 | 15 |
| Holding Torque (N.M) | 12 | 16 | 18 | 22 | 20 | 25 | 25 | 30 | 30 |
| Voltage constant (V/1000r/min) | 72 | 68 | 65 | 68 | 140 | 103 | 70 | 114 | 67 |
| Torque coefficient(N.M/A) | 1.0 | 1.0 | 1.0 | 1.03 | 2.2 | 1.67 | 1.0 | 1.58 | 1.11 |
| Rotor inertia(kg.m2) | 0.85×10-3 | 1.06×10-3 | 1.26×10-3 | 1.53×10-3 | 1.94×10-3 | 1.94×10-3 | 1.94×10-3 | 2.77×10-3 | 2.77×10-3 |
| Phase Resistance(Ω) | 2.76 | 1.84 | 1.21 | 1.01 | 2.7 | 1.29 | 0.73 | 1.1 | 0.49 |
| Phase Inductance(mH) | 6.42 | 4.9 | 3.87 | 2.94 | 8.8 | 5.07 | 2.45 | 4.45 | 1.68 |
| Mechanical time constant (Ms) | 2.32 | 2.66 | 3.26 | 3.80 | 3.26 | 3.93 | 3.36 | 4.05 | 3.43 |
| Weight (KG) | 7.7 | 8.2 | 8.9 | 10 | 11.5 | 11.5 | 11.5 | 14.4 | 14.4 |
| Encoder line Number (PPR) | 2500 | ||||||||
| Insulation/Safety Classs | Class B ( (130℃) IP66 | ||||||||
| Operating Environment | Temperature:-20℃~+50℃ Humidity:Below <90%(No dewing) | ||||||||
| Motor winding | Winding lead wire | U | V | W | PE | ||||
| Plug serial number | 2 | 3 | 4 | 1 | |||||
LICHUAN servo driver is a new generation of high performance, high stability products, support speed, position, torque and three mixed mode, increase the semi-automatic and automatic gain automatic tuning function, built-in MODBUS communication control function, can match more domestic servo Motor. Servo main IC using the United States Industry Instruments DSP all-digital chip, very low failure rate, adaptive drive 0.1KW ~ 26KW servo Motor.

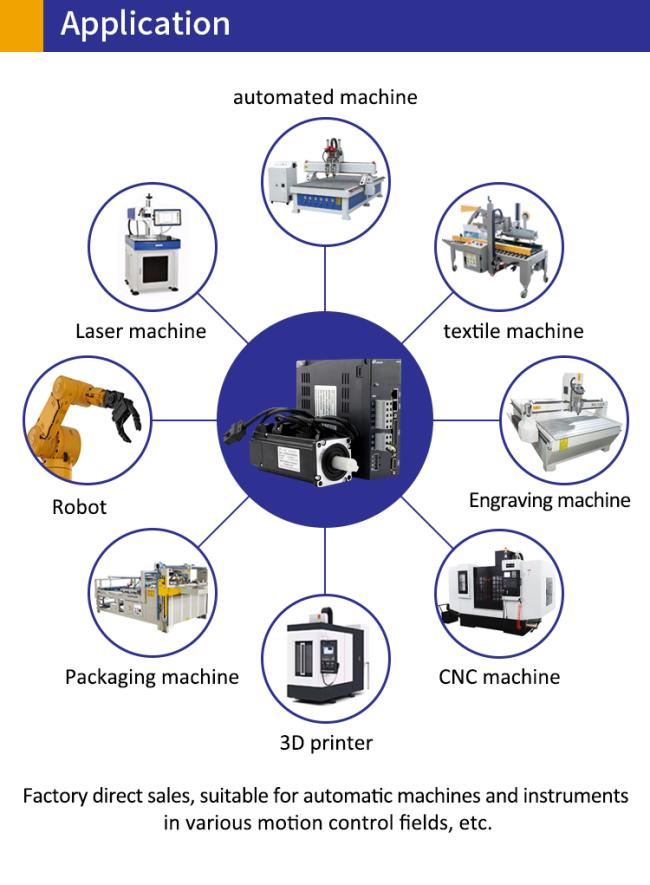

Suitable for a variety of sports control automation equipment and equipment, such as: mechanical arm, cutting machine, fuel injection machine, ultrasonic equipment, feeding equipment, printing equipment, medical equipment, packaging equipment, lithium battery equipment, CNC lathes, spraying equipment, Equipment and so on.
