China 2 Phase Lichuan Nema 42 Hybrid Stepper Motor Driver Kit Flange 110mm LC110-150+LC2722D for sale

2 Phase Lichuan Nema 42 Hybrid Stepper Motor Driver Kit Flange 110mm LC110-150+LC2722D

Price Negotiable
Price: $136.80-141.30 / set
MOQ: 1 set
Delivery Time: Negotiable
Brand: LICHUAN
Product Description




Packing List
NO.
Product Name
Model / Description
Quantity
1

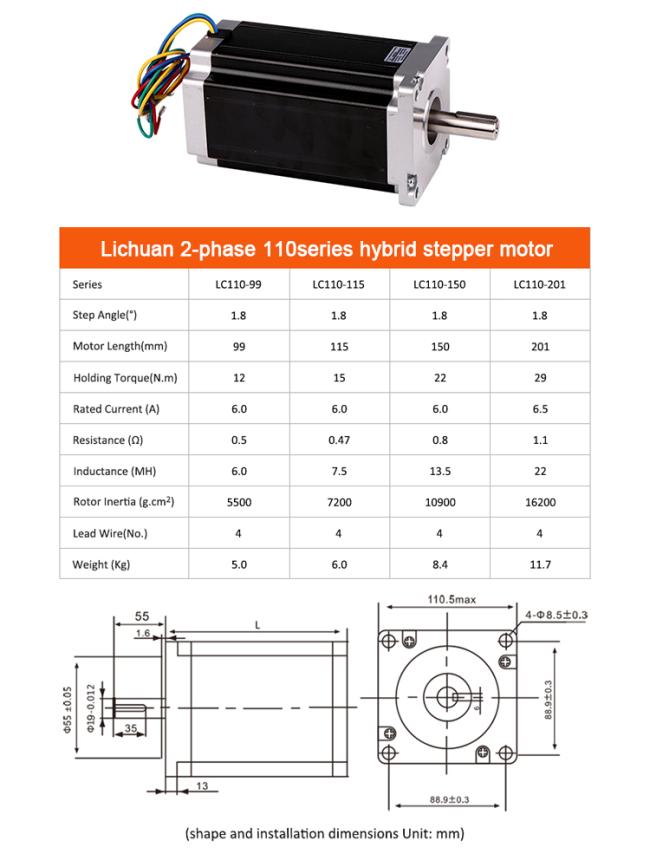

Lichuan 2ph Nema42 Hybrid stepper motor
LC110-150
1
2
Lichuan 2phase Nema42 driver
LC2722D
1
3
Motor Cable
Standard (0.5m) can make longer kindly contact us
1
5
Driver LC2722D Instruction Book
Standard
1
Products Description

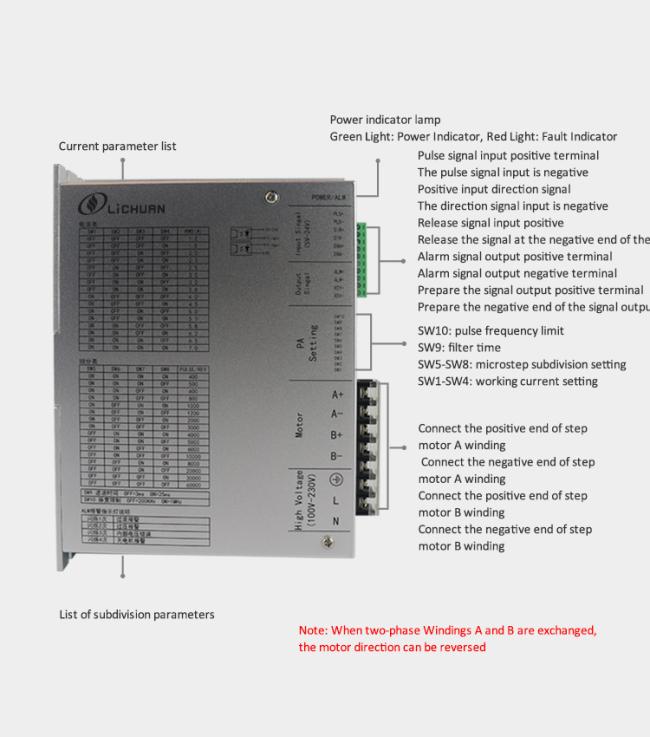

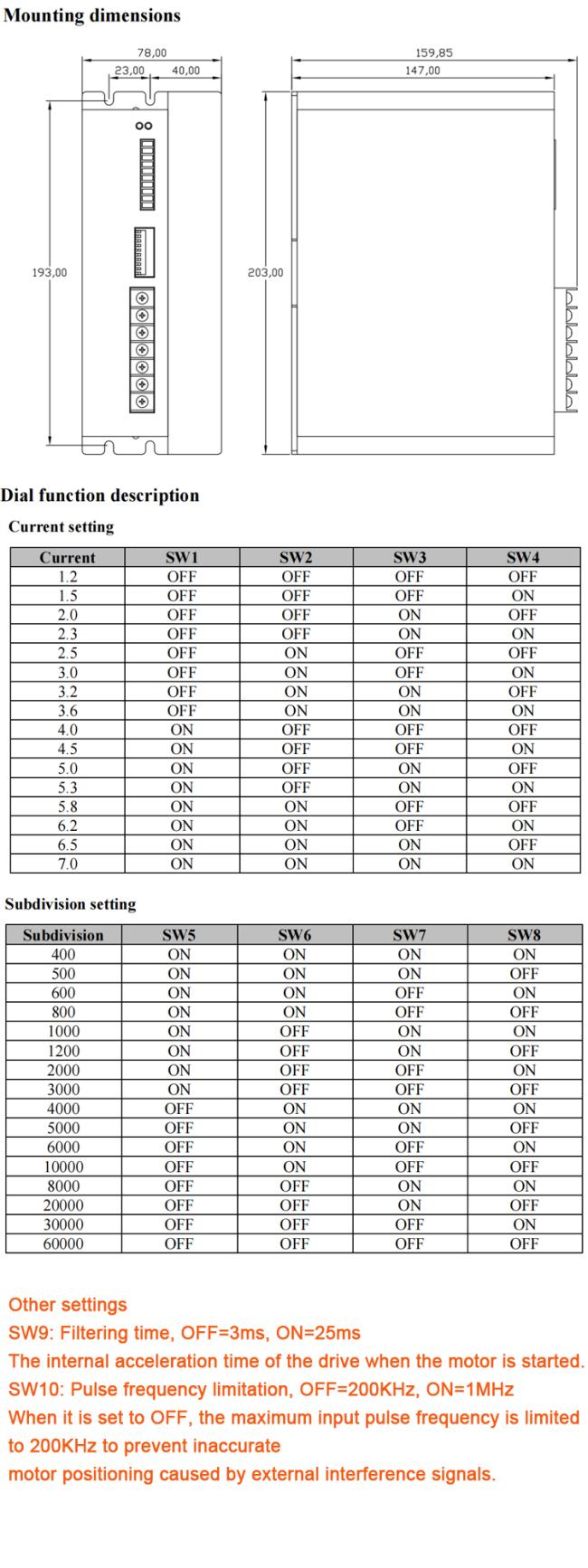

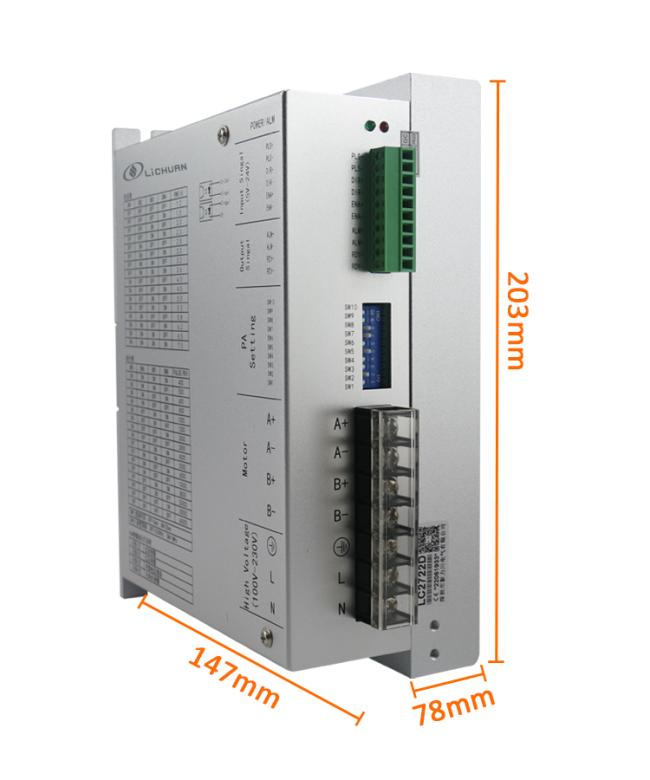

Lichuan 2-phase Hybrid Digital Driver

Drive Model:LC2722D
Storage temperature: -20℃～65℃
Voltage input range: AC110V～280V
Operating temperature: 0℃～50℃
Maximum peak current: 7.0A
Operating humidity: 40～90%RH (non-condensing)
Subdivision range: 400～60000ppr
Pulse form: pulse + direction (dual-pulse not supported)
Weight:1.26kg
Pulse response frequency: 0～1MHz
Application Area
Recommend Products

Certifications
Our Advantages
FAQ
