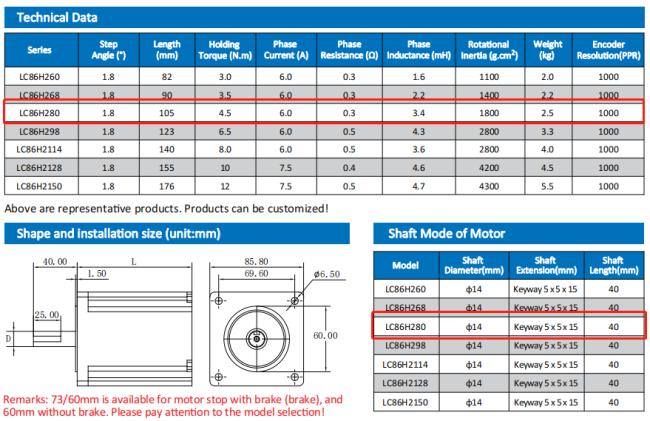

Lichuan Stepper Motor Nema 34 4.5N.m 6A 2 Phase Nema 34 Closed Loop Stepper Motor with Driver Kit LC86H280+LCDA808H

LCDA808H adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step

missing issues for open loop stepper motor,obviously improves motor performance at high speed, reduces heat generation

and vibration of motor, increases processing speed and precision of machine, decreases power consumption, applies to

2 phase Nema34 closed loop motors, has both stepper and servo advantages, low noise, strong anti-interference capacity,

is suitable for high speed, external digital debugging panel and easy parameter settings and monitoring.

Functional Characteristics

Voltage input range: AC50V~80V

Max peak current: 8A

Subdivision range: 200~51200ppr

Pulse response frequency: 200KHZ

Signal input: Differential/single terminal, pulse/direction

External digital debugging panel, easy parameter settings and monitoring.

Over-voltage, over-current, tracking error and out of error protection functions.

Closed loop vector control, assure high-speed large-torque output and no step missing of motor.

Serial port communication function, current, subdivision, signal edge and alarm output logic functions can be adjusted.
