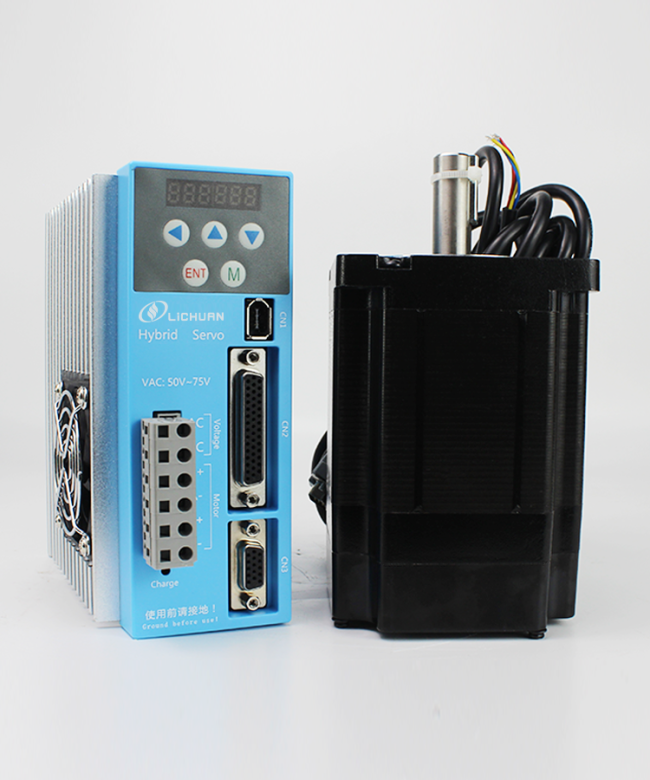

LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
Price:
$108.30-116.10 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Lichuan
Product Description
Packing List
NO. | Product Name | Model/Description | Quantity |
1 | Nema 34 closed loop stepper motor | LC86H2150 | 1 |
2 | Nema 34 closed loop stepper driver | LCDA808F | 1 |
3 | Driver encoder cable | Standard (3m) | 1 |
Products Description

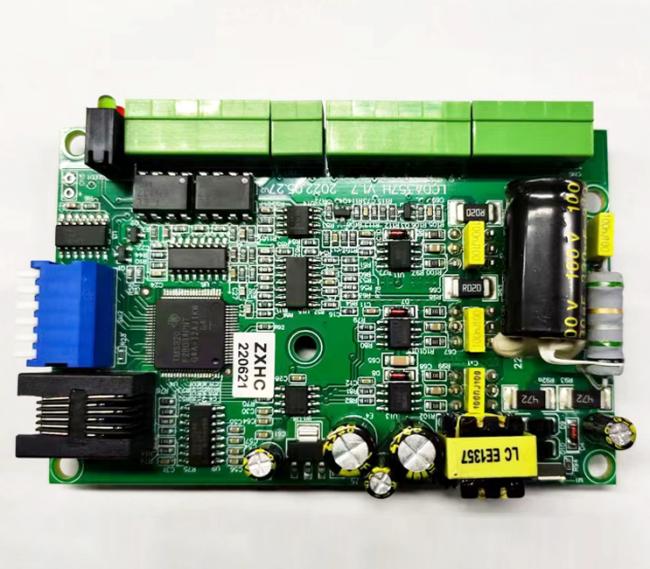

LCDA808F adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor, obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption, applies to 2 phase Nema34 closed loop motors, has both stepper and servo advantages, low noise, strong anti-interference capacity, is suitable for high speed, external digital debugging panel and easy parameter setings and monitoring.

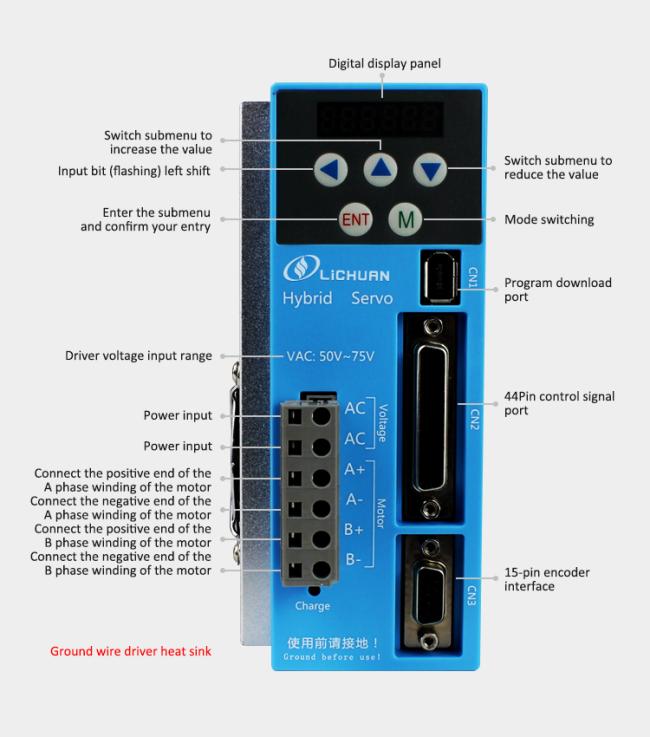

Lichuan 2 Phase Digital Hybrid Servo Driver | ||
Product Model | LCDA808F | |

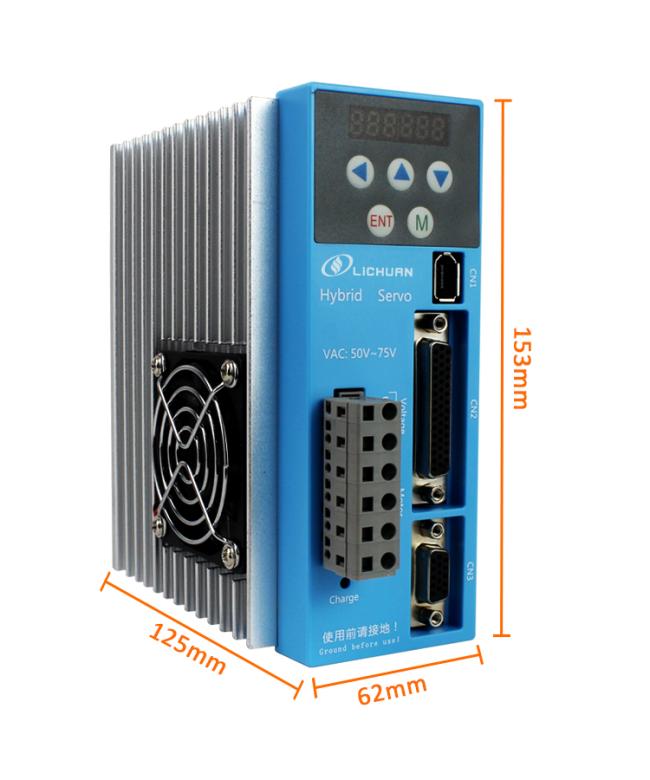

Product Size | 125*62*153mm | |
Voltage input range | AC50V~80V | |
Max peak current | 8A | |
Subdivision range | 200~51200ppr | |
Pulse response frequency | 200KHZ | |
Pulse form | Pulse + direction,CW/CCW | |
Match for Motor
2 Phase Nema 34 Closed Loop Stepper Motor | ||
Motor | LC86H2150 | |
Step Angle (°) | 1.8 | |
Length (mm) | 176 | |
Holding Torque (N.m) | 12 | |
Phase Current (A) | 7.5 | |
Weight(kg) | 5.5 | |
Encoder Resolution(PPR) | 1000 | |
