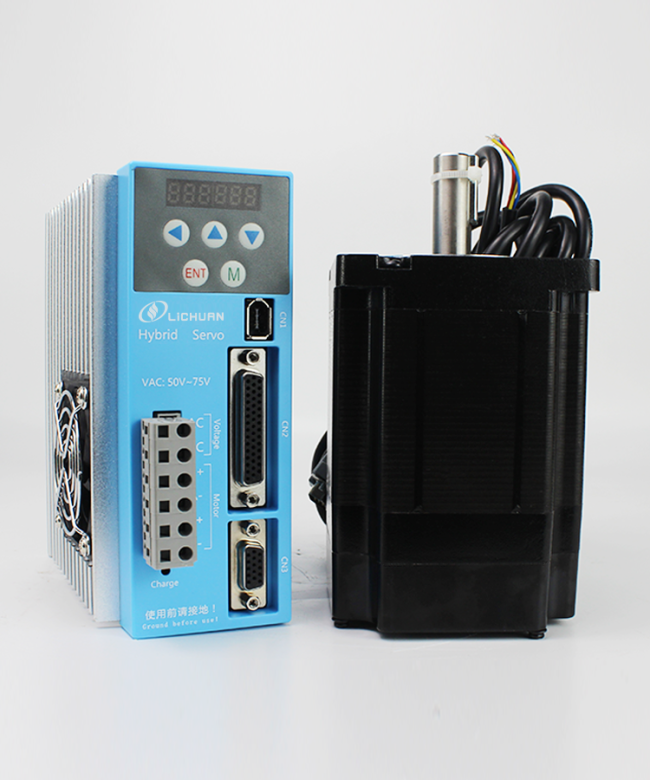

LICHUAN Motor Stepper 6.5 N.m 2 Phase Nema 34 Closed Loop Stepper Motor Driver Kit LC86H298+LCDA808F

Price Negotiable

Price: $92.70-101.70 / set

MOQ: 1 set

Delivery Time: Negotiable

Brand: LICHUAN

Product Description

Packing List

NO.	Product name	Model / Description	Quantity
1	Lichuan Nema34 closed loop stepper motor	LC86H298	1
2	Lichuan closed loop stepper driver	LCDA808F	1
3	Encoder Cable direct connection	Standard(3m)	1

Products Description

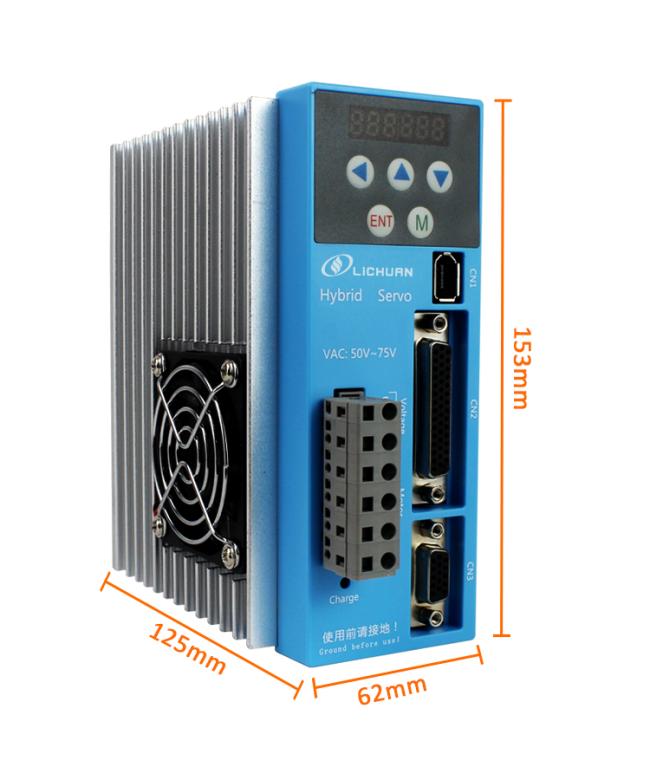

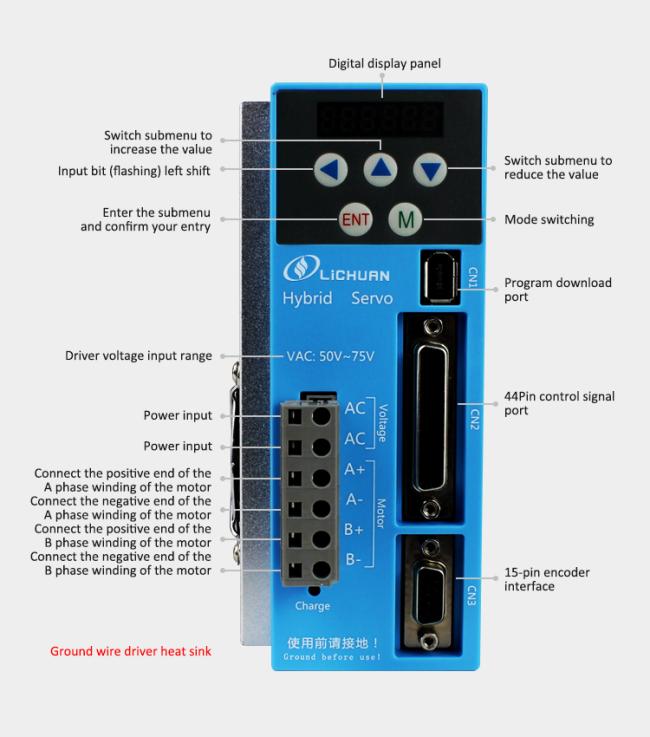

LCDA808F adopts the latest special motor control DSP chip and vector closed loop control technology,

completely solves step missing issues for open loop stepper motor,obviously improves motor performance at high speed, reduces heat generation and

vibration of motor, increases processing speed and precision of machine, decreases power consumption, applies to 2 phase Nema34 closed loop motors, has both stepper and servo advantages.

Parameter	Drive Details
Match Motor recommend	Nema34 closed loop stepper motor
Voltage Input range	AC50V~80V
Max peak current	8A
Subdivision range	200~51200ppr
200KHZPulse response frequency	2500PPR incremental
Signal input	Differen al/single terminal, pulse/direc on
Weight	1kg

Product Name	Nema 34 closed lopp stepper motor kit
Brand	LICHUAN
Type	LC86H298+LCDA808F
Step Angle(°)	1.8
Holding torque(N.m)	6.5
Phase Current(A)	6
Encoder Resolution(PPR)	1000
Length (mm)	123
Shaft Length(mm)	40
Encoder Resolution(PPR)	1000
Shaft Diameter(mm)	φ14
Motor Weight(kg)	3.3

Application Area

Recommend Products

Certifications

Our Advantages

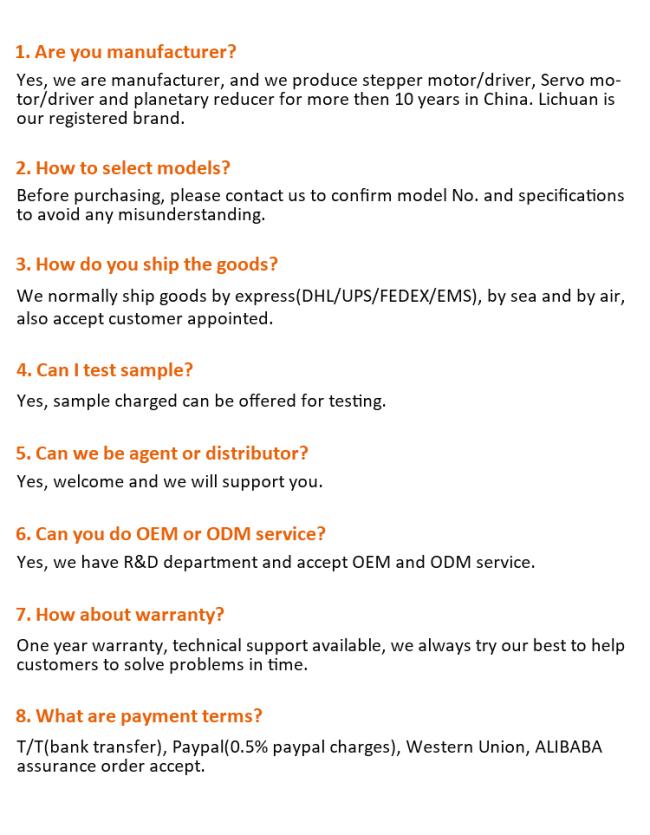

FAQ
