12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller
Nema 34 closed loop Motor 10N.m 3phase closed loop stepper motor with driver controller for AC 220V with digital display
| NO. | Item No. | Description | QTY |
| 1 | LCDA2260E | 3 phase closed loop digital stepper motor driver | 1PC |
| 2 | LC86H3156 | 3 phase 10NM NEMA34 Closed-loop stepper motor | 1PC |
| 3 | Encoder cable | 3M Encoder cable (Longer cable available) | 1PC |
>>>3 phase 10NM NEMA34 Closed-loop stepper motor/ LC86H3156 information
Three-phase 86 series closed-loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems, while significantly enhance the motor high-speed performance, To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%. Motor length 129mm ~ 156mm between the torque range: 9N.m ~ 12N.m

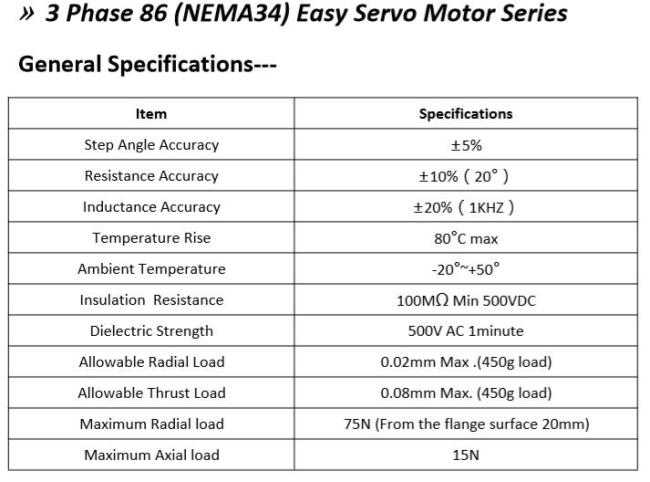

Lichuan 3 phase 10NM NEMA34 Closed-loop stepper hybrid motor specification:
>>>Lichuan 3 phase NEMA34 digital Closed-loop stepper motor drive /LCDA2260E information
LCDA2260E using the latest dedicated motor control DSP chip and vector closed-loop control technology, completely overcome the open-loop stepper motor stepped the problem, while significantly enhance the motor high-speed performance, reduce motor heating and reduce motor vibration, improve machine processing speed and accuracy, Machine energy consumption. This drive is suitable for motor mounting size compatible with 86/110 series stepper motor, to facilitate the traditional step-by-step drive program upgrade, significantly reduce costs.
3 phase NEMA34 digital Closed-loop stepper motor driver /LCDA2260E specification:
Features:
1. Voltage input range: 150 ~ 230VAC
2. Quiescent current and dynamic current can be set at 0 ~ 6A
3. Closed-loop vector control to ensure that the motor high-speed high-torque output, while ensuring the motor does not lose step
4. Built-in sub-sub-low-speed low-level operation can also be very smooth
5. Parameter automatic setting function
6. Current dynamic control greatly reduces the motor heat, ultra-low vibration noise
7. External digital debugging panel for easy parameter setting and monitoring
8. Sub-adjustable range of 200 ~ 51200ppr, impulse response frequency up to 200KHZ
9. Serial communication function, current, subdivision can be adjusted, signal edge, alarm output logic and other functions adjustable
10. Closed-loop vector control to ensure that the motor high-speed high-torque output,
while ensuring that the motor is not lost step with over-voltage, over-current, tracking error tolerance
Main parameter :
1. Electrical indicators
|
Parameter/Vaule |
LCDA2260H |
|||
|
Minimum |
Typical |
Maximum |
Unit |
|
|
Max peak current |
- |
- |
6 |
A |
|
Input voltage |
150 |
220 |
230 |
VAC |
|
Logic input current |
7 |
10 |
16 |
mA |
|
Pulse frequency |
- |
- |
200 |
KHZ |

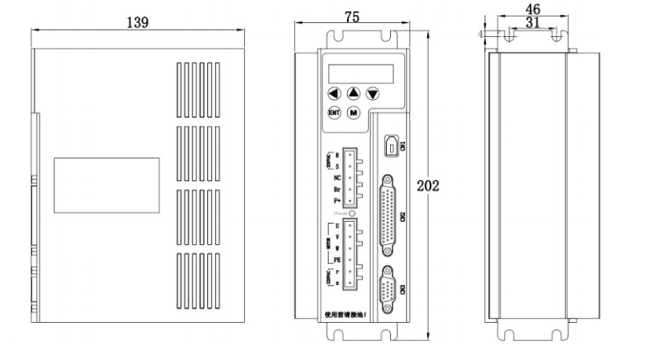

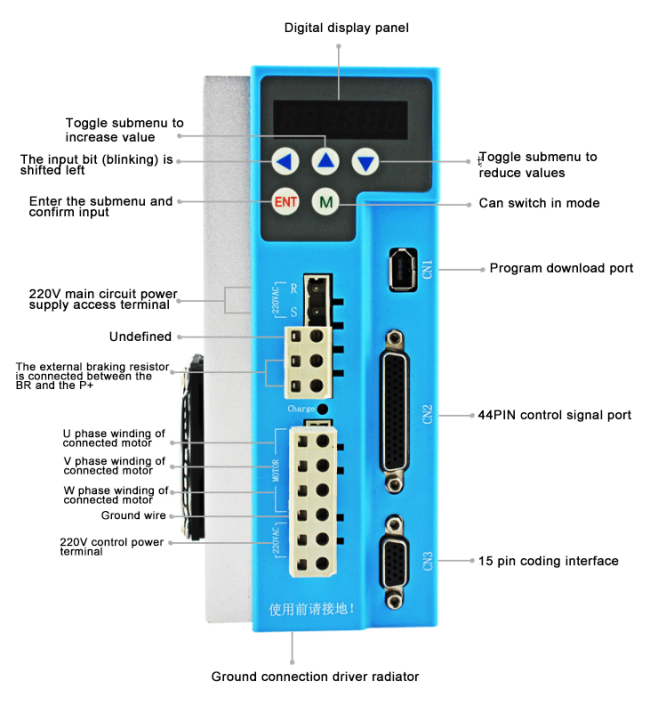

3 phase NEMA43 digital Closed-loop stepper motor driver /LCDA2260E size and wiring:
3phase Nema34 closed loop stepper motor wtih driver for AC 220V 12NM with digital disply for China CNC router kit

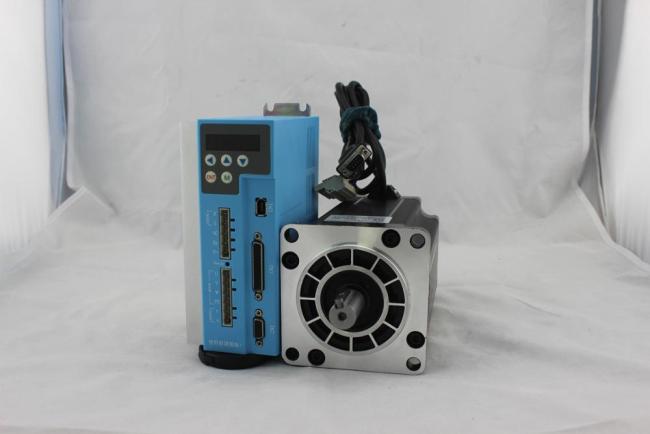

LCDA2260E+LC86H3156 pictures:
